stainless steel housing industrial large flow rate peristaltic pump
stainless steel housing industrial large flow rate peristaltic pump
stainless steel housing industrial large flow rate peristaltic pump
stainless steel housing industrial large flow rate peristaltic pump
Specifications
Warranty :
1 year
Customized support :
OEM
Brand Name :
Huiyu fluid
Model Number :
WT600L-1A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry, Metering
Horsepower :
600rpm
Power Source :
Electric
Pressure :
0.2Mpa, Low Pressure
Structure :
peristaltic pump
Voltage :
AC220V±20%
Power :
55w, Electric
Standard or Nonstandard :
Nonstandard
Theory :
Reciprocating Pump
product :
High precision liquid dispensing multi peristaltic hose pump
Brand :
Huiyu fluid
power supply :
AC 220V ±20%
Certification :
RoHS
Supply Ability :
100 Set/Sets per Week
Price :
$900.00 - $1,500.00/sets
Description

stainless steel housing industrial large flow rate peristaltic pumpml/min

Product Description

WT600L-1A/YZ35-13A

stainless steel housing industrial large flow rate peristaltic pump

stainless steel housing industrial large flow rate peristaltic pump

Max flow rate:12000ml/min

Product description

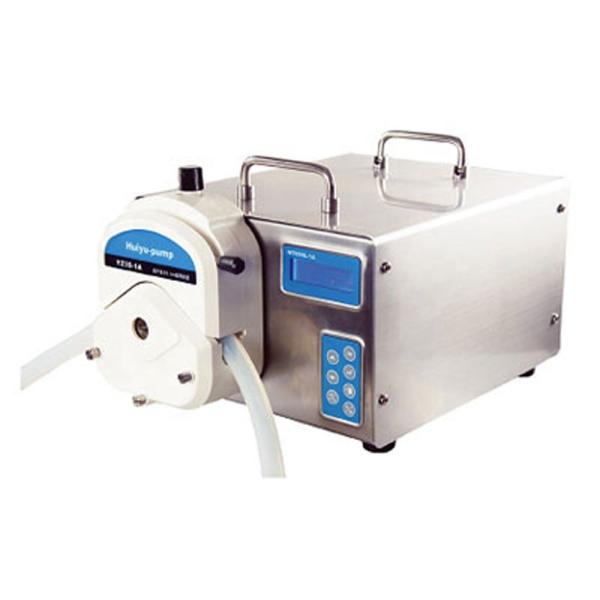

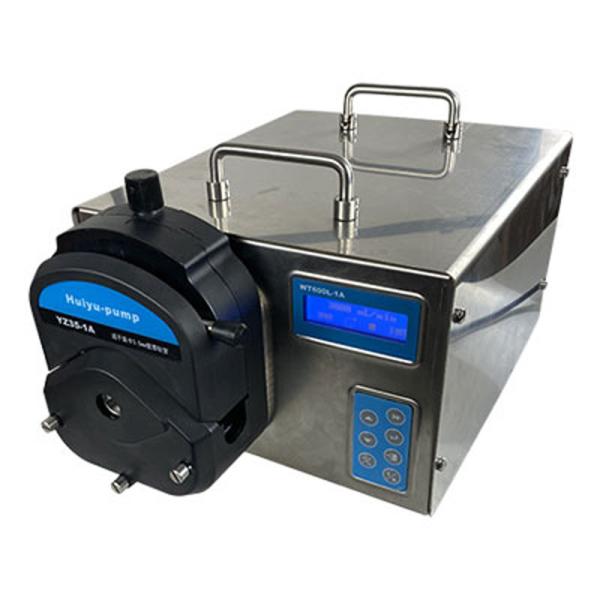

It is an industrial large-flow peristaltic pump. The body is made of stainless steel, driven by a DC motor, and is more powerful. It is mostly used in harsh industrial occasions. It has the characteristics of positive and negative, start-stop control, convenient speed adjustment, etc.; working speed 10-600 rpm; cascadable double pump heads, suitable for continuous and stable transmission of large flow in industrial sites

Features

Automatic correction function

Membrane buttons can control start and stop, direction and speed

Can quickly fill and empty function

It can communicate with the host computer

External control signal can control start and stop, direction and speed

Power-down memory function

Different pump heads can be replaced

Technical indicators

Speed range: 10-600rpm, resolution lrpm; direction reversible

Adjustment method: membrane button adjustment

Display interface: flow mode, speed mode

Display mode: graphic dot matrix liquid crystal display

Communication method: RS485 half duplex

External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)

Applicable power supply: 176-264V AC, 50/60Hz

Maximum power: 320W

Working environment: ambient temperature 0-40 ° C, relative humidity <100%

Dimensions: 352*291.4*195.5 (length × width × height) mm

Weight: 10kg

Protection level: IP31

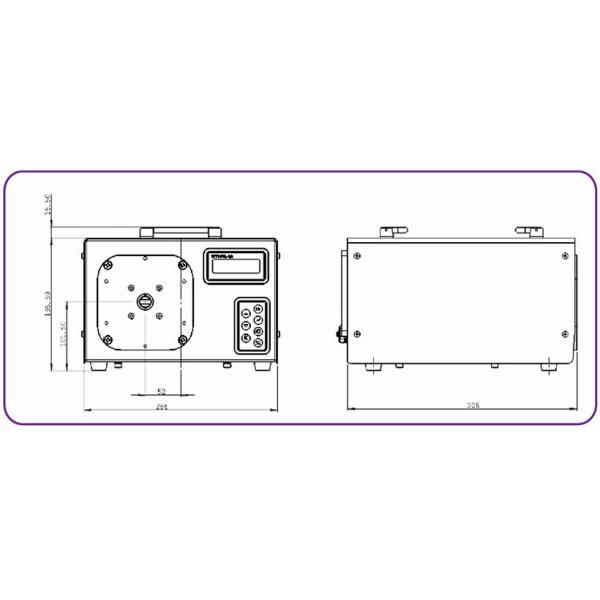

Dimensions

stainless steel housing industrial large flow rate peristaltic pump

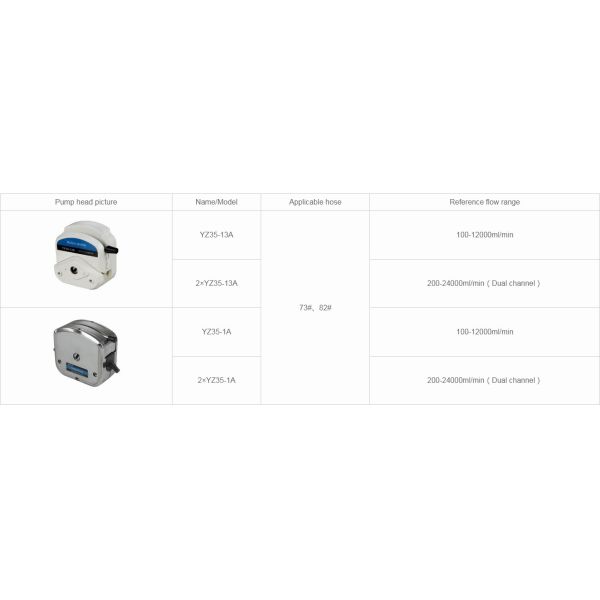

Suitable pump head

stainless steel housing industrial large flow rate peristaltic pump

OEM option

stainless steel housing industrial large flow rate peristaltic pump

Packaging & Shipping

stainless steel housing industrial large flow rate peristaltic pump

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

stainless steel housing industrial large flow rate peristaltic pump

Accessories

stainless steel housing industrial large flow rate peristaltic pump

CE certificate

stainless steel housing industrial large flow rate peristaltic pump
