Specifications
Warranty :
1 year
Customized support :
OEM
Brand Name :
Huiyu
Model Number :
WT600F-2A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry, wastewater treatment
Horsepower :
0.2
Power Source :
Electric
Pressure :
Low Pressure
Structure :
reciprocal
Cable Length :
1.5m
Outlet Size :
6.4mm
Voltage :
220v
Power :
40w
motor :
stepper motor
product :
Jam dispensing peristaltic pump
Brand :
Huiyu
flow rate :
0.7-6000ml/min
power supply :
AC 90V-260V/40W
motor speed :
10-600 rpm
dimension(LxWxH) :
285 X207 X 180 (mm)
Drive weight :
5.2 kg
Usage :
water,fluid,reagent,oil,detergent
Fuel :
electricity
Packaging Details :
1 peristaltic pump in 1 carton , with foam plastic
Port :
Beijing,Tianjin,Qingdao
Supply Ability :
100 Set/Sets per Week
Price :
$960.00/sets >=1 sets
Description

Jam dispensing peristaltic pump

Product Description

Jam dispensing peristaltic pump

Technical paremeter
Speed : 10-600 rpm, reversible
Speed precision: 1 rpm
Speed control: toggle switch and rotary encoded switch, accept external control and communication control
Display: LCD
Dispensing volume: 0.1 mL to 99.9 L
Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Copy number: 1 to 9999 , 0 means unlimited cycle
Pause time : 0.1 s to 99 min

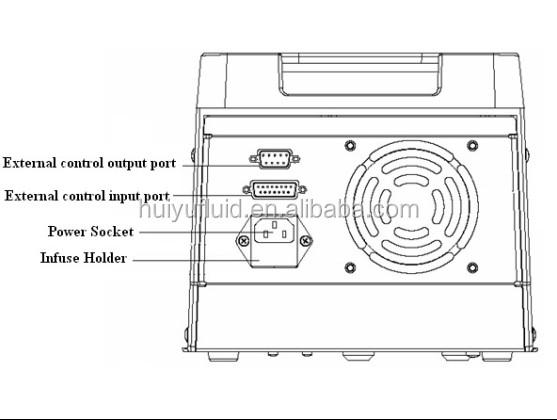

External control: start/stop control, direction control, speed control (0 - 5V ,0 -10V , 4 - 20 mA , 0 - 10KHz optional )
running mode signal output: 166.7Hz-10kHz
corresponding10rpm-600rpm
Start and stop status signal output: OC gate signal output
Direction status signal output: OC gate signal output
Communication interface: RS 485
Memory function: repower the pump, user can choose whether to continue in accordance with the state before the power-down
Prime button for fast filling and emptying
Power: AC 90V-260V/40W
Operating condition: Temperature 0 to 40°C, relative humidity < 80%
Dimensions (L × W × H): 285 × 207 × 180 (mm)
IP rating: IP 31
Drive weight: 5.2 kg

Technical parameters

Pump head Picture Pump head model Available tubing flow rate range (ml/min)
YZ15-1A 13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm 0.7-2200ml/min
2* YZ15-1A single channel 0.7-2200ml/min
YZ25-1A 15#,24# wall thickness 2.5mm 17-1600ml/min
2* YZ25-1A single channel 17-1600ml/min
BZ25-1A 24# wall thickness 2.5mm 29-1600ml/min
KZ25 15#,24#,35#,36# 34-6000ml/min

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

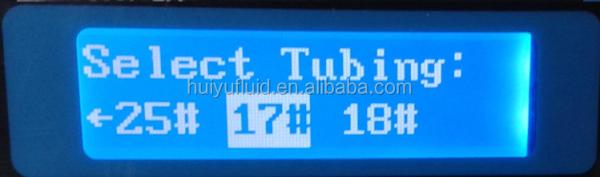

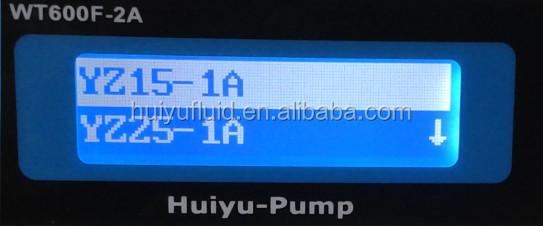

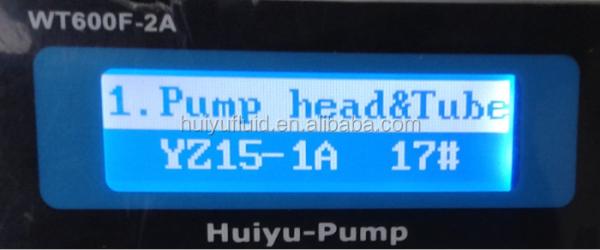

photo of the screen

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump

OEM option

Jam dispensing peristaltic pump

Accessories

Jam dispensing peristaltic pump

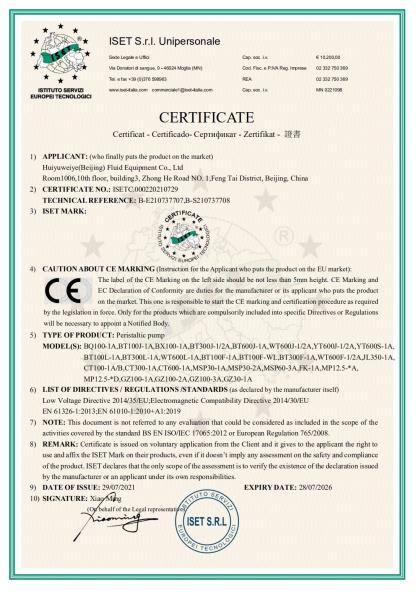

CE certificate

Jam dispensing peristaltic pump

Jam dispensing peristaltic pump
