Conventional Weave Belts With And Without Reinforcing Rods
Conventional Weave Belts With And Without Reinforcing Rods
Conventional Weave Belts With And Without Reinforcing Rods
Conventional Weave Belts With And Without Reinforcing Rods
Specifications
Brand Name :
cittimesh
Place of Origin :
China
MOQ :
Negotiable
Price :
2000-10000USD
Payment Terms :
L/C, T/T
Delivery Time :
Depends on the quantity of goods
Packaging Details :
wooden packing
product name :
Conventional Weave Belts
material :
Galvanized steel or stainless steel.
Description

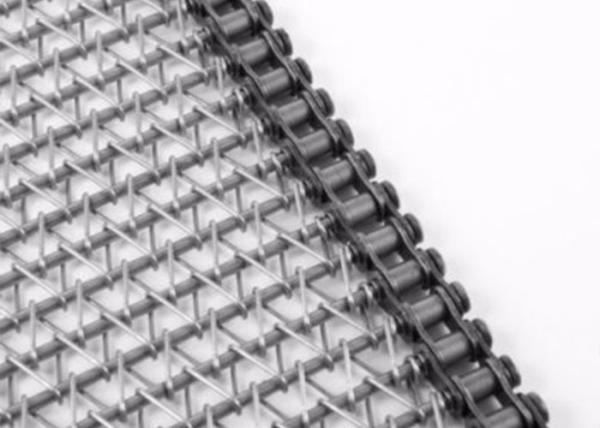

Conventional Weave Belts with & without Reinforcing Rods

Conventional weave conveyor belt as the simplest version of universal weave conveyor belt features right and left hand round wires twisted into each other similar to a diamond mesh wire cloth. This design provides large open area to enhance the efficiency of product washing and drying process.

As your request, rod reinforced belts are available with a rod through the intersection point of the spirals for added strength as shown in the following pictures:

Conventional Weave Belts With And Without Reinforcing Rods Conventional Weave Belts With And Without Reinforcing Rods

with Reinforcing Rods without Reinforcing Rods

Features:

  • Simple yet durable structure.
  • Large open areas with greater air circulation and fluid drainage.
  • Welded or bending edge.
  • Ideal for conveying lightweight products.
  • High tensile strength with minimal stretch.
  • Excellent resistance to high temperature.
  • Low thermal capacity.
  • Low cost.

Applications:

  • Transporting light products.
  • Oven, froster and frying equipment.
  • Annealing and cleaning facilities.
  • Wrapping machines.
  • Serving as metallic screen at lifting platforms.
  • Metal working industry even at a high temperature.

Details:

  • Material: carbon steel, SS 201, SS 304, SS 316.
  • Belt width: 200 mm to 5,000 mm.
  • Diameter of spiral round wire: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
  • Spiral pitch: 6 mm to 40 mm.
  • Rod pitch: 5 mm to 30 mm.
  • Belt opening: 1.5 mm to 25 mm.
