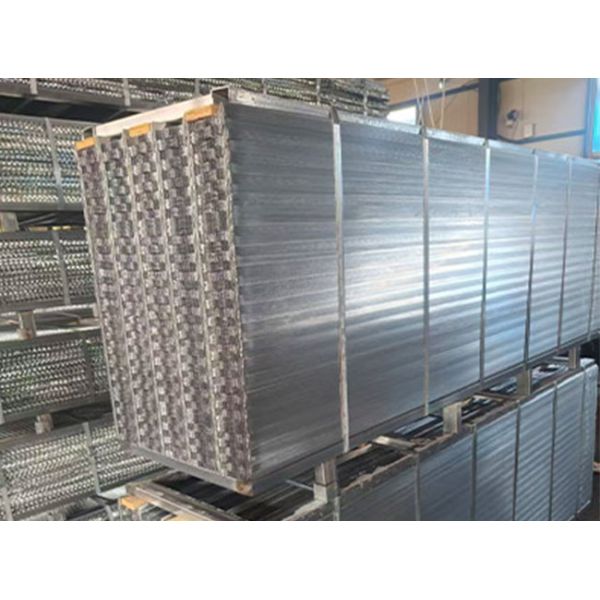

High Strength Rib Lath, Suitable For Plastering and Stucco Construction
High Strength Rib Lath, Suitable For Plastering and Stucco Construction
High Strength Rib Lath, Suitable For Plastering and Stucco Construction
High Strength Rib Lath, Suitable For Plastering and Stucco Construction
Specifications
Brand Name :
cittimesh
Place of Origin :
China
MOQ :
Negotiable
Price :
5000-10000USD
Payment Terms :
L/C, T/T
Delivery Time :
Depends on the quantity of goods
Packaging Details :
wooden packing
product name :
High Strength Rib Lath
Material :
Galvanized steel ( or stainless steel)
Weights :
1.48–3.60 kg/m2
Mesh size :
11 × 17 mm, 8.34 × 3.11 mm, 11.2 × 5.5 mm, 9.5 × 7.2 mm
Description

High Strength Rib Lath, Suitable for Plastering & Stucco Construction

Rib lath is made from galvanized (or stainless) steel strips that are slit, expanded, and drawn by specialized machinery, featuring V-shaped ribs for enhanced tensile strength. The longitudinal ribs ensure a consistent plaster depth over large and deep surfaces. It is widely used as a base for plastering and stucco construction on walls and suspended ceilings.

Specification

  • Material (Conforming to ASTM A653/A653M): Galvanized steel ( or stainless steel)
  • Weights: 2.75–6.70 lbs./yd2, 1.48–3.60 kg/m2
  • Mesh size: 11 × 17 mm, 8.34 × 3.11 mm, 11.2 × 5.5 mm, 9.5 × 7.2 mm
  • Sheet size: 27" × 97"
  • Packaging:
    • 10 pieces per bundle
    • 25 bundles per pallet
Table 1: Specification of Rib Lath
Model Weight Mesh Size Sheet Size Packing
lbs./yd2 kg/m2 mm inch Pcs./Bundle Bundles/Pallet
RL-2.75 2.75 1.48 11 × 17 27 × 97 20 25
RL-4.28 4.28 2.32 8.34 × 3.11
RL-3.40 3.40 1.83 11.2 × 5.5
RL-6.70 6.70 3.60 9.5 × 7.2
RL-6.10 6.10 3.30

Features

  • High strength and flexibility. V-shaped ribs enhance overall rigidity, allowing the lath to withstand concrete pouring pressure and distribute stress, preventing structural cracking.
  • Excellent permeability. It facilitates even application and firm bonding of plaster or mortar.
  • Durability. Made from galvanized or stainless steel, it is corrosion resistant and suitable for humid environments and outdoor projects.
  • Versatility. It functions both as form work support and permanent structural reinforcement, with a no-removal design that saves labor time.

Application

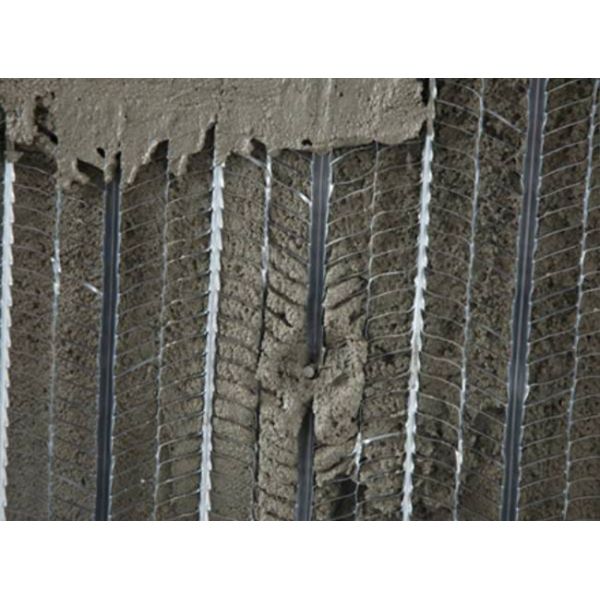

Made of expanded metal, rib lath is the ideal material as a background for plaster, render, stucco application in construction of suspended ceilings partition.

High Strength Rib Lath, Suitable For Plastering and Stucco Construction

High Strength Rib Lath, Suitable For Plastering and Stucco Construction
