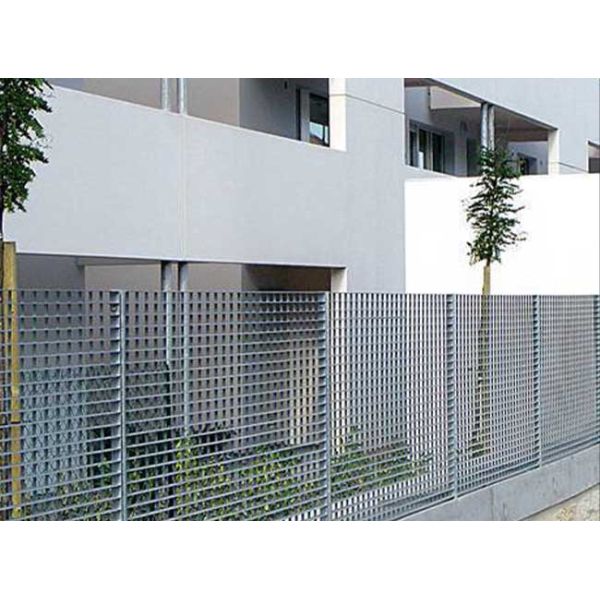

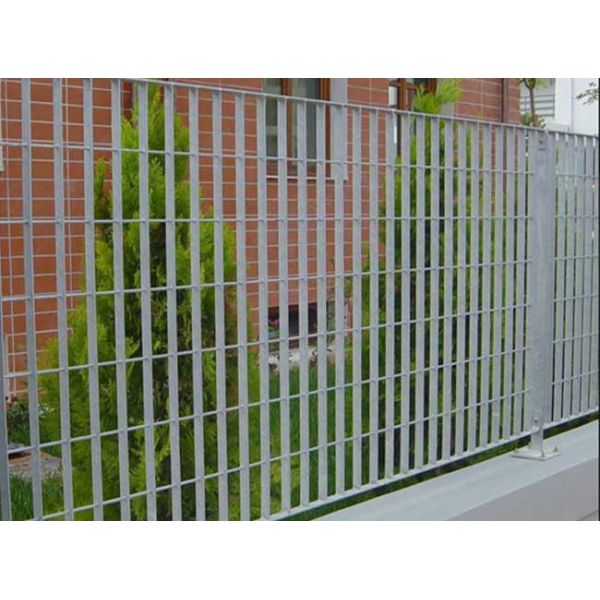

Steel Grating Fences from Welded or Press-locked Steel Grating
Steel grating fence is an indispensable part of architectural safety and aesthetic design. Staircase railing infill panels, building fences, bridge fence can be made of steel grating. Steel grating fence can keep people safe and beautify the surroundings.
Specifications
- Material: stainless steel, carbon steel.
- Surface treatment: galvanized, powder coated.
- Common used type: press-locked steel grating.
Connection post:
- RHS (Rectangular Hollow Section): 50 × 30 mm, 60 × 40 mm, 80 × 40 mm, 100 × 50 mm.
- Flat bar: 60 mm, 80 mm.
- Round post: Diameter 50 mm, 76 mm, 89 mm, 114 mm.
- I-shaped posts: 100 × 55 mm.
- Mesh size: 62 × 132 mm, 62 × 66 mm, 43 × 44 mm, 34 × 100 mm, 25 × 76 mm, 124 × 136 mm, 76 × 25 mm.
- Vertical flat bars: 25 × 2 mm, 25 × 3 mm, 25 × 4 mm, 30 × 2 mm, 30 × 4 mm.
- Horizontal round bars: diameter 4 mm or 5 mm.
- Gate options: single leaf, double leaf, pivot, cantilevered or sliding gates are made to match with infill panels.
Features
- Robust and durable. Made from high-strength materials, ideal for long-term outdoor use with excellent corrosion resistance.
- Customizable design. Optional decorative patterns, laser-cut panels, and various styles of handrails and posts; steel or wooden top caps available.
- Flexible installation. Supports ground fixing, wall anchoring, concrete base installation, or wall-mounted hanging.
- Adjustable dimensions. Non-standard panels can be cut on site; easy and convenient to secure.
Application
- Residential fence.
- Grating bridge fence.
- Fences as border on parking decks.
- Balconies
- Grating staircase railing.
- Safety grating grates.
