| Material | PVC+Optical Coating |
| View Angle | 160 Degree |
| Gain | 0.9 |
| ARL | 69% |
| Projection standard | 4K 3D |
| Improves contrast | 600%. |
| Projection Type | Long throw |
| Recommended Projectors | ANSI lumen >1300 |
Premium High-Density Aluminum Alloy Frame – Engineered for superior stability and optimal screen flatness, ensuring a flawless viewing experience.

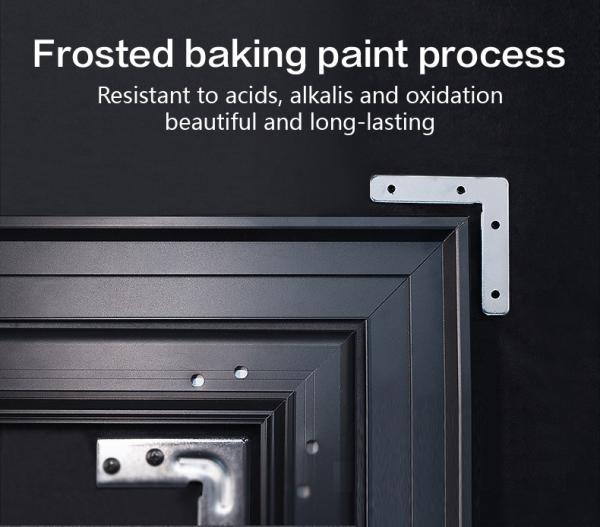

Elegant & Durable Anodized Finish – The frame undergoes an advanced anodic oxidation treatment, enhancing both aesthetics and long-lasting resilience.
Precision 45° Corner Assembly – Seamlessly joined with precision-cut angled corners for a sleek, modern look and hassle-free installation.

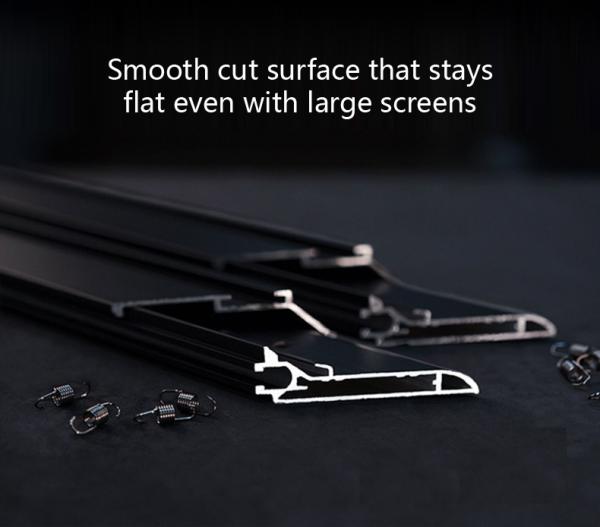

Smart Tension Spring System – High-strength tension springs automatically adjust to maintain perfect screen tautness, eliminating sagging for consistent flatness.
Ultra-Narrow 9mm Bezel Design – Maximizes screen visibility while minimizing footprint, delivering a sophisticated, edge-to-edge display perfect for high-end home theaters and professional settings.





| Size(inch) | Format | Projection Area(mm) | Frame width(mm) | Total Size(mm) |
| 80 | 16:9 | 1771x996 | 9 | 1791x1016 |
| 90 | 16:9 | 1992x1120 | 9 | 2012x1140 |
| 100 | 16:9 | 2213x1245 | 9 | 2233x1265 |
| 110 | 16:9 | 2435x1369 | 9 | 2455x1389 |
| 120 | 16:9 | 2656x1494 | 9 | 2676x1514 |
| 130 | 16:9 | 2877x1618 | 9 | 2897x1638 |
| 140 | 16:9 | 3099x1743 | 9 | 3119x1763 |
| 150 | 16:9 | 3320x1867 | 9 | 3340x1887 |
| 160 | 16:9 | 3542x1992 | 9 | 3562x2012 |
| 170 | 16:9 | 3763x2116 | 9 | 3783x2136 |
| 180 | 16:9 | 3984x2241 | 9 | 4004x2261 |
| 190 | 16:9 | 4206x2366 | 9 | 4226x2386 |
| 200 | 16:9 | 4427x2490 | 9 | 4447x2510 |
