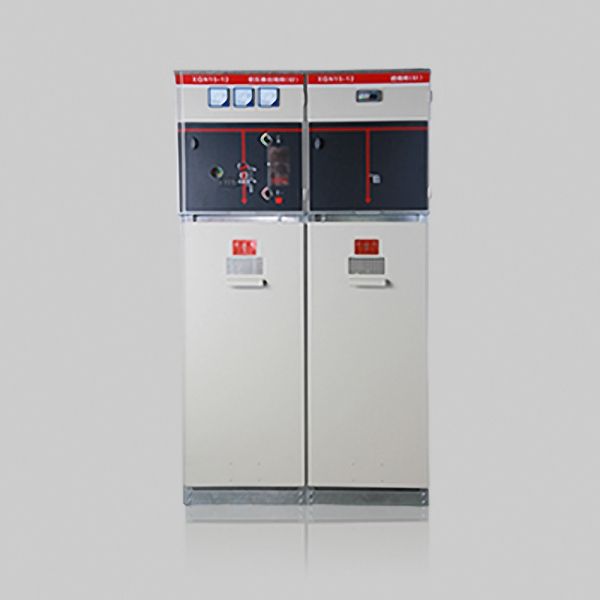

XGN15-12 Fixed AC Metal Sealed Switchgear Loop Network Compact for Power System Box Substation
XGN15-12 Fixed AC Metal Sealed Switchgear Loop Network Compact for Power System Box Substation
Specifications
Brand Name :
People Power
Rated Current :
630A/100A
Application :
Power System, Box Substation
Frequency :
50Hz
Features :
Loop Network, Compact, Bipolar Power
Rated Voltage :
10kV
Type :
Box-type Fixed AC Metal Enclosed
Model Number :
XGN15-12(L·R)
name :
XGN15-12(L·R) box-type stable type Acmetal sealed switchgear
Place of Origin :
Zhejiang, China
Description
XGN15-12(L·R) box-type stable type Acmetal sealed switchgear

Brief Introduction

XGN15-12(L)/T630-25 or XGN15-12(L•R)/T100-31.5 box-type fixed AC metal enclosed switchgear is mainly used for looped network power supply or biradial power supply of electric power system with 3-phase AC 50Hz and rated voltage 10KV. It also can be used for terminal power supply as the control device of electric energy and protection device of utilization equipment. More over, it also can be suitable for this switchgear to be installed in the box substation, especially compact box substation.

Service Environmental Condition

1.Altitude:≤ 1000m
2. Ambient temperature: -25°C ~ +40°C
3. Relative humidity: The daily average value is not more than 95% and the monthly mean value is not more than 90%.
4. The surrounding air shall not be polluted by corrosive gas and flammable gas as well as water vapor and so on obviously.
5. No location of recurrent strenuous vibration.
