ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
Specifications
Brand Name :
Adcol
Model Number :
ATL400-24
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATL400-24-00
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
20 to 60°C
Cooling Capacity :
370W
Input Power :
470W
Outer dim for connector :
1/8 NPT
Material of exchanger :
Al with hard oxidation
Hot/Cold side fan Current :
0.9 A / NA
TEM Nominal/Startup Current :
18.5/23A
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
275mm x 158mm x 170mm
Noise :
50 dB
Weight :
6.8Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

ATL400-24-00

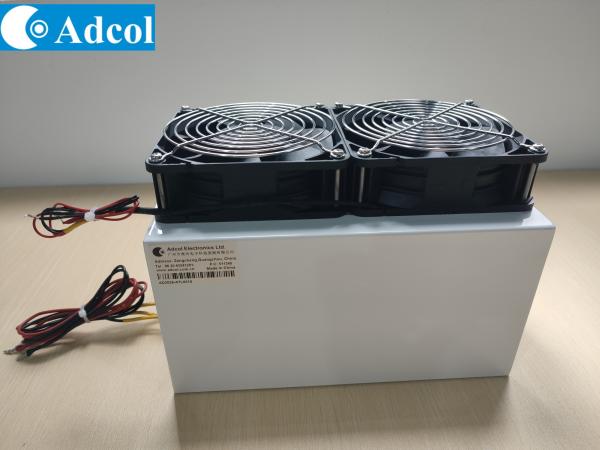

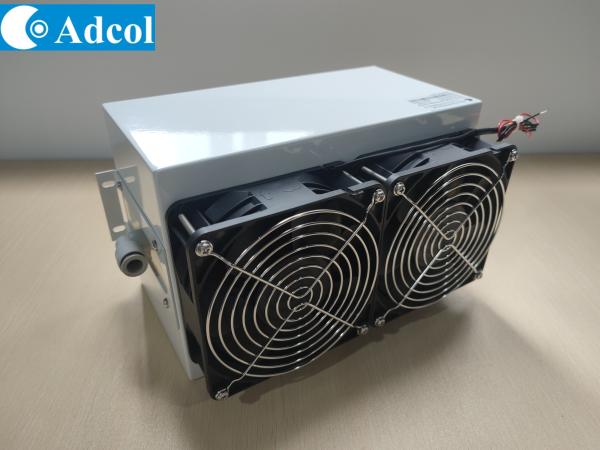

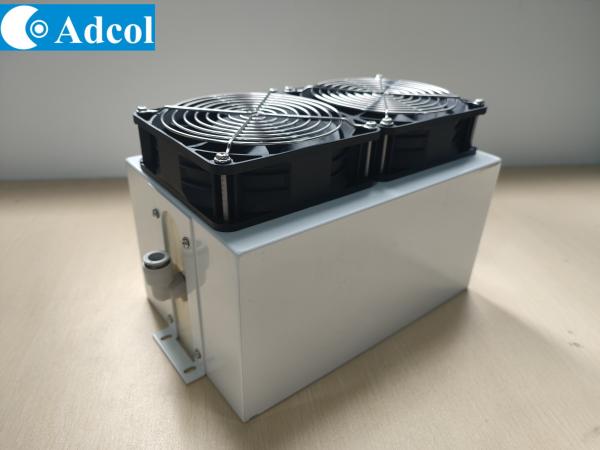

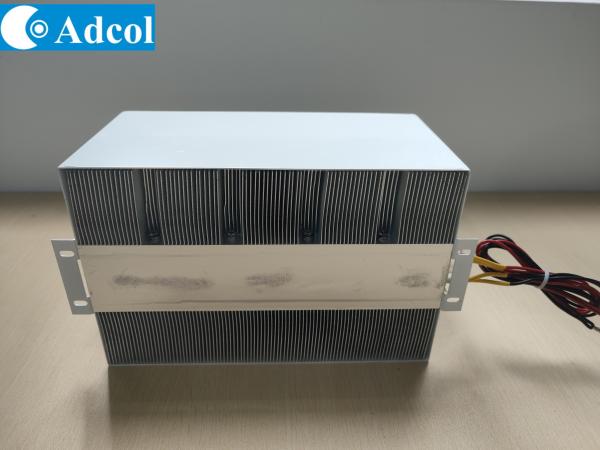

Air to Liquid thermoelectric Cooler Assembly
The ATL400-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.
Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan. It could
remove up to 370W cooling, and is available in 24VDCconfigurations. Also it is virtually maintenance-free,
and can be mounted in any orientation, offering design flexibility with solid-state reliability.
Features
  • 370W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser
