400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
Specifications
Brand Name :
Adcol
Model Number :
ATL400-24
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATL400-24-00
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
20 to 60°C
Cooling Capacity :
370W
Input Power :
470W
Outer dim for connector :
1/8 NPT
Material of exchanger :
Al with hard oxidation
Hot/Cold side fan Current :
0.9 A / NA
TEM Nominal/Startup Current :
18.5/23A
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
275mm x 158mm x 170mm
Noise :
50 dB
Weight :
6.8Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

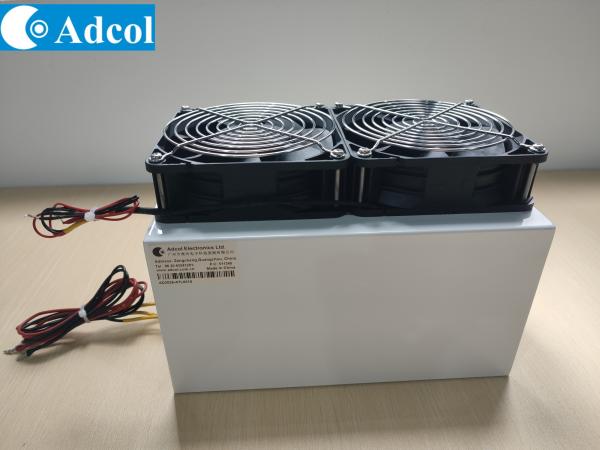

400W 24VDC Air to Liquid thermoelectric Cooler Assembly
The ATL400-24 Thermoelectric air liquid is designed for cooling objects via liquid to
transfer heat.Heat is absorbed through a liquidexchanger and dissipated by high
density heatsink with fan. It could remove up to 370W cooling, and is available in
24VDC configurations. Also it is virtually maintenance-free,and can be mounted in
any orientation, offering design flexibility with solid-state reliability.

400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

Features
  • 370W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser400W 24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser
