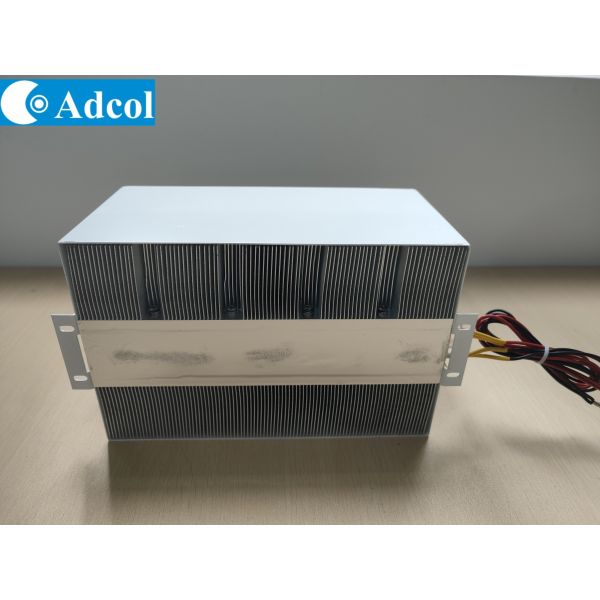

400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
Specifications
Cooling Method :
Liquid Cool
Cooling Capacity :
370W
Hot/Cold side fan Current :
0.9 A / NA
Tolerance :
10%
Input Power :
470W
Noise :
50 dB
Radiating method :
Air Force
Outer dim for connector :
1/8 NPT
Overall dimension :
275mm x 158mm x 170mm
Life Time :
>=70,000 Hours
Brand Name :
Adcol
Model Number :
ATL400-24
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
Weight :
6.8Kg
Material of exchanger :
Al with hard oxidation
Nominal/Max Voltage :
24/30 VDC
P/N :
ATL400-24-00
TEM Nominal/Startup Current :
18.5/23A
Ambient temperature/humidity :
20 to 60°C
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

400W 24VDC Air to Liquid thermoelectric Cooler Assembly

1.Product Introduction
The ATL400-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.
Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan.
It could remove up to 370W cooling, and is available in 24VDC configurations. Also it is virtually
maintenance-free,and can be mounted in any orientation, offering design flexibility with solid-state reliability.

400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System

2.Features
  • 370W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

5.Performance curve

400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System

6.Drawing

400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System

400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System400W 24V Air-to-Liquid Thermoelectric Cooler for Medical & Industrial Laser Cooling System
