ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
Specifications
Brand Name :
Adcol
Model Number :
ATL150-24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATL150-24-00
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C

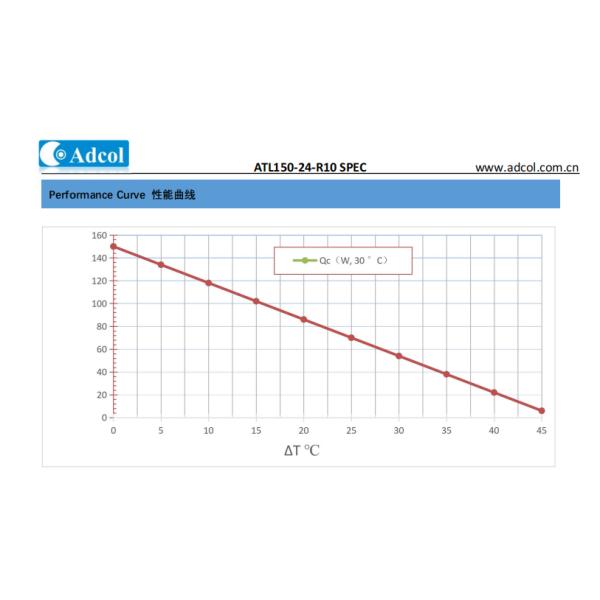

Cooling Capacity :
150W
Input Power :
205W
Outer dim for connector :
1/8 NPT
Material of exchanger :
Al with hard oxidation
Hot/Cold side fan Current :
0.35 A / NA
TEM Nominal/Startup Current :
8.2/9.8A
Nominal/Max Voltage :
24/30 VDC

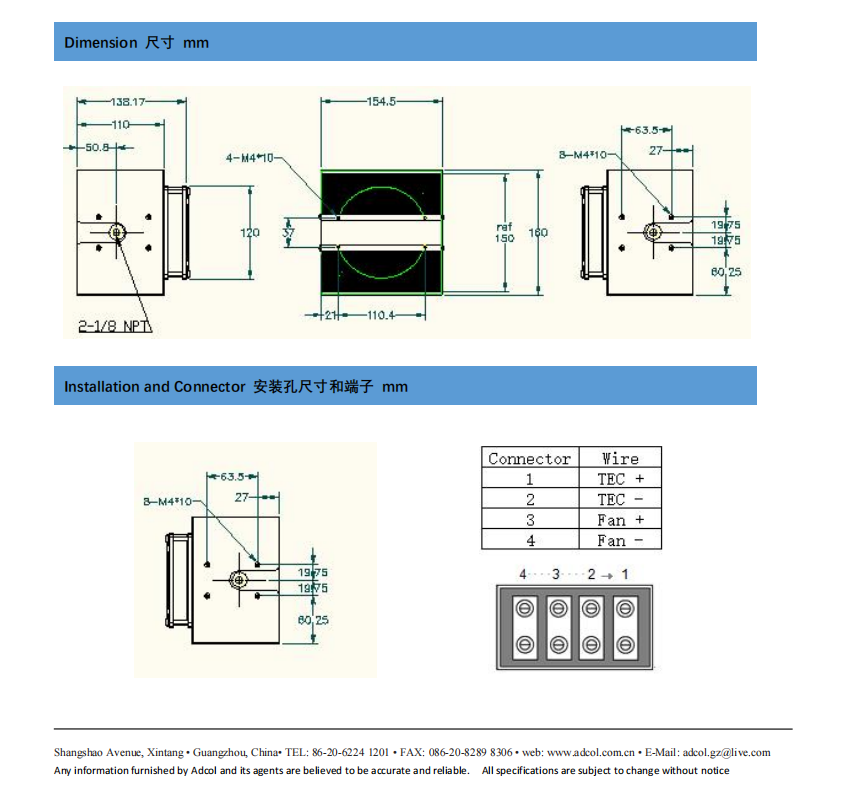

Overall dimension :
160mm x 155mm x 138mm
Noise :
45 dB
Weight :
3.1Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

ATL150-24-00
Air to Liquid thermoelectric Cooler Assembly
The ATL150-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat. Heat is
absorbed through a liquid exchanger and dissipated by high density heatsink with fan.It could remove up
to 150W cooling, and is available in 24VDC configurations. Also it is virtually maintenance-free, and can
be mounted in any orientation, offering design flexibility with solid-state reliability.
Features
  • 150W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument
