ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics
Specifications
Brand Name :
Adcol
Model Number :
ATP040-12VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATP040-12VDC
Cooling Method :
Plate Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-10 to 55°C
Cooling Capacity :
40W
Nominal/Max Voltage :
12/15VDC
Fan, hot side :
92X25mm,12VDC,0.0.24
Weight :
1.0KG
Life Time :
>=70,000 Hours
Noise :
45dB
Tolerance :
10%
Description

ATP040-12VDC Plate TEC Cooler for Analytical instrument and Medical diagnostics

ATP040-12-00

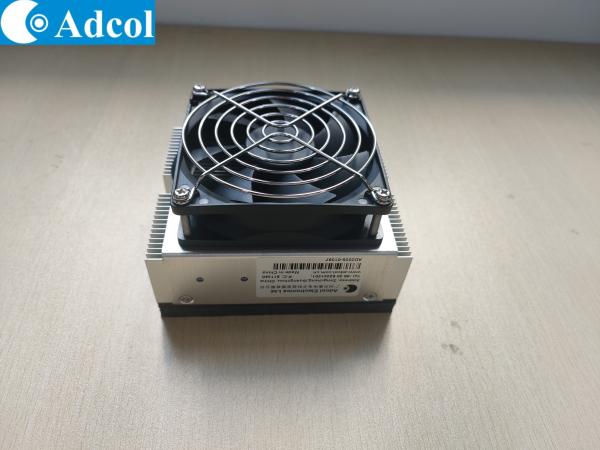

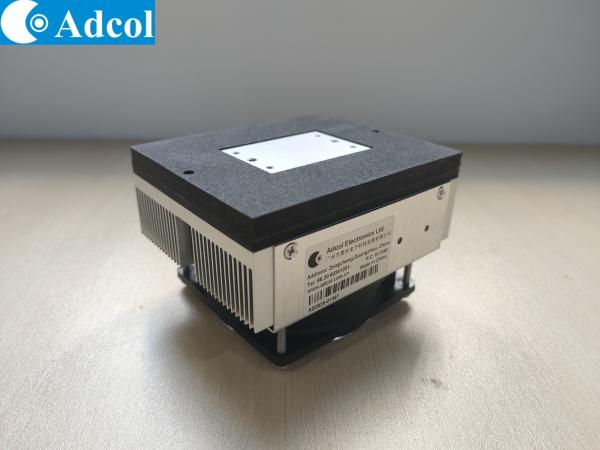

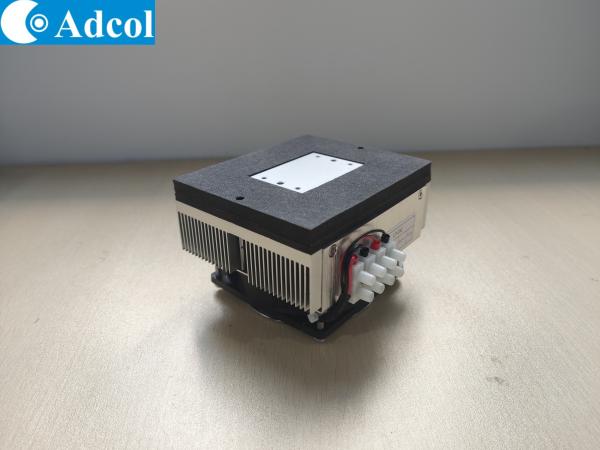

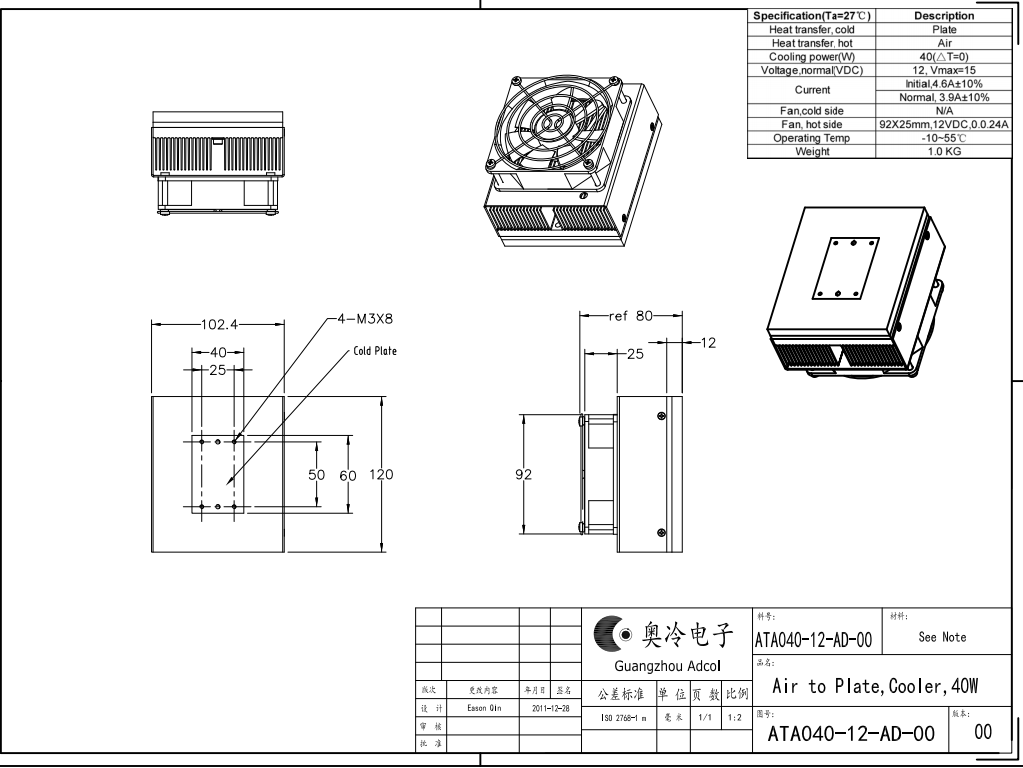

Air to Plate thermoelectric Cooler Assembly

The ATP040-12 Thermoelectric air plate is designed forelectronic cabinets and environmental chambers.lt canmaintain ambient temperatures while removing up to 50W.This model is available in 12VDC configurations. This airColdplate is virtually maintenance-free, with no filters ambientto change, and it can be mounted in any orientation, offeringdesign flexibility with solid-state reliability.
Features
  • 40W capacity rated at ΔT= 0C,Tambient =30°℃
  • Refrigerant free-environmentally friendly
  • Wide operating temperature range of -10°Cto +55℃℃
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling
