Specifications
Brand Name :
Adcol
Model Number :
ATA035-12VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATA035-12-00
Cooling Method :
Air Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
35W
Input Power :
50W
Heating Capacity :
85W
Hot/Cold side fan Current :
0.24/0.20 A
TEM Nominal/Startup Current :
3.9/5.0A
Nominal/Max Voltage :
24/30 VDC

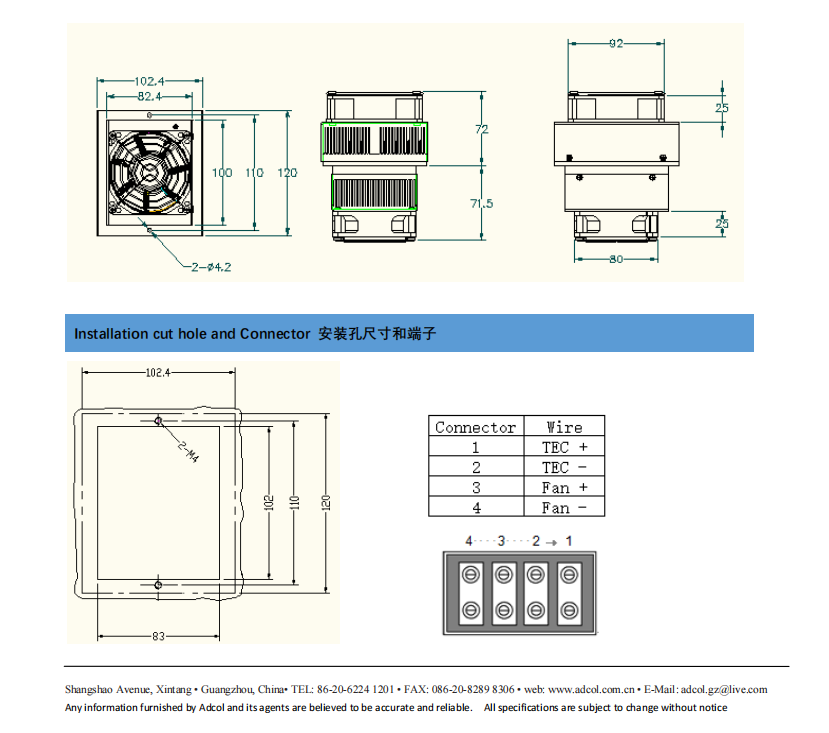

Overall dimension :
120mm x 102mm x 143mm
Weight :
1.3Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

ATA035-12VDC Air to air thermoelectric Cooler Assembly for Food/Consumer Refrigerato and Outdoor/Indoor Kiosks and display

ATA035-12-00
Air to air thermoelectric Cooler Assembly . The ATA035-12 Thermoelectric air conditioner is designed for electronic cabinets and
environmental chambers. It can maintain ambient temperatures while removing up to 35W. This model is available in 12VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
Features
  • 35W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

Application
  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator
