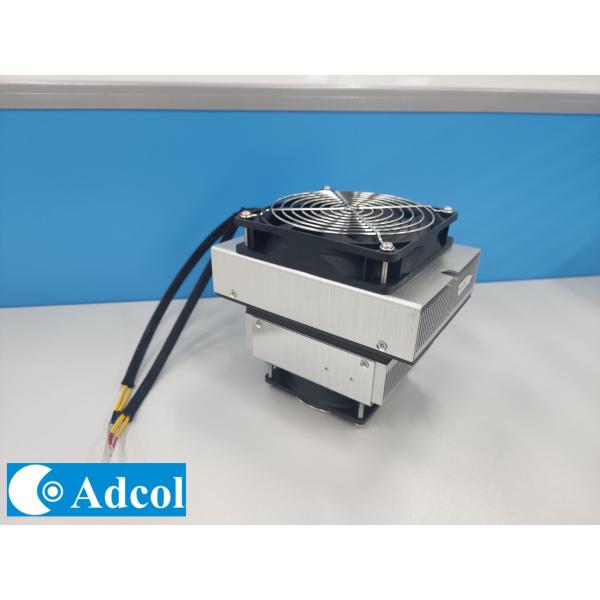

50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
Specifications
Brand Name :
Adcol
Model Number :
ATA050-24VDC
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
Certification :
ISO9001 , CE
Place of Origin :
CHINA
P/N :
ATA050-24VDC
Cooling Method :
Air Cool
Radiating method :
Force Air
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
50W
Input Power :
95W
Heating Capacity :
135W
Hot/Cold side fan Current :
0.25/0.18 A
TEM Nominal/Startup Current :
4.0/4.6A
Nominal/Max Voltage :
24/30 VDC
Life Time :
>=70.000 Hours
Tolerance :
10%
Weight :
1.8KG
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

ATA050-24VDC Air to air thermoelectric Cooler Assembly

1.Working principle
The ATA PowerCool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement
flow to transfer heat. It offers dependable, compact performance by coolingobjects via convection.
Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds
and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom
designed to achieve a high coefficient of performance (COP).

50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets

2.Introduction


The ATA050-24VDC Thermoelectric air conditioner is designed forelectronic cabinets and environmental chambers. lt canmaintain ambient temperatures while removing up to 50W.This model is available in 12VDC configurations. This airconditioner is virtually maintenance-free, with no filtersambient to change, and it can be mounted in any orientation.offering design flexibility with solid-state reliability.

3.Features

  • 50W capacity rated at T = 0°C,Tambient= 30°℃
  • Refrigerant free-environmentally friendly
  • Wide operating temperature range of-20°Cto +60°℃
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

4.Application

  • Outdoor encosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator

50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
:50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets

50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets

50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets50W 24VDC Air to Air Thermoelectric Cooler for Ambient Temperature Control in Electronic Cabinets
