Specifications
Brand Name :
ADCOL
Model Number :
ATA080-24VDC
Certification :
ISO9001 , CE
Place of Origin :
CHINA
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500PCS
Delivery Time :
3-4 weeks
Packaging Details :
Solid Carton Packaging
P/N :
ATA080-24VDC
Cooling Method :
Air Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
80W
Input Power :
115W
Heating Capacity :
190W
Hot/Cold side fan Current :
0.35/0.25 A
TEM Nominal/Startup Current :
4.2/5.3A
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
203mm x 155mm x 213mm
Weight :
4.8Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

ATA080-24VDC Air to air thermoelectric Cooler

1.Product Introduction
The ATA080-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 80W. This model is available in 24VDC configurations.
This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in
any orientation, offering design flexibility with solid-state reliability
80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions
2.Features
  • 80W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
3.Application
  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator

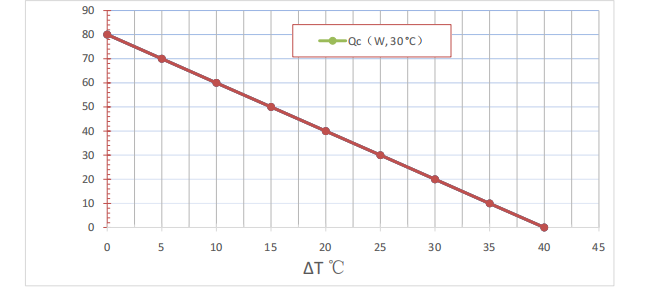

4.Performance Curve

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions

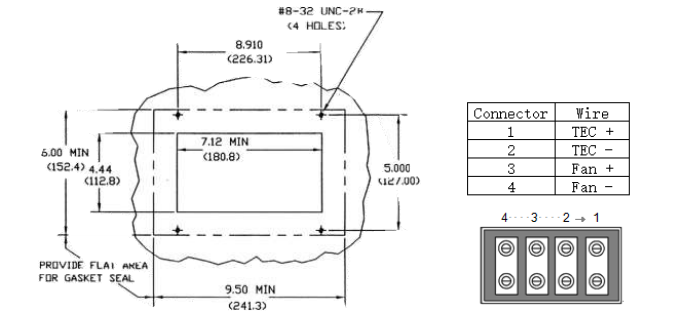

5.Installation cut hole and Connector

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions

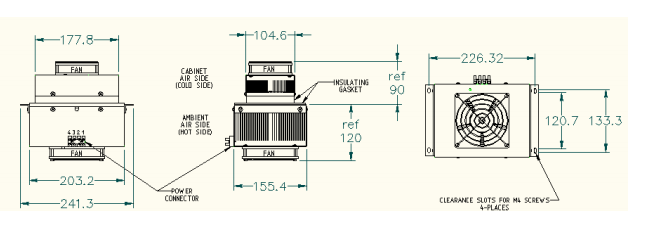

6.Dimension

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions
