Specifications
Fan, hot side :
12038mm,24VDC
Payment Terms :
T/T, Paypal
Certification :
ISO9001 , CE
Packaging Details :
Solid Carton Packaging
Place of Origin :
CHINA
Heat transfer, Cold :
AIR
Heat transfer. Hot :
AIR
Input Voltage :
24VDC
Unit Weight :
4KG
Fan,cold side :
12025mm ,24VDC
Delivery Time :
3-4 weeks
Working Temperature :
-10~55˚C
Brand Name :
ADCOL
Model Number :
ATA100-24VDC
MOQ :
1EA
P/N :
ATA100-24VDC
Price :
Negotiation
Cool Capacity :
100W
Supply Ability :
500PCS
Description

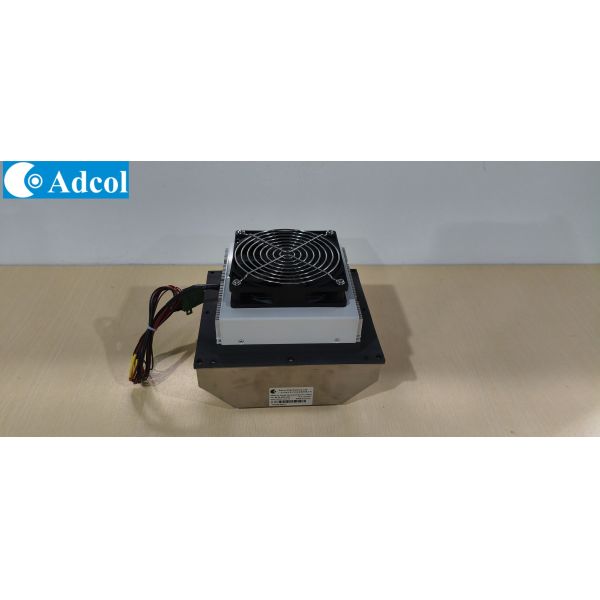

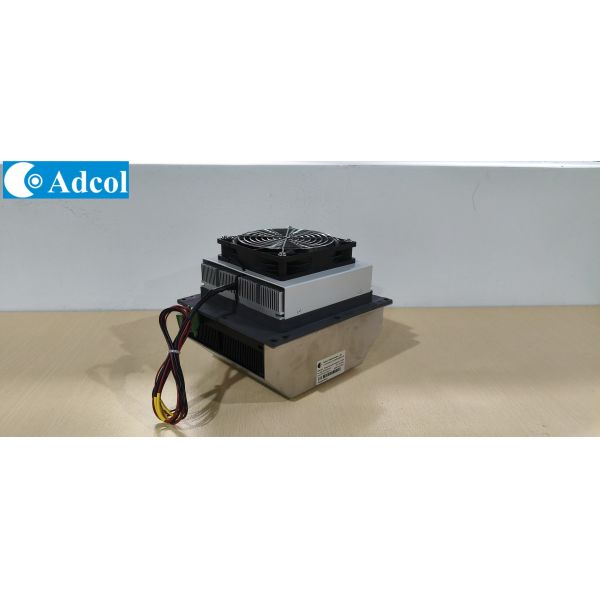

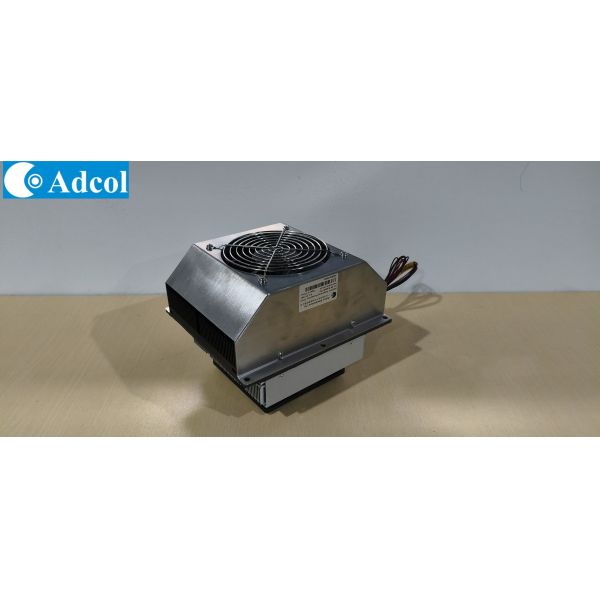

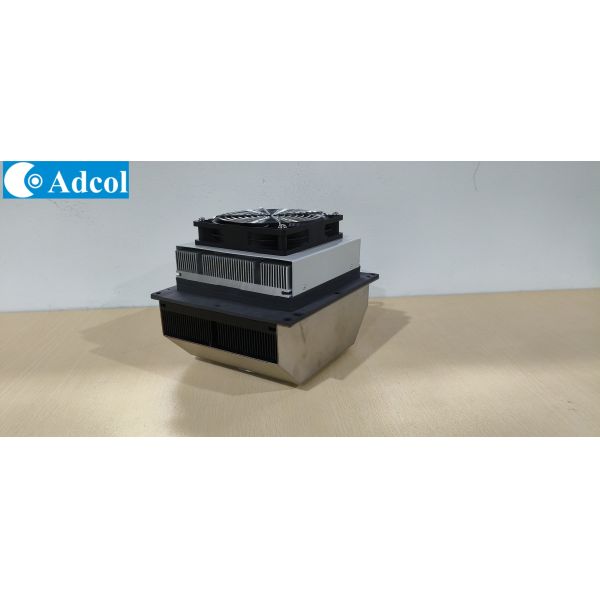

ATA100-24VDC Thermoelectric air conditioners

1.Product Introduction
ATA100-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration
and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures
while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 24VDC configuration, it could generate
100W power; These air conditioners are virtually maintenance-free, with no filters to change, and they can
be mounted in any orientation, offering design flexibility with solid-state reliability
Thermoelectric Air Conditioner Offering Compact Size and IP55 Protection for in Outdoor and Indoor Electronic Enclosures
2.Features
  • Compact design
  • Reliable solid-state operation
  • DC operation
  • RoHS compliant
  • IP55(IEC 60529)
  • Product design with IEC60950 Standards
3. Application
  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator

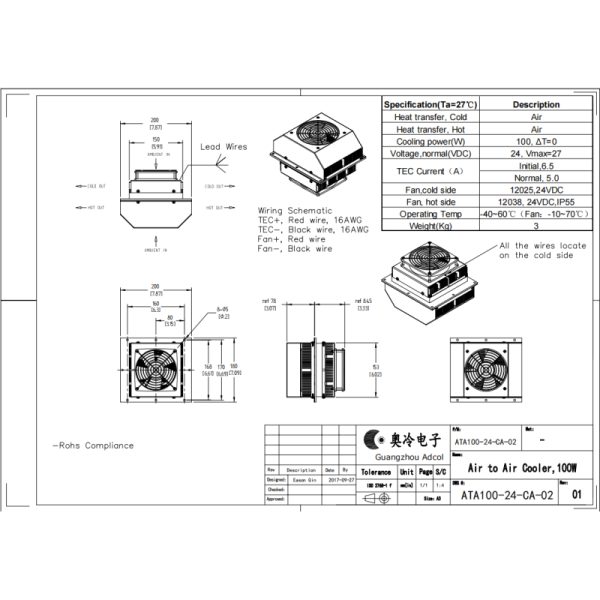

4.Design Drawing

Thermoelectric Air Conditioner Offering Compact Size and IP55 Protection for in Outdoor and Indoor Electronic Enclosures

Thermoelectric Air Conditioner Offering Compact Size and IP55 Protection for in Outdoor and Indoor Electronic Enclosures
