Specifications
Brand Name :
ADCOL
Model Number :
ATP100-24VDC
Certification :
ISO9001 , CE
Place of Origin :
CHINA
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500PCS
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATP100-24VDC
Cooling Method :
Plate Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
100W
Tolerance :
10%
Input Power :
144W
Heating Capacity :
200W
Input voltage :
24VDC，Vmax 30VDC
Steady current operation: :
6A
Sensor type :
PT100
Noise :
52 dB
Weight :
2KG
Life Time :
>=70,000 Hou
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

2.5L Fermentation Tank Temperature Control Module

1.Product Introduction

It dissipates heat through air, uses plate cooling, and comes into direct contact

with the cooled object to provide cooling capacity.

This model is available in 24VDC configurations. This air Cold plate is virtually

maintenance-free, with no filters ambientto change, and it can be mounted in

any orientation, offeringdesign flexibility with solid-state reliability.

2.Features

  • 100W capacity rated at ΔT = 0ºC,Tambient
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
3.Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling

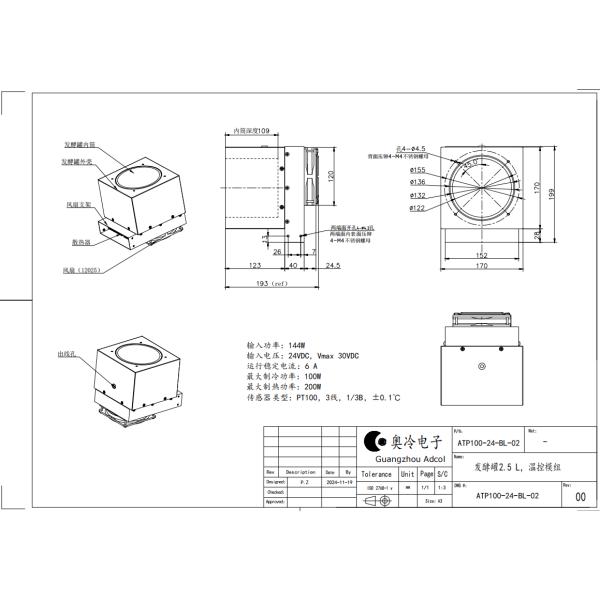

4.Drawing
