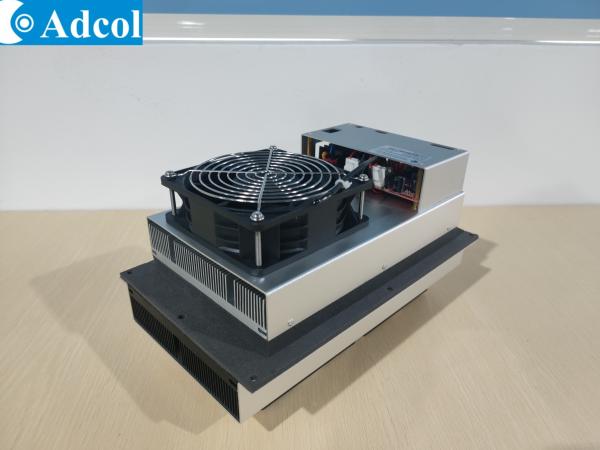

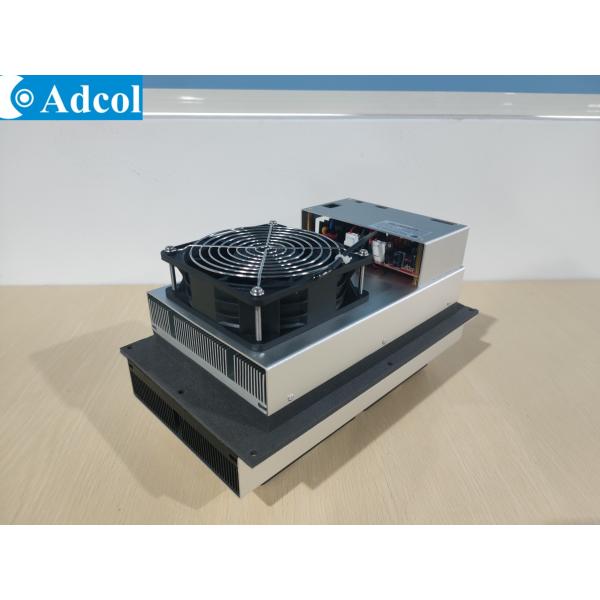

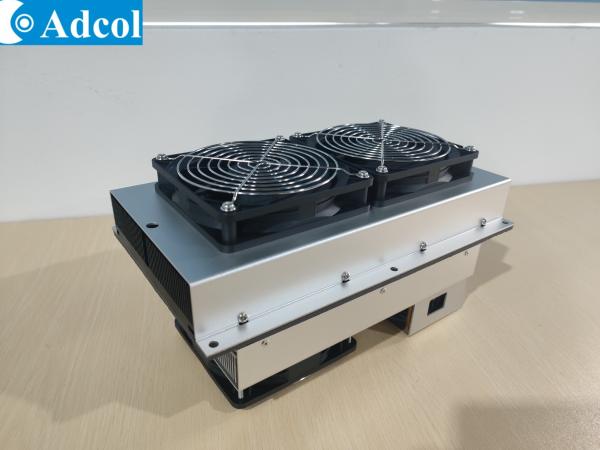

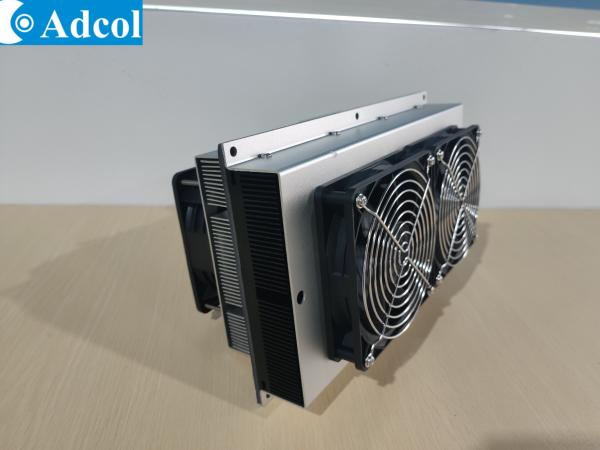

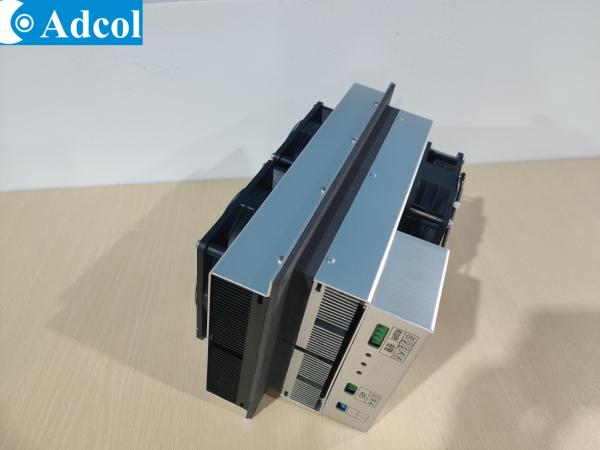

180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System
Specifications
Brand Name :
Adcol
Model Number :
ATA180-24VDC
Certification :
ISO9001 , CE
Place of Origin :
CHINA
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500PCS
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATA180-24VDC
Cooling Method :
Air Cool
Radiating method :
Air Forc
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
180W
Input Power :
330W
Heating Capacity :
520W
Hot/Cold side fan Current :
0.60/0.35 A
TEM Nominal/Startup Current :
12.5/14.8A
Nominal/Max Voltage :
24/27 VDC
Weight :
7.5KG
Life Time :
>=70,000 Hours
Noise :
55 dB
Tolerance :
10%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

180W Unmanned Aerial Vehicle Air Conditioning System

1.Product Introduction

The ATA180-24 is designed for Unmanned Aerial Vehicle Air Conditioning System
It can maintain ambient temperatures while removing up to about 180W. This model is available
in 24VDC configurations. This airconditioner is virtually maintenance-free, with no filters ambient
to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
180W Unmanned Aerial Vehicle Air Conditioning System
2.Features
  • About 180W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
3.Application
  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator
4.Performance Curve
180W Unmanned Aerial Vehicle Air Conditioning System
5.Design drawing
180W Unmanned Aerial Vehicle Air Conditioning System
180W Unmanned Aerial Vehicle Air Conditioning System180W Unmanned Aerial Vehicle Air Conditioning System
