50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
Specifications
Cooling Method :
Air to fluid
Dimensions :
160x120x84mm
Cooling Capacity 50W Fan Input Voltage :
50W
Starting Current :
10.2A /5.1A
Outer diameter of Pipe Connecting Port :
dia 9.5mm
Fan Input Voltage :
12/24VDC
Electrical Connection :
Screw
Cooling Objective :
Purified water
Peltier Input Voltage :
12/24VDC
Overheat protection :
no
Site of Use :
Indoor
Noise :
39DB
Brand Name :
Adcol
Model Number :
ATL050-12/24VDC
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
Negotation
Payment Terms :
T/T, Paypal
Supply Ability :
10kPcs/Month
Delivery Time :
3-4 Weeks
Packaging Details :
Solid Carton Packaging
Cooling objective Contact Part :
Aluminum, partially copper
Rated Consumption Current :
8.7A /4.4A
Max Ambient Temperature :
60 degree
P/N :
ATL050-12/24VDC
Mass of Main Unit :
est. 1.5kgs
Working Humidity :
Below 80%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

50W Thermoelectric Liquid Cooler

1.Product Introduction

The ATL050-24 Thermoelectric air to Liquid are designed for electronic liquid cooling. They can

cool to 72˚F below ambient or maintain ambient temperatures while removing up to 50W. These
models are available in 12 or 24 VDC configurations.

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

2.Features

  • 50W capacity rated at ΔT = 0ºC, Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

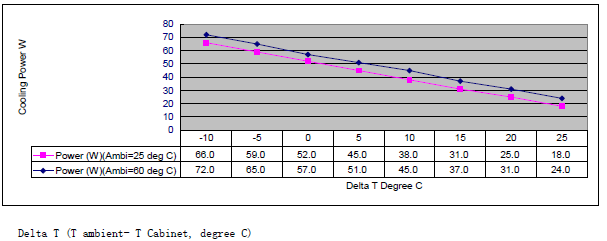

4.Performance Curve

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

5.Product drawing

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
