Specifications
Brand Name :
Adcol
Model Number :
ATA250-24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATA250-24VDC
Cooling Method :
Air Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
240W
Input Power :
315W
Heating Capacity :
500W
Hot/Cold side fan Current :
0.30/0.18 A
TEM Nominal/Startup Current :
5.8/6.9A
Nominal/Max Voltage :
24 VDC
Overall dimension :
400mm x 180mm x 203mm
Weight :
7.5Kg
Life Time :
>=70,000 Hours
Noise :
55 dB
Tolerance :
10%
Operating Temp :
-40~60℃(Fan-10~70℃)
Fan,cold side :
12038,24VDC
Fan, hot side :
2*14038,24VDC
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

ATA250-24-00 Air to air thermoelectric Cooler Assembly

1.Product Introduction

The ATA250-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental

chambers. It can maintain ambient temperatures while removing up to 240W. This model is available

in 24VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient

to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

ATA250-24VDC Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator

2.Features

  1. 240W capacity rated at ΔT = 0ºC,Tambient = 30°C
  2. Refrigerant free - environmentally friendly
  3. Wide operating temperature range of –20°C to +60°C
  4. Shift between heating and cooling without using a heater
  5. Reduced noise and vibration with no moving parts

3.Application

  1. Outdoor enclosures
  2. Outdoor/Indoor Kiosks and display
  3. Battery Cabinet
  4. Food/Consumer Refrigerator

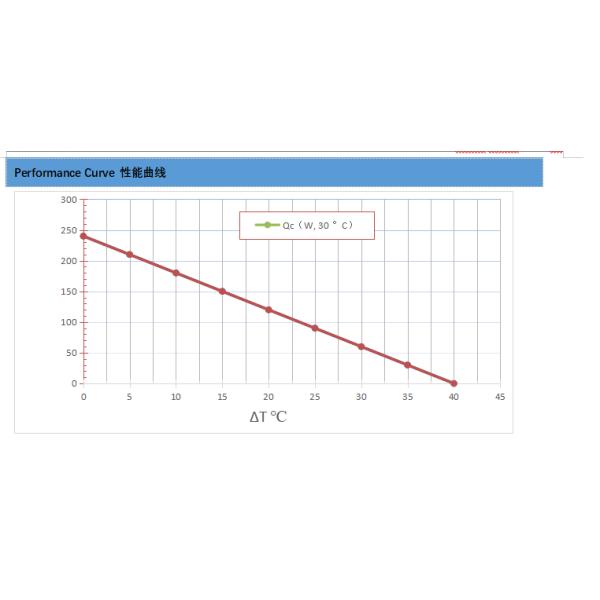

4.Performance Curve

ATA250-24VDC Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator

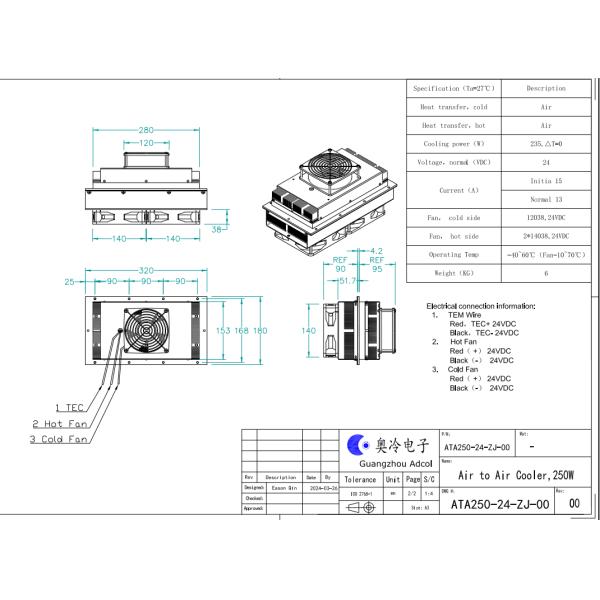

5.Design drawing

ATA250-24VDC Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator

ATA250-24VDC Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer RefrigeratorATA250-24VDC Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator
