Specifications
Brand Name :
Adcol
Model Number :
ATA200-24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
200Pcs/Month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATA200-24VDC
Cooling Method :
Air to air
Cool Objective :
Air
Heat dissipation :
Air
Iuput Voltage :
24VDC
Max voltage :
27VDC
Perk current :
13.6A

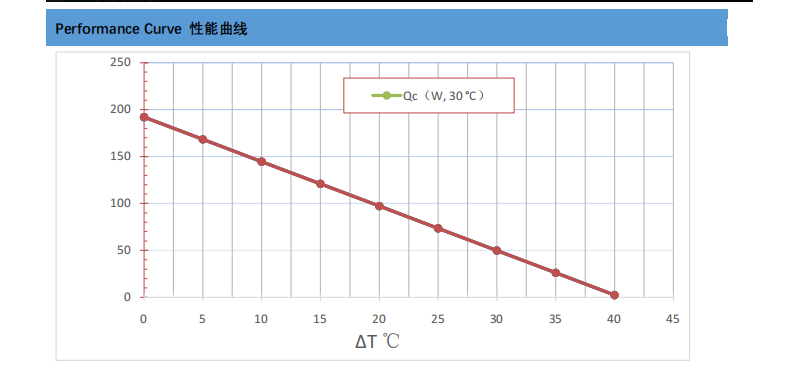

Max cooling capacity :
190W
Outside Fan :
IP55
Installation :
Screw
Noise :
55 dB
Expected life :
Over 70,000 hrs
Net Weight :
7.5kg
Description

200W 24VDC Air conditioner are widely used in outdoor battery cabinet, indoor battery cabinet and other kiosk which has the temperature and control request

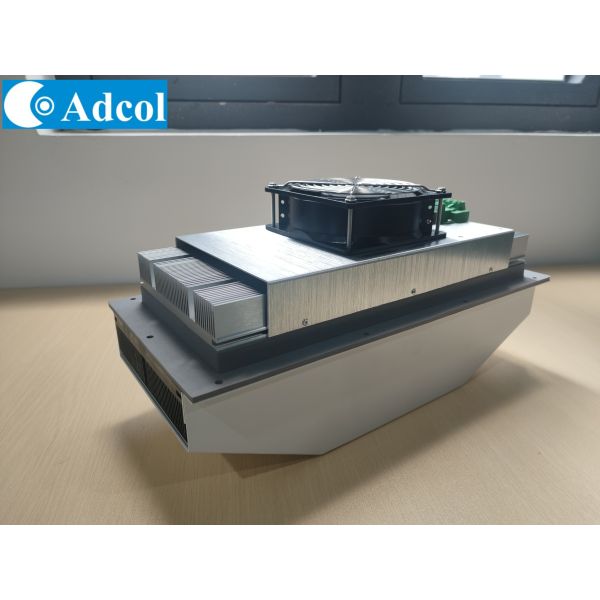

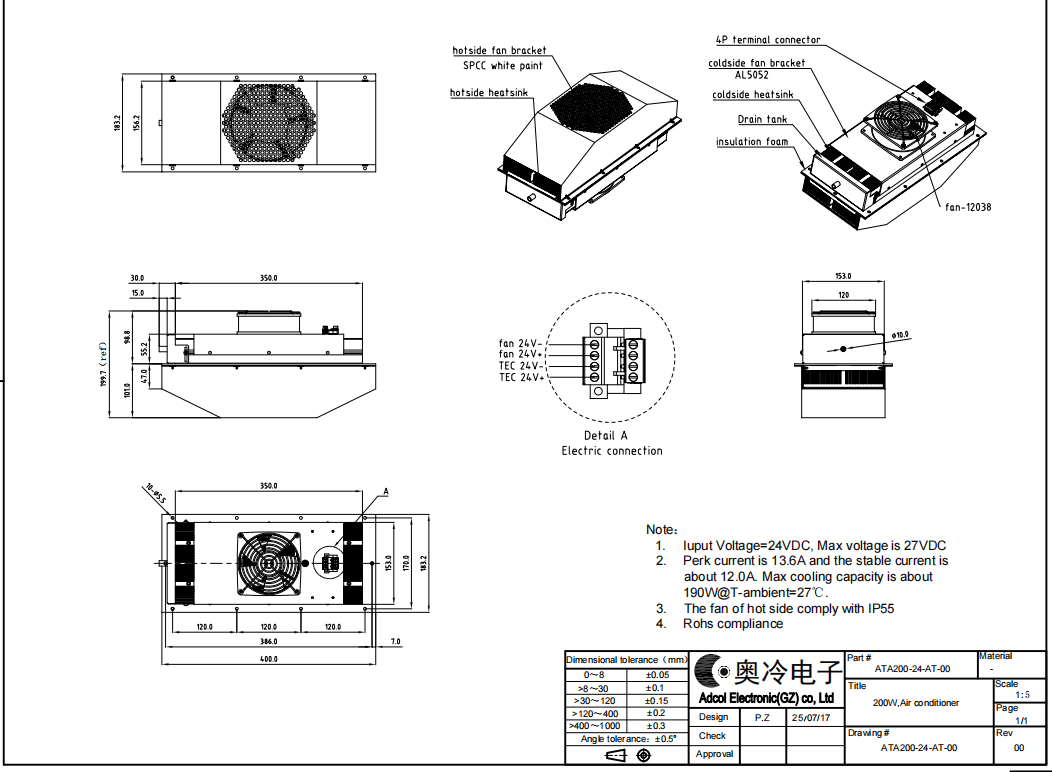

ATA200-24-00
Air to air thermoelectric Cooler Assembly

The ATA200-24 Thermoelectric air conditioner is designed for electronic cabinets
and environmental chambers. It can maintain ambient temperatures while removing
up to about200W. This model is available in 24VDC configurations. This air
conditioner is virtually maintenance-free, with no filters ambient to change, and it can
be mounted in any orientation, offering design flexibility with solid-state reliability.
Application
Our products are widely used in outdoor battery cabinet, indoor battery cabinet and other
kiosk which has the temperature and control request.
Technical requirements
  • ATA200-24VDC consists of six portions - thermoelectric module, coldside heatsink,

hotside heatsink, coldside fan, hotside fan and monitoring unit.

  • When power is supplied to the ATA200-24VDC, one side of the TEM will be cool

and theother side will heat.The cold/heat generated will be radiated to the surroundings

via the cold/hot side heatsink and fans.

  • The cold side heatsink and fan direct the inner air into the cabinet to cool it, The hot

end side heatsink and fan direct the outside air for heat dissipating into the external environment.

  • ATA200-24VDC both inner and external fan are blow in the heat sink and air come out

from two ends.
