300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
Specifications
Brand Name :
ADCOL
Model Number :
ATL300-24VDC
Certification :
ISO9001 , CE
Place of Origin :
CHINA
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500PCS
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATL300-24VDC
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
290W
Outer dim for connector :
R10
Material of exchanger :
Al with hard oxidation
Hot/Cold side fan Current :
0.9A / NA
TEM Nominal/Startup Current :
13.5A/17.5A
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
260mm x 158mm x 160mm
Noise :
52 dB
Weight :
5.5Kg
Life Time :
>=70,000 Hou
Tolerance :
10%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

ATL300-24VDC Air to Liquid thermoelectric Cooler Assembly

1.Product Introduction

The ATL300-24VDC Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.

Heat is absorbed through a liquid exchanger and dissipated by high density heatsink with fan.
It could remove up to 290W cooling, and is available in 24VDC configurations. Also it is virtually
maintenance-free, and can be mounted in any orientation, offering design flexibility with solid-state reliability.
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics

2.Features

  • 290W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
3.Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

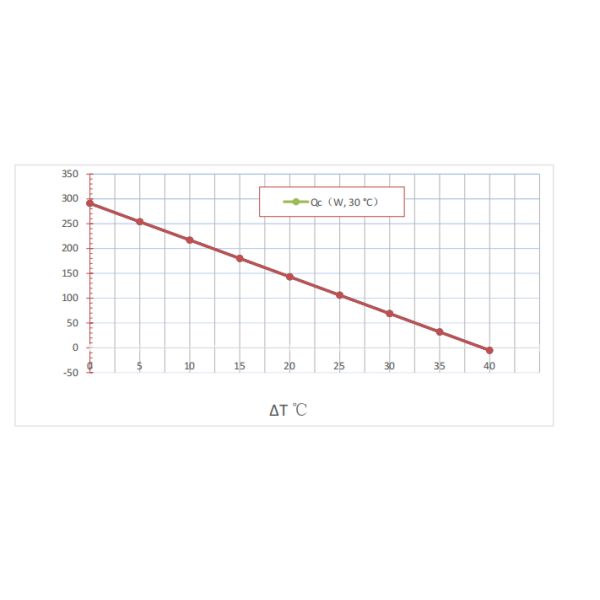

4. Performance Curve
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics

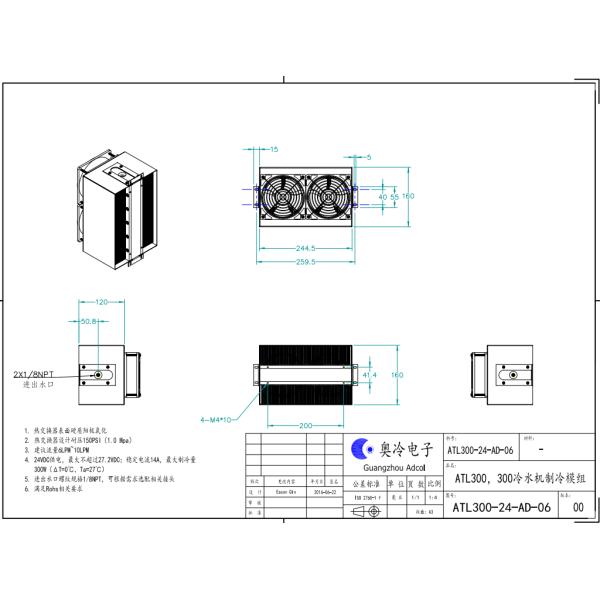

5.Drawing
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
