300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
Specifications
Maximum flow rate, LPM :
6
Controller accuracy, °C :
± 0.10
Brand Name :
Adcol
Model Number :
ARC300
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
5 Sets
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
100Pcs/Month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
Heating Capacity，Watt :
300-600
Fluid capacity, mL :
350
Humidity，RH% :
≤85% RH
Weight, kg :
16
Temp. stability, ℃ :
± 0.05
Current, Amperes, 115VAC (230VAC) :
3.9(2.0)
Input voltage, VAC :
100-240
Compliance :
UL61010-1/IEC61010-1 EN 61326-1:2006 EN 61000-3-3:2008
Product Name :
Thermoelectric Liquid Cooler
Frequency, Hz :
50/60
Input power, Watts :
450
Description

300W ARC Series Dependable And Easy-to- Thermoelectric Liquid Cooler

1.Product Introduction

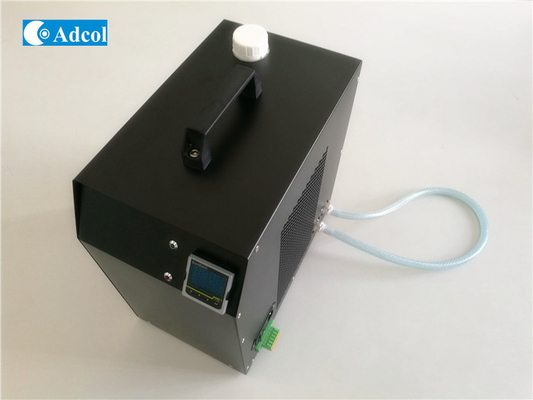

  • The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by controlling the temperature of a coolant in a liquid circuit.
  • The coolant is re-circulated using a pump with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density heat sinks equipped with brand name fans.
  • The thermoelectric modules are custom designed to achieve long life operation. The unit is regulated with an easy to use digital temperature controller and is housed inside an aesthetic sheet metal casing.
  • Also the chiller can providethe heating function to keep the circle system at some Constant temperature point in the range.

300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit

2.Standard Features
  • Fast cooling and heating
  • Easy to operate
  • Environmentally friendly and refrigerant-free
  • Quiet
  • Programmable Digital Temperature Controller/ Auto-tune of PID control terms
  • System Error Monitor and alarm
  • Fluid inlet and outlet quick disconnect
  • High reliability
3.Cooling Capacity
  • Delta T =T ambient – T liquid – Degree C;
  • Cooling Capacity Qc – W
  • Liquid: Pure Water with current rate of Alcohol
  • ST: Standard unit, cooling only
300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
4.Heating Capacity
  • Delta T’=T liquid – T ambient – Degree C;
  • Heating Capacity Qh - W
  • Liquid: Pure Water
  • HT: with Heater by reverse TE module Connection
300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
5.Dimension(mm)
300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
300W Thermoelectric Peltier Recirculating Liquid Chiller, Benchtop Coolant Temperature Control Unit
