Specifications
Brand Name :
Adcol
Model Number :
ATL200-24VDC
Certification :
ISO9001 , CE
Place of Origin :
CHINA
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500PCS
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATL200-24VDC
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
200W
Input Power :
24VDC
Rated Consumption Current :
14.0A +/-5%
Starting Current :
17.2A+/-5%
Working Humidity :
Below 80%
Overheat protection :
NO
Fan Input Voltage :
24VDC
Material of exchanger :
Al with hard oxidation
Noise :
48 dB
Life Time :
>=70.000 Hours
Weight :
6.5KG
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

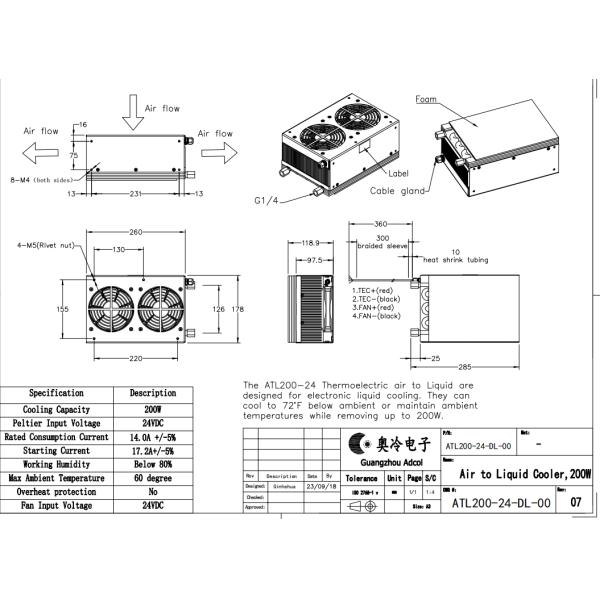

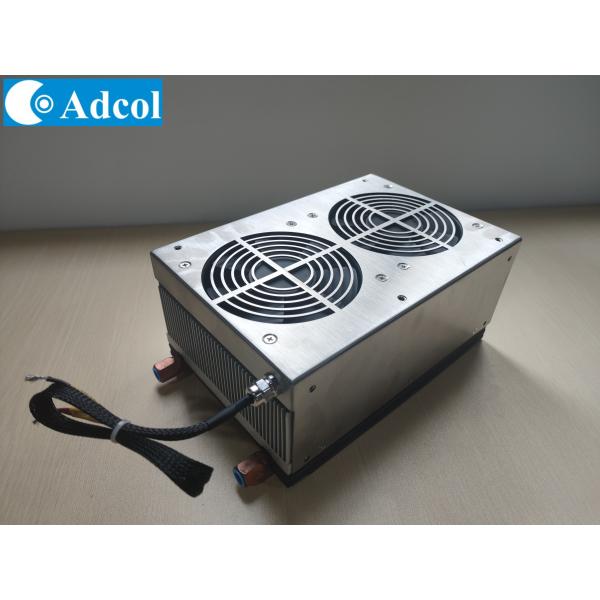

ATL200-24VDC Air to Liquid thermoelectric Cooler Assembly

1.Product Introduction

​​​​(1).Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.

Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan.

(2).The ATL200-24 Thermoelectric air to Liquid aredesigned for electronic liquid cooling.

They cancool to 72Fbelow ambient or maintain ambienttemperatures while removing up

to 200W.

(3).Also it is virtually maintenance-free, and can bemounted in any orientation, offering design

flexibility with solid-state reliability

200W Air to Liquid thermoelectric cooler are designed for electronic liquid cooling.

2.Features

(1)200W capacity rated at ΔT = 0°C,Tambient= 30°℃

(2)Refrigerant free-environmentally friendly

(3)Wide operating temperature range of -20°C to +60°℃

(4)Shift between heating and cooling without using a heater

(5)Reduced noise and vibration with no moving parts

3.Application


(1)Analytical instrument
(2)Medical diagnostics
(3)Industrial laser
(4)Medical laser

200W Air to Liquid thermoelectric cooler are designed for electronic liquid cooling.

200W Air to Liquid thermoelectric cooler are designed for electronic liquid cooling.200W Air to Liquid thermoelectric cooler are designed for electronic liquid cooling.
