190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
Specifications
Cooling Method :
Liquid Cool
Cooling Capacity :
190W
Material of exchanger :
Al with hard oxidation
Tolerance :
10%
Input Power :
230W
Noise :
48 dB
Radiating method :
Air Force
Brand Name :
Adcol
Model Number :
ATL190
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
Negotation
Payment Terms :
T/T, Paypal
Supply Ability :
10kPcs/Month
Delivery Time :
3-4 Weeks
Packaging Details :
Solid Carton Packaging
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
160mm x 155mm x 148mm
Life Time :
>=70,000 Hours
Weight :
3.1Kg
Outer dim for connector :
1/8 NPT
TEM Nominal/Startup Current :
9.0/11.3A
P/N :
ATL190-24VDC
Hot/Cold side fan Current :
0.40A / NA
Ambient temperature/humidity :
-20 to 60°C
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

190W Thermoelectric air to Liquid Cooler

1.Product Introduction

The ATL190-24-Fan Thermoelectric air to Liquid are designed for electronic liquid cooling. They can cool
to 72˚F below ambient or maintain ambient temperatures while removing up to 190W. These models are
available in 24 VDC configurations.

190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

2.Product Features
  • 190W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
3.Product Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

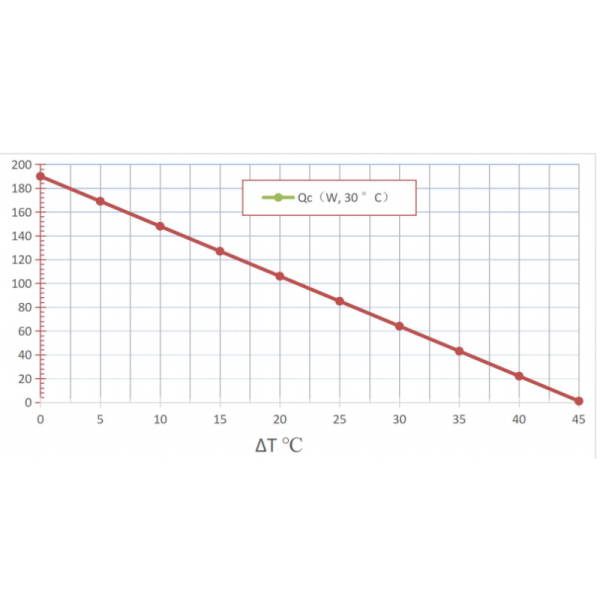

4.Performance Curve

190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

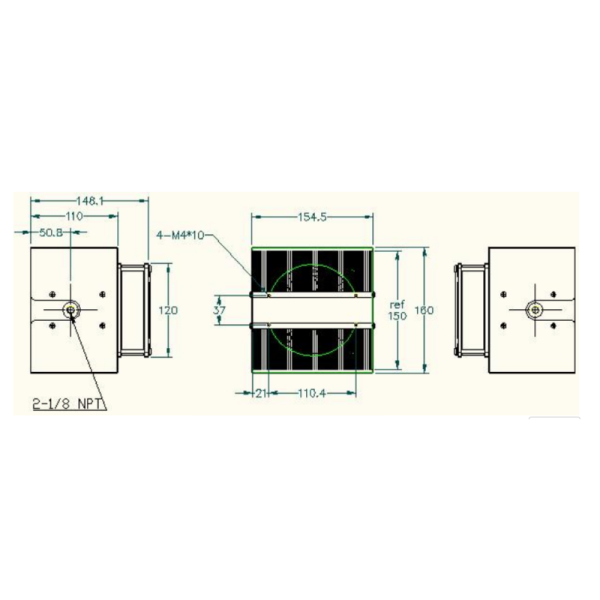

5.Dimension (mm)

190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

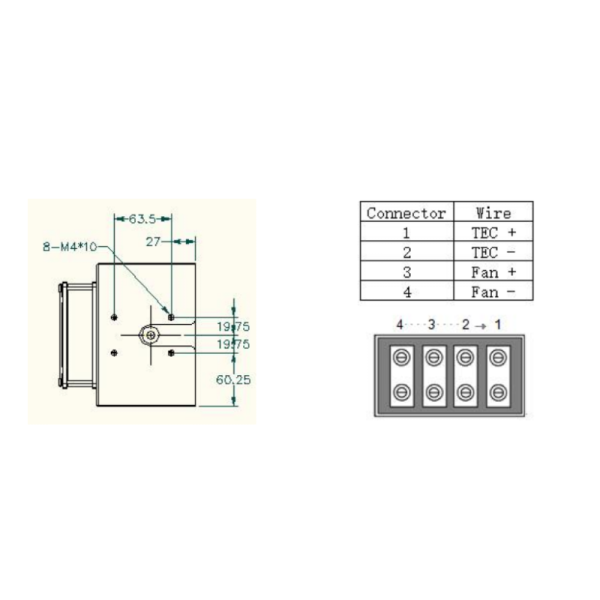

6.Installation and Connector (mm)

190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

190W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
