Specifications
Fan, hot side :
12751,24VDC
Current :
Normal, 15A
Tolerance :
10%
P/N :
ATA300-24VDC
Noise :
55 dB
Cooling Method :
Air Cool
Cooling Capacity :
300W
Life Time :
>=70,000 Hours
Fan,cold side :
12038,24VDC
Radiating method :
Air Force
Brand Name :
Adcol
Model Number :
ATA300-24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
Operating Temp :
-10 to 70°C
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

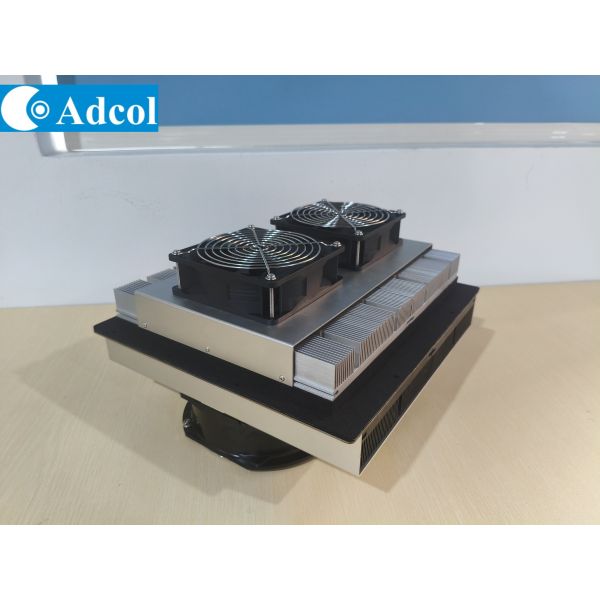

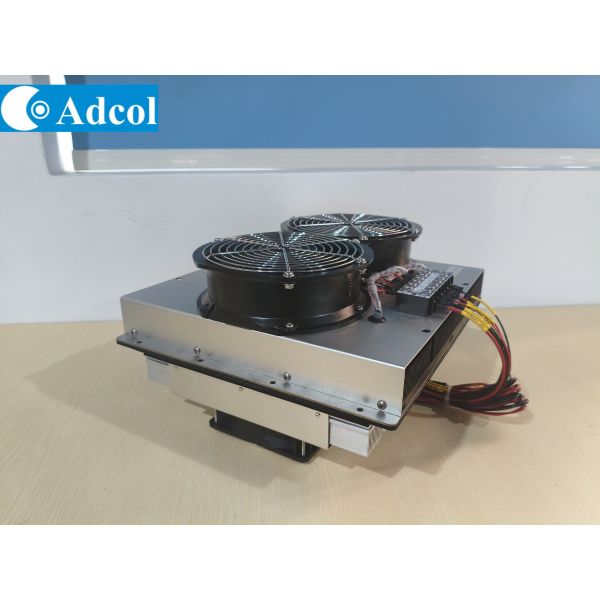

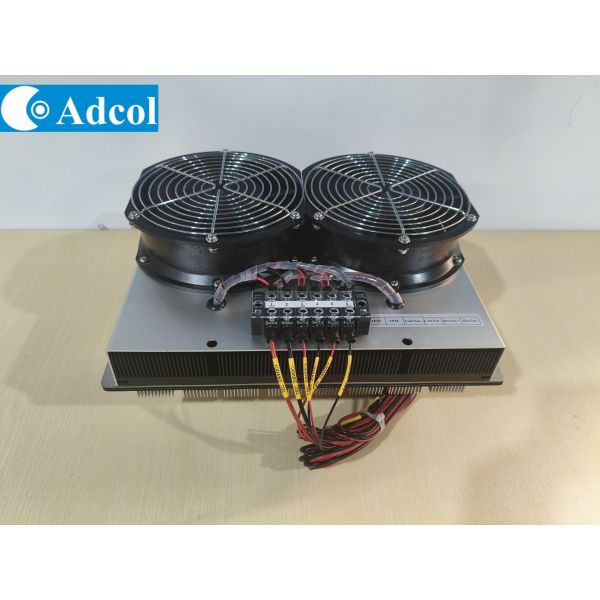

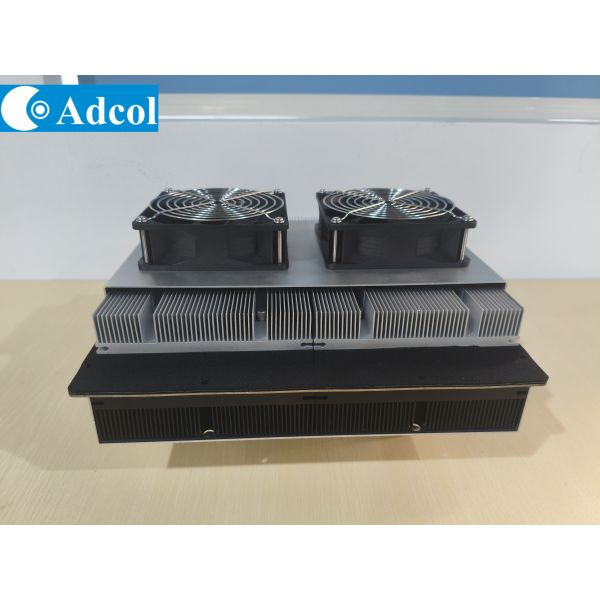

ATA300-24VDC Air to air thermoelectric Cooler Assembly

1.Product Introduction

The ATA300-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental

chambers. It can maintain ambient temperatures while removing up to 300W. This model is available

in 24VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient

to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

300W Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator

2.Features

  1. 300W capacity rated at ΔT = 0ºC,Tambient = 30°C
  2. Refrigerant free - environmentally friendly
  3. Wide operating temperature range of –10°C to +70°C
  4. Shift between heating and cooling without using a heater
  5. Reduced noise and vibration with no moving parts

3.Application

  1. Outdoor enclosures
  2. Outdoor/Indoor Kiosks and display
  3. Battery Cabinet
  4. Food/Consumer Refrigerator

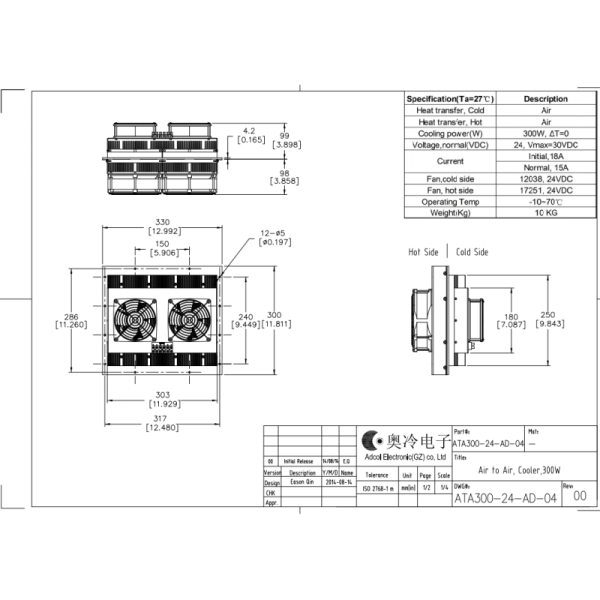

4.Design drawing

300W Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator

300W Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator300W Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator
