100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
Specifications
Brand Name :
Adcol
Model Number :
ATL100
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
Negotation
Payment Terms :
T/T, Paypal
Supply Ability :
10kPcs/Month
Delivery Time :
3-4 Weeks
Packaging Details :
Solid Carton Packaging
P/N :
ATL100-24VDC
Cooling Method :
Liquid Cool
Cooling Objective :
purified water
Cooling objective Contact Part :
Aluminum
Cooling Capacity :
100W
Fan Input Voltage :
24VDC
Peltier Input Voltage :
24VDC
Rated Consumption Current :
5.7A
Starting Current :
6.8A
Max Ambient Temperature :
60 degree
Electrical Connection :
Screw
Noise :
40 dB-A
Site of Use :
Indoor
Outer diameter of Pipe Connecting Port :
Dia 8
Dimensions :
124x122x97mm
Mass of Main Unit :
1.8kgs
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

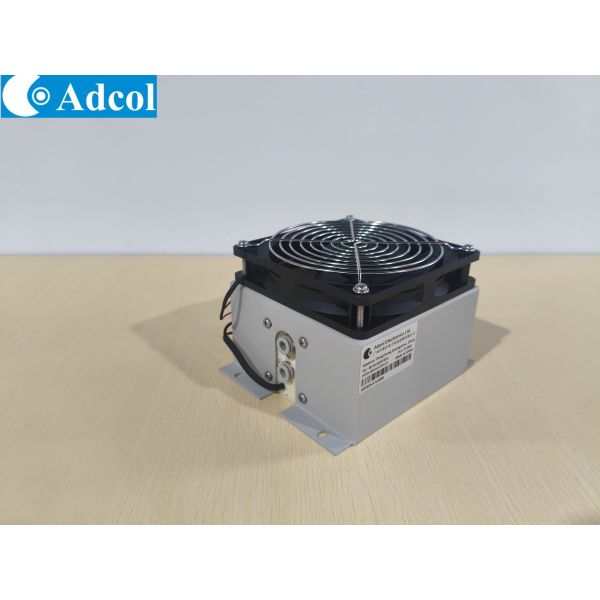

100W Thermoelectric air to Liquid Cooler

1.Product Introduction

The ATL100-24-Fan Thermoelectric air to Liquid are designed for electronic liquid cooling. They can cool
to 72˚F below ambient or maintain ambient temperatures while removing up to 100W. These models are
available in 24 VDC configurations.

100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

2.Product Features
  • 100W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Product Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser

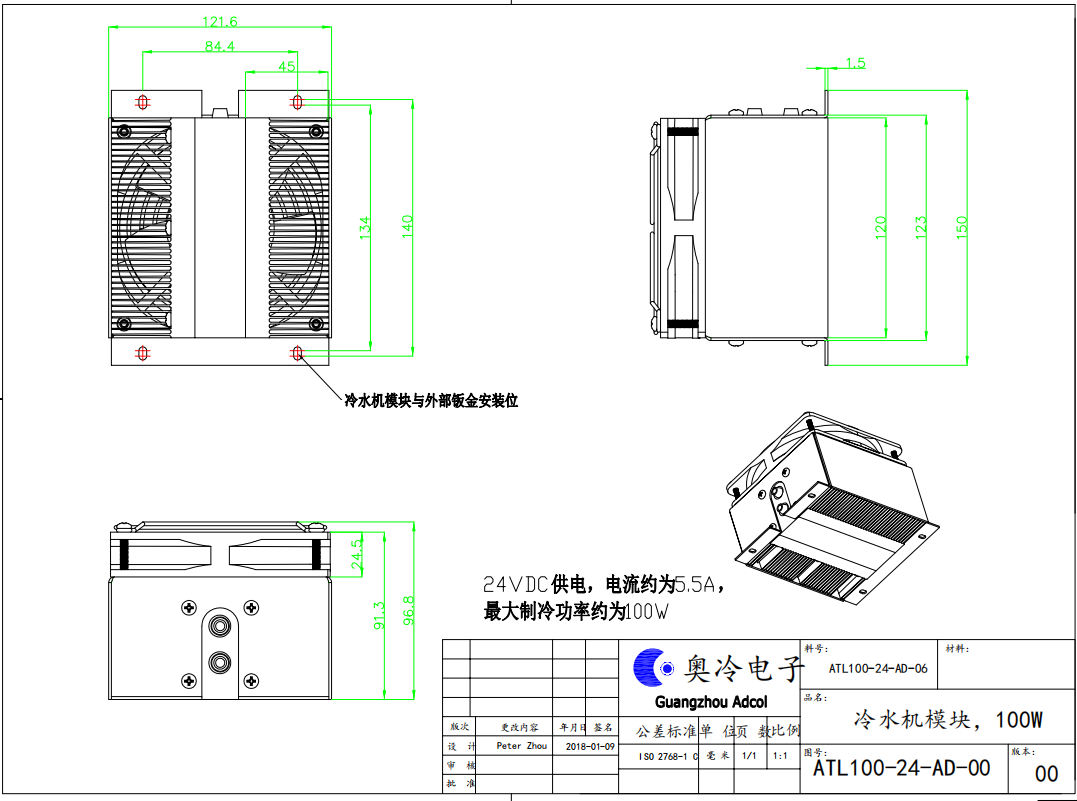

4.Design drawing

100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers

100W High-Performance Thermoelectric Liquid Cooler for Industrial and Medical Lasers
