Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
Specifications
Brand Name :
Adcol
Model Number :
ATA035-12VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATA035-12-00
Cooling Method :
Air Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
35W
Input Power :
50W
Heating Capacity :
85W
Hot/Cold side fan Current :
0.24/0.20 A
TEM Nominal/Startup Current :
3.9/5.0A
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
126mm x 100mm x 90mm
Weight :
0.8Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

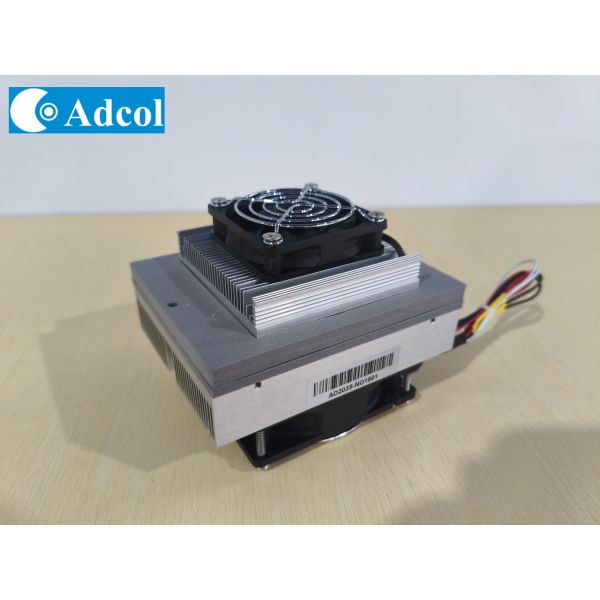

35W Air to air thermoelectric Cooler Assembly
1. Product Introduction
The ATA035-12 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 35W. This model is available in 12VDC configurations.
This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in
any orientation, offering design flexibility with solid-state reliability.
Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
2.Features
  • 35W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application
  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator

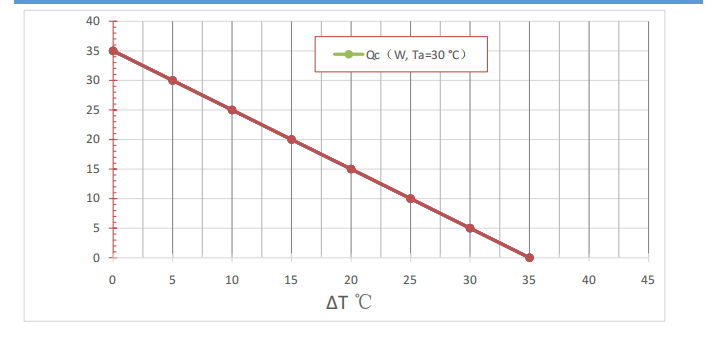

4. Performance Curve

Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications

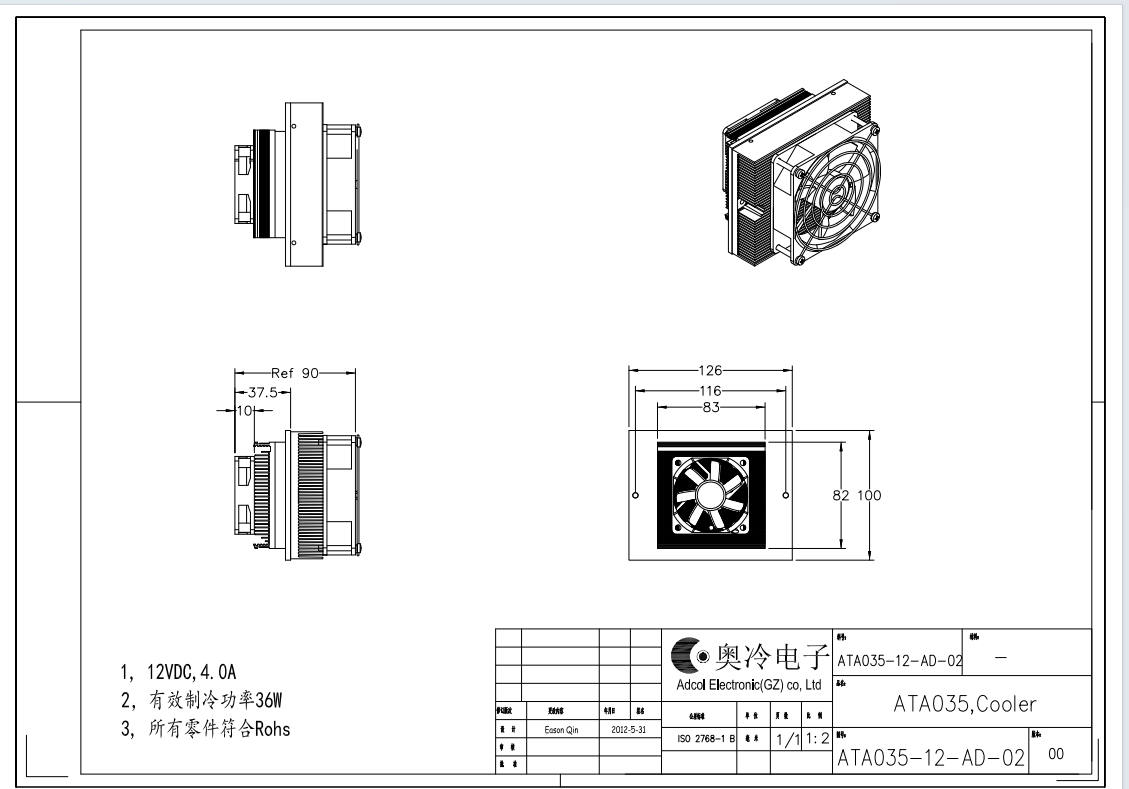

5. Design drawing

Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications

Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications

Adcol 35W Air to Air thermoelectric Cooler for Industrial Commercial and Home Applications
