Specifications
Brand Name :
Adcol
Model Number :
ATP050-12VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
P/N :
ATP050-12VDC
Cooling Method :
Plate Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
50W
Input Power :
90W
Heating Capacity :
130W
Hot/Cold side fan Current :
0.4 A / NA
TEM Nominal/Startup Current :
8.0/9.0A
Nominal/Max Voltage :
12/15 VDC
Overall dimension :
160mm x 122.4mm x 82mm
Weight :
1.2Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

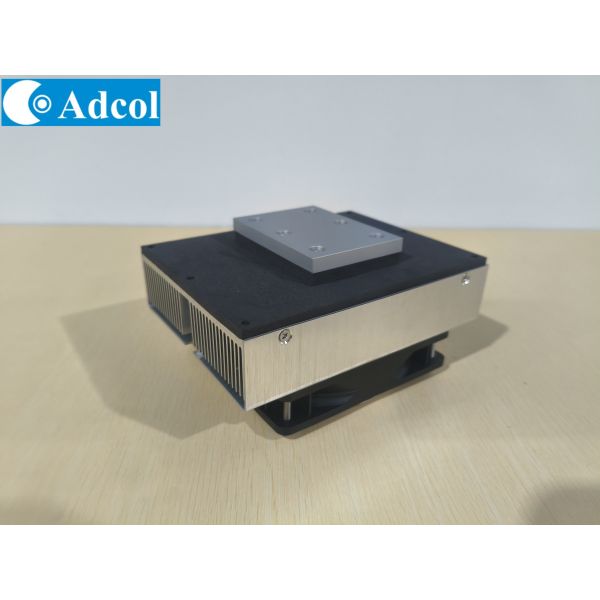

ATP050-12-00 Air to Plate thermoelectric Cooler Assembly
1. Product Introduction
The ATP050-12 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 50W. This model is available in 12VDC
configurations. This air Coldplate is virtually maintenance-free, with no filters ambient to change,
and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
50W Air to Plate thermoelectric Cooler for Medical diagnostics 、 Industrial device and Analytical instrument
2.Features
  • 50W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling

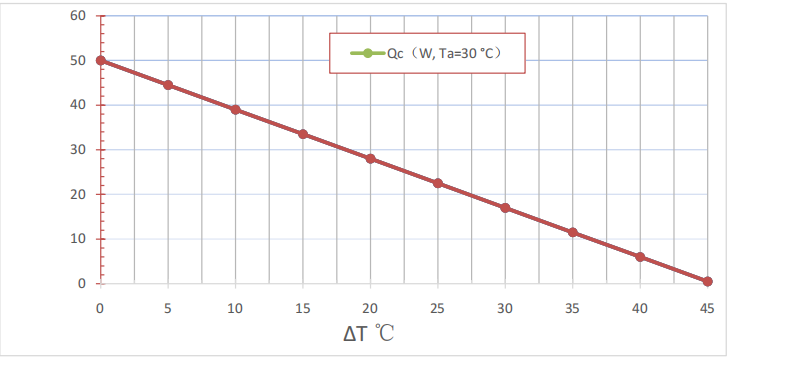

4. Performance Curve

50W Air to Plate thermoelectric Cooler for Medical diagnostics 、 Industrial device and Analytical instrument

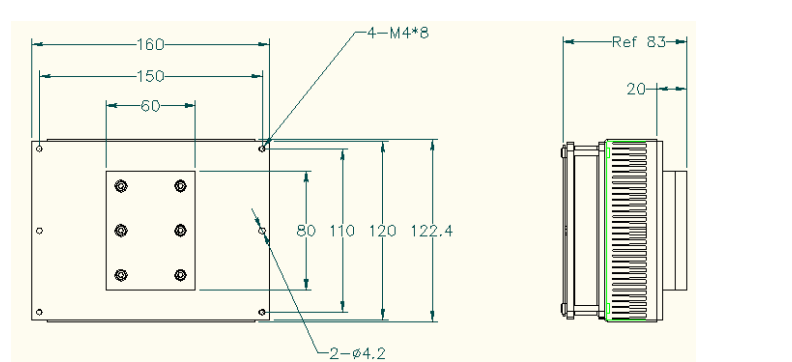

5. Design drawing

50W Air to Plate thermoelectric Cooler for Medical diagnostics 、 Industrial device and Analytical instrument

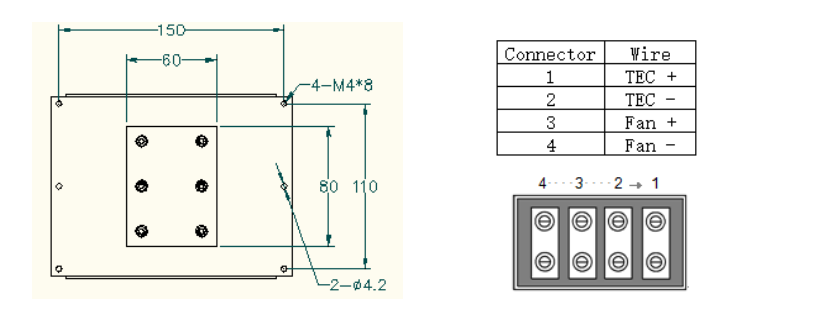

6. Installation cut hole and Connector

50W Air to Plate thermoelectric Cooler for Medical diagnostics 、 Industrial device and Analytical instrument

50W Air to Plate thermoelectric Cooler for Medical diagnostics 、 Industrial device and Analytical instrument

50W Air to Plate thermoelectric Cooler for Medical diagnostics 、 Industrial device and Analytical instrument
