Specifications
Brand Name :
Adcol
Model Number :
ATL080-24VDC
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500Pcs per month
Delivery Time :
3-4 Weeks
Packaging Details :
Solid Carton Packaging
P/N :
ATL080-24-00
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
80W
Input Power :
115W
Outer dim for pipe connecting :
Dia 9.5 mm
Material of exchanger :
Copper
Hot/Cold side fan Current :
0.35 A / NA
TEM Nominal/Startup Current :
4.2/5.3A
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
203mm x 155mm x 147mm
Noise :
45 dB
Weight :
3.2Kg
Life Time :
>=70,000 Hours
Tolerance :
10%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

80W 24VDC Peltier Thermoelectric Liquid Cooler Water Cycle Refrigeration​

1.Product Introduction

The ATL080-24 Thermoelectric air Liquid is designed for cooling objects via liquid to transfer heat.
Heat is absorbed through a liquid exchanger and dissipated by high density heatsink with fan.
It could remove up to 80W cooling, and is available in 24VDC configurations. Also it is virtually
maintenance-free, and can be mounted in any orientation, offering design flexibility with solid-state reliability

80W Thermoelectric Liquid Cooler Water Cycle Refrigeration​ The Best Choice for Analytical Instrumentation and Medical Diagnostics

2.Product Features
  • 80W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts



3.Product application

• Analytical instrumentation

• Medical diagnostics

• Photonics laser systems
• Industrial instrumentation

• Food and beverage cooling

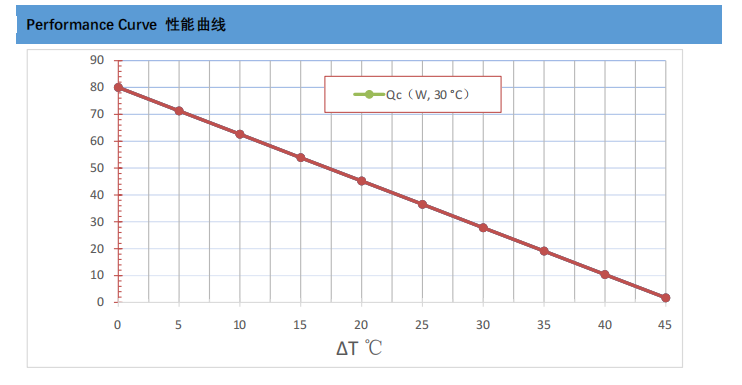

4.Performance Curve

80W Thermoelectric Liquid Cooler Water Cycle Refrigeration​ The Best Choice for Analytical Instrumentation and Medical Diagnostics

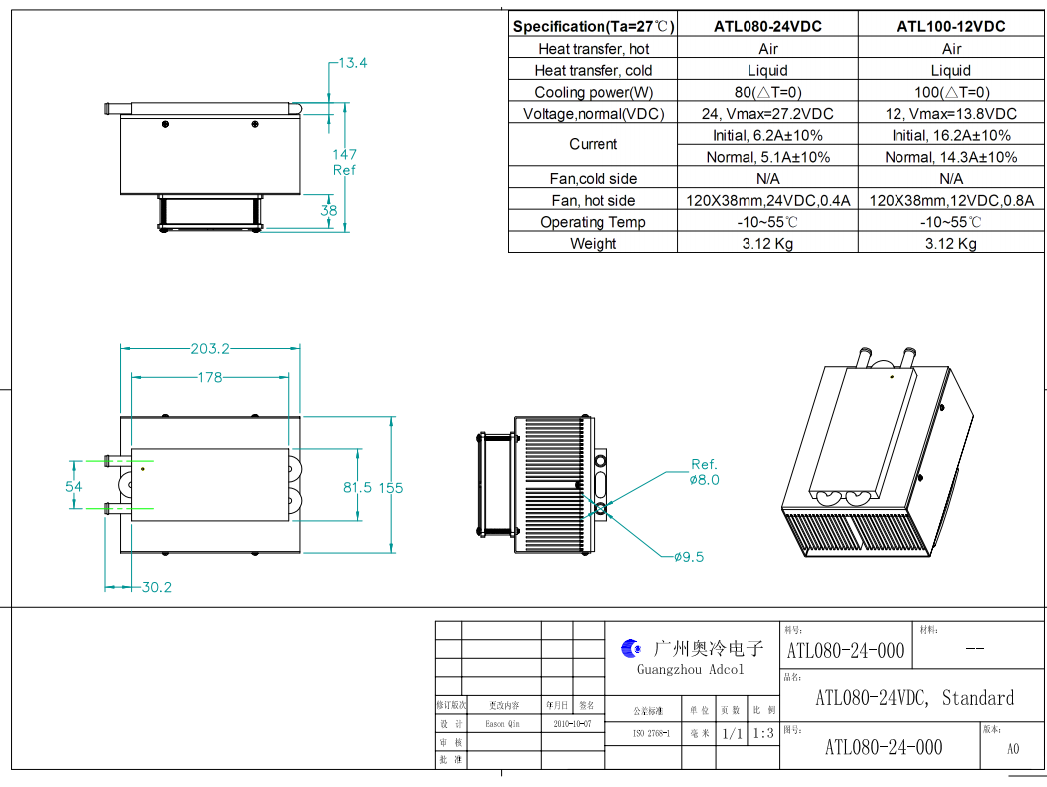

5.Design drawing

80W Thermoelectric Liquid Cooler Water Cycle Refrigeration​ The Best Choice for Analytical Instrumentation and Medical Diagnostics

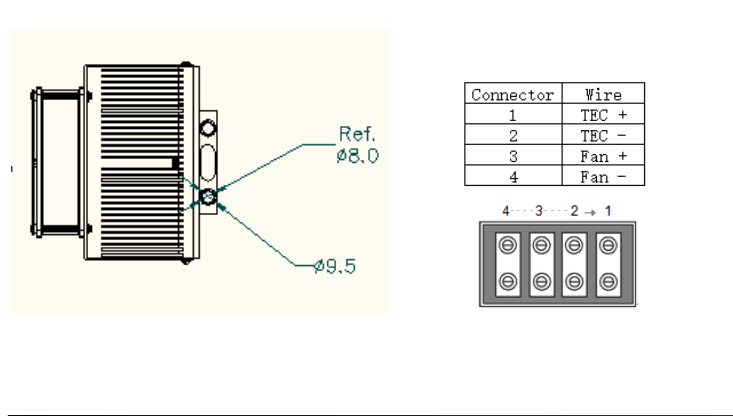

6.Installation cut hole and Connector

80W Thermoelectric Liquid Cooler Water Cycle Refrigeration​ The Best Choice for Analytical Instrumentation and Medical Diagnostics
