Specifications
Brand Name :
Adcol
Model Number :
ARC150-220
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
100Pcs/Month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
Cooling capacity, Watt :
149
Heating Capacity，Watt※ :
150-300
Current, Amperes, 115VAC (230VAC) :
2.0(1.0)
Input power, Watts :
230
Fluid capacity, mL :
250
Maximum flow rate, LPM :
6
Input voltage, VAC :
100 ~ 240
Frequency, Hz :
50/60
Humidity，RH% :
≤85% RH
Weight, kg :
11.5
Fan Bearing Type :
Hydraulic Bearing
Material :
Copper and Aluminum
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

150W Thermoelectric Recirculating Liquid Chiller
1.Product Introduction
The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by
controlling the temperature of a coolant in a liquid circuit. The coolant is re-circulated using a pump
with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density
heat sinks equipped with brand name fans.The thermoelectric modules are custom designed to achieve
long life operation. The unit is regulated with an easy to use digital temperature controller and is housed
inside an aesthetic sheet metal casing. Also the chiller can provide the heating function to keep the circle
system at some Constant temperature point in the range.
2.Technical Specification
  • Fast cooling and heating
  • Easy to operate
  • Environmentally friendly and refrigerant-free
  • Quiet
  • Programmable Digital Temperature Controller/ Auto-tune of PID control terms
  • System Error Monitor and alarm
  • Fluid inlet and outlet quick disconnect
  • High reliability
3.Typical Application
  • Medical Imaging Systems
  • Medical Lasers
  • Photonics Laser Systems
  • Industrial Instrumentation
  • Laboratory Testing

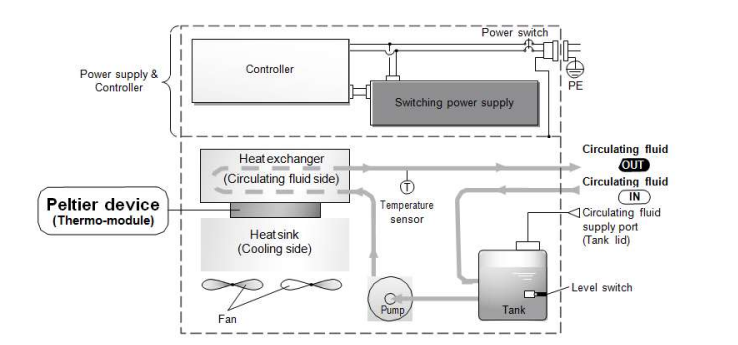

4.Structural Schematic

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

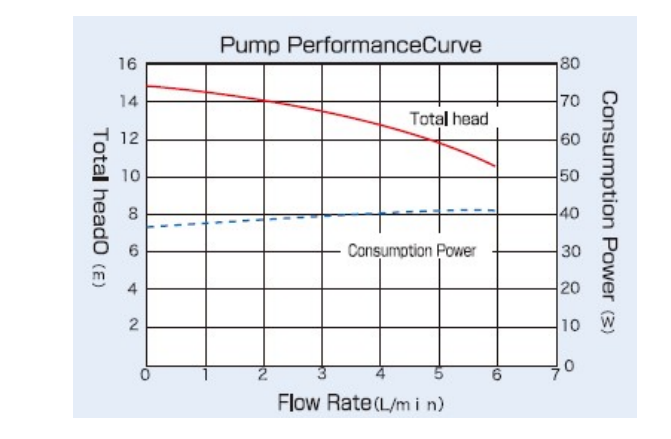

5.Pump Capacity

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

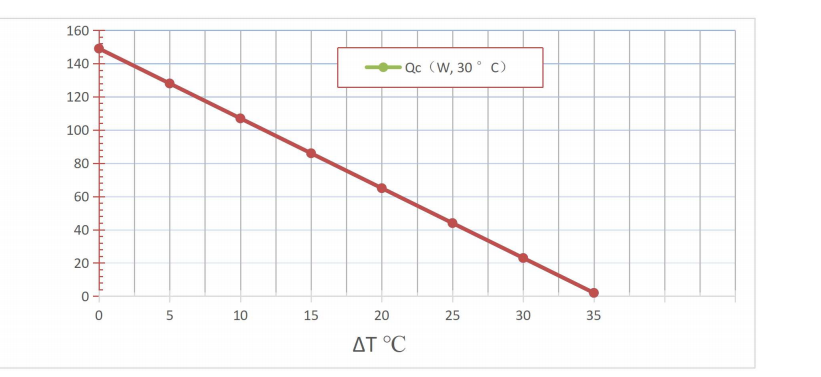

6.Cooling Capacity

Delta T =T ambient – T liquid – Degree C;
Cooling Capacity Qc – W
Liquid: Pure Water with current rate of Alcohol
ST: Standard unit, cooling only

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers

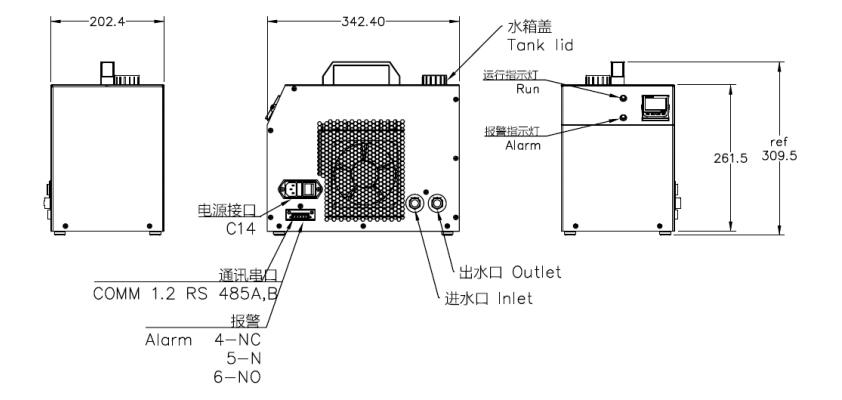

7. Dimension(mm)

150W ARC Series is a bench top re-circulating chiller Applied to Medical Imaging Systems and Medical Lasers
