Specifications
Brand Name :
Adcol
Model Number :
ATA120-24VDC
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
Negotation
Payment Terms :
T/T, Paypal
Supply Ability :
10kPcs/Month
Delivery Time :
3-4 Weeks
Packaging Details :
Solid Carton Packaging
P/N :
ATA120-24VDC
Cooling Method :
Air Cool
Cooling Objective :
Air Force
Operation temperature/humidity :
-30 to 85℃, 35 to 80% RH (No condensation）
Storage temperature/humidity :
-40 to 90℃, 35 to 90% RH (No condensation）
Cooling Capacity :
122 W
Input Power :
134 W
Run Current :
5.6A
Peak Current :
6.5A
Voltage :
24 VDC
Vmax :
27.2 VDC
Weight :
4KG
Life Time :
70000 Hour
Tolerance :
5%
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

120W Air-to-Air Thermoelectric Assembly

1.Product Introduction

ATA120-24VDC Thermoelectric air conditioners are designed for electronic cabinets,
refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain
ambient temperatures while removing up to 120W cooling. Use 24VDC configuration and up
to about 90% COP; This air conditioner is virtually maintenance-free, with no filters to change,
and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

120W Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers
2.Product Features
  • Precise Temperature Control
  • Refrigerant free - environmentally friendly
  • Automatic shift between heating and cooling
  • Low noise and vibration with no moving parts
  • Rohs-Compliant

3.Product Application
  • Medical & Analytical
  • Industrial cabinet
  • Laser
  • Semiconductor

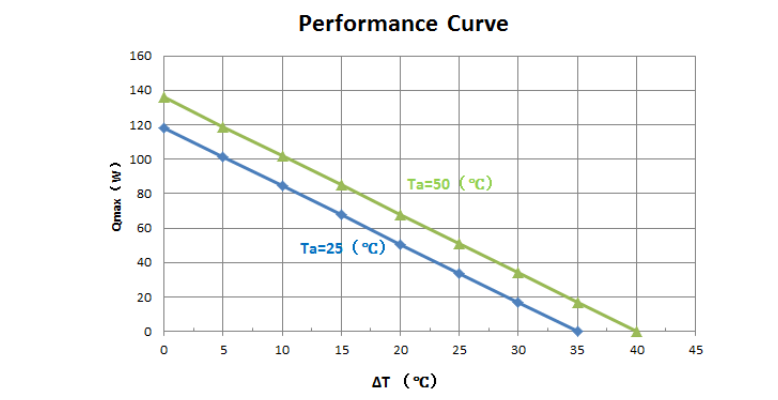

4.Performance Curve

120W Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers

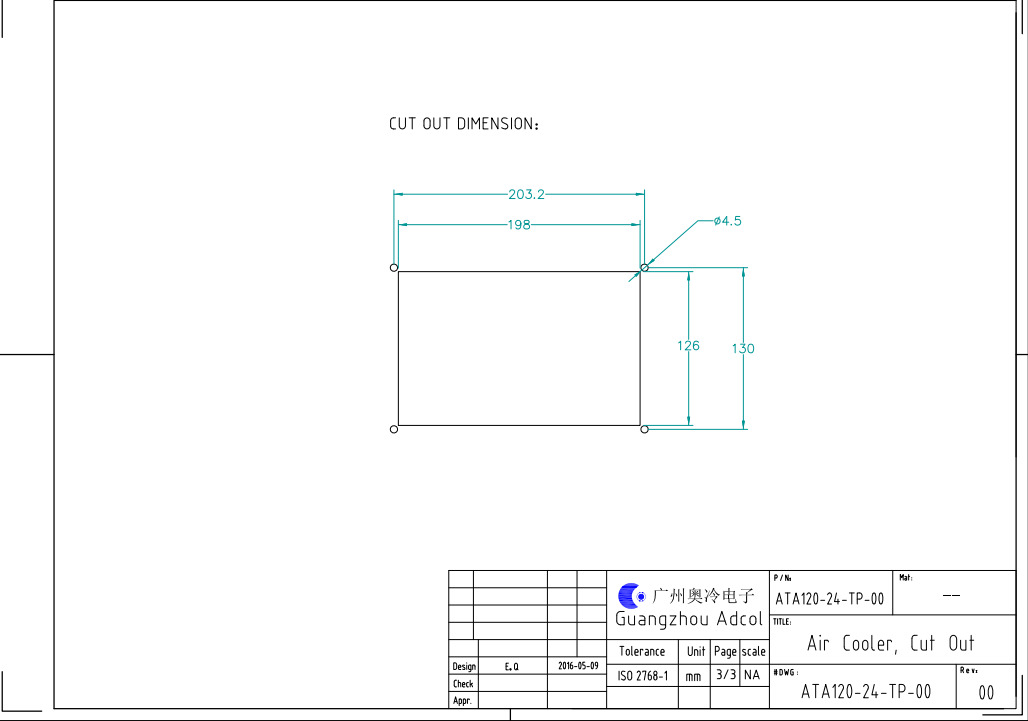

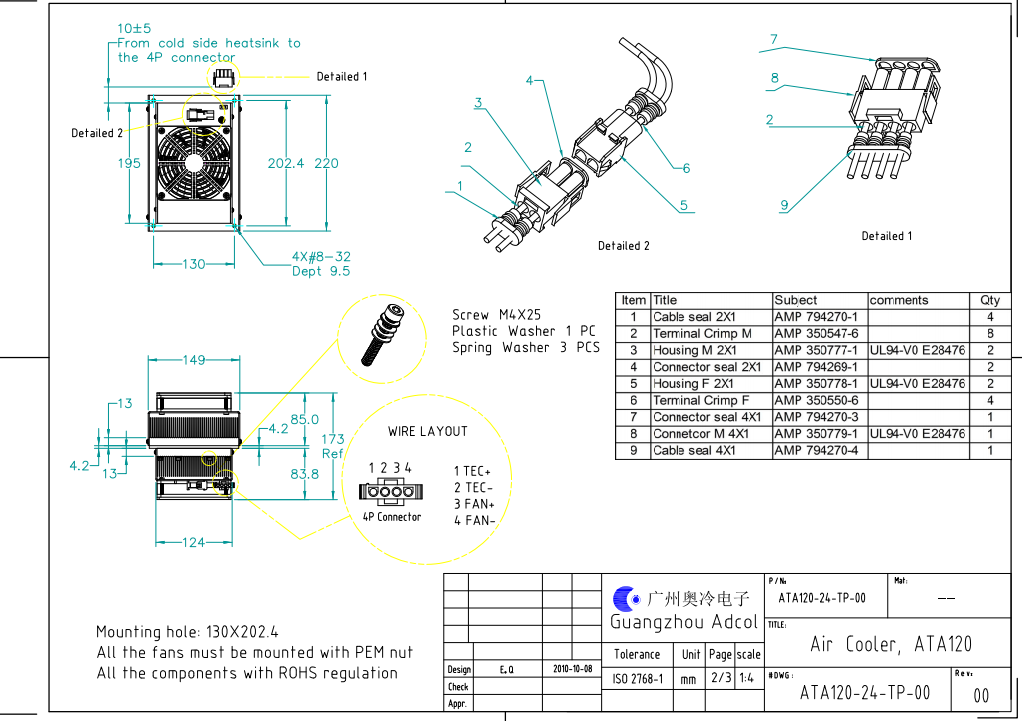

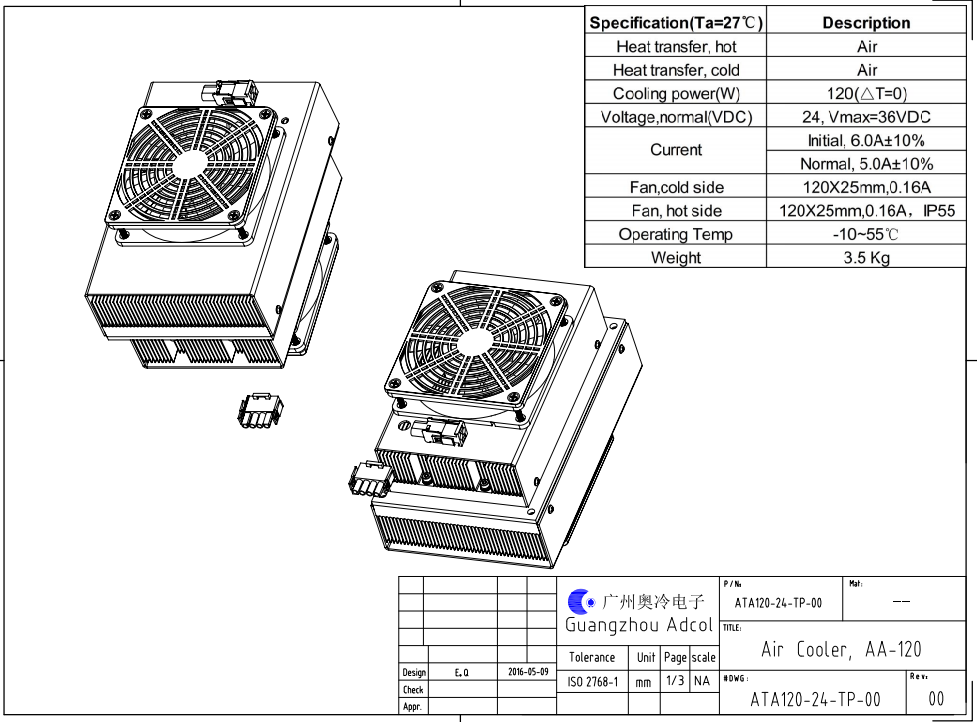

5.Design drawings

120W Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers

120W Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers

120W Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers

120W Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers
