Specifications
Payment Terms :
T/T , Paypal
Life Time :
>=70.000 Hours
Supply Ability :
500pcs per month
Tolerance :
10%
Model Number :
ATP160-24VDC
Cooling Method :
Plate Cool
MOQ :
1EA
Delivery Time :
3 - 4 weeks
Cooling Capacity :
160W
Weight :
5KG
Price :
Negotiation
Nominal/Max Voltage :
24 VDC
Packaging Details :
Solid carton packaging
Certification :
ISO9001 , CE
Radiating method :
Force Air
Place of Origin :
CHINA
Ambient temperature/humidity :
-20 to 60°C
Brand Name :
Adcol
P/N :
ATP160-24VDC
Description

ATP160-24VDC

Air to Plate thermoelectric Cooler Assembly

1.Product Description

The ATP160-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
It can maintain ambienttemperatures while removing up to 80W. This model is available in24VDC
configurations. This air cold plate is virtually maintenance-free, with no filters ambient to change,
and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

2.Features

  • 80W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling

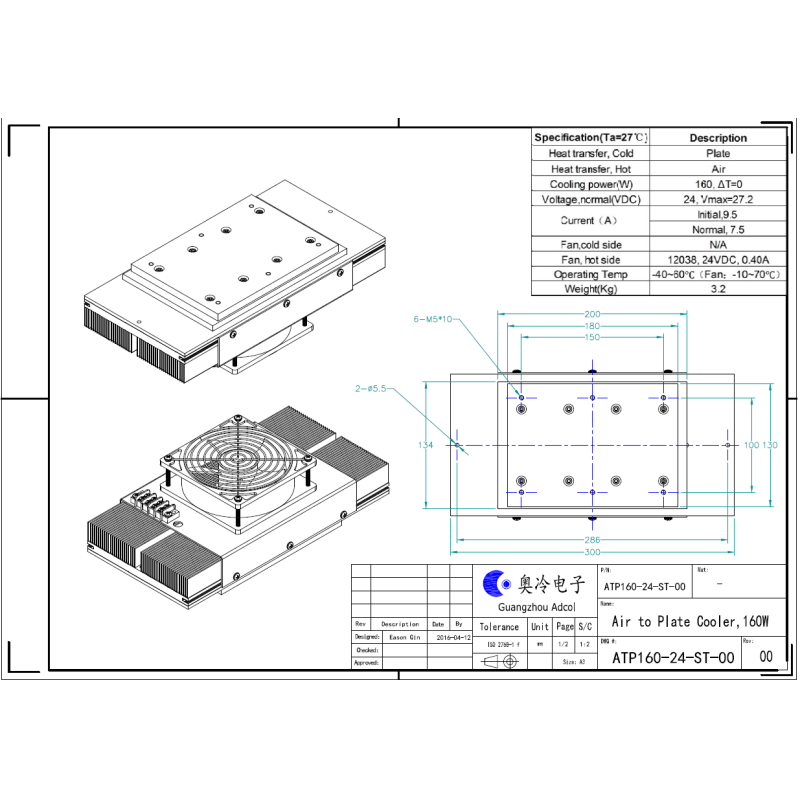

4. Drawing

24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial

24VDC 160W Air Cold Plate with Reduced Noise and Vibration No Moving Parts for Medical and Industrial
