200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
Specifications
Payment Terms :
T/T, Paypal
Heating Capacity :
520W
Hot fan :
IP55
Shroud :
SS 304
Noise :
50 dB
Model Number :
ATA200-24VDC
Cooling Method :
Air Cool
Price :
Negotiation
Input Power :
330W
Weight :
9.8kg
Certification :
ISO9001 , CE
Radiating method :
Air Cool
MOQ :
1EA
Delivery Time :
3 - 4 weeks
Cooling Capacity :
200W
TEM Nominal/Startup Current :
6.1/7.2A
Tolerance :
10%
Supply Ability :
500pcs per month
Hot/Cold side fan Cument :
0.30/0.18 A
Life Time :
>=70,000 Hours
Brand Name :
Adcol
P/N :
ATA200-24VDC
Packaging Details :
Solid carton packaging
Nominal/Max Voltage :
24/27VDC
Place of Origin :
China
Ambient temperature/humidity :
-20 to 60°C
Description

ATA200-24VDC Air to air thermoelectric Cooler Assembly

1.Product Introduction
The ATA200-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental

chambers. lt can maintain ambient temperatures while removing up to 148w. This modelis available

in 24VDC configurations. This air conditioner isvirtually maintenance-free, with no filters ambient to

change.and it can be mounted in any orientation, offering designflexibility with solid-state reliability.

200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures

2.Features

  • 200W capacity rated at ΔT= 0℃,Tambient = 30°C
  • Refrigerant free-environmentally friendly
  • Wide operating temperature range of-20°Cto +60°℃
  • CShift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application

  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerato

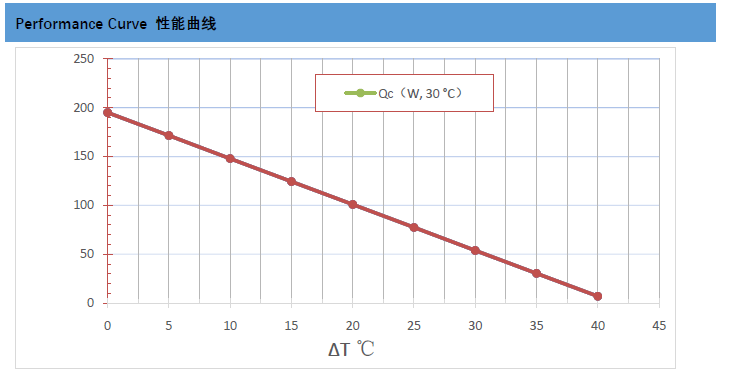

4.Performance Curve

200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures

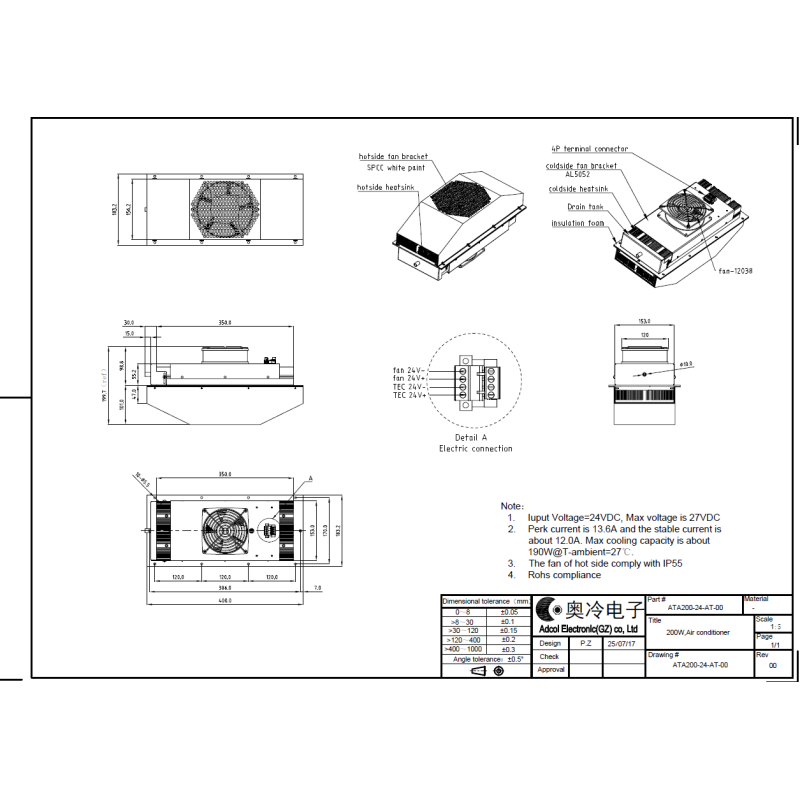

5.Dimension

200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures

200W Air to air thermoelectric Cooler with SS304 shroud and IP56 hot fan application Outdoor enclosures
