Base Station Thermoelectric Peltier Air Cooler TEC Conditioner
Base Station Thermoelectric Peltier Air Cooler TEC Conditioner
Base Station Thermoelectric Peltier Air Cooler TEC Conditioner
Base Station Thermoelectric Peltier Air Cooler TEC Conditioner
Specifications
Brand Name :
Adcol
Model Number :
ATA120-24VDC
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
500Pcs per month
Delivery Time :
3 - 4 Weeks
Packaging Details :
Solid Carton Packaging
Cool Capacity :
120W
TEC Current :
5.2A
TEC Start Current :
6.2A
Unit Weight :
Est. 4.2kgs
Install Hole Size :
198*126mm
Dimension :
220*149*173 (ref)
Description

Base Station Thermoelectric Peltier Air Cooler TEC Conditioner​

ATA120-24VDC-TP-00 Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures while removing up to 120W cooling. Use 24VDC configuration and up to about 90% COP; This air conditioner is virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

1 Wire:

Connector Wire
1 TEC +
2 TEC -
3 FAN +
4 FAN -


2 Specification:

items: Data
Part Number: ATA120-24VDC-TP-00
Description: Air to Air TEC cooling
Cool Capacity 120W
Input Voltage DC24V
Working Temperature 0~60˚C
TEC Current 5.2A
TEC Start Current 6.2A
Hotside Fan current 0.2A (IP55)
Coldside Fan Current 0.2A
Unit Weight Est. 4.2kgs
Install hole size 198x126mm
Dimension (LxWxH mm) 220x149x173 (Ref)

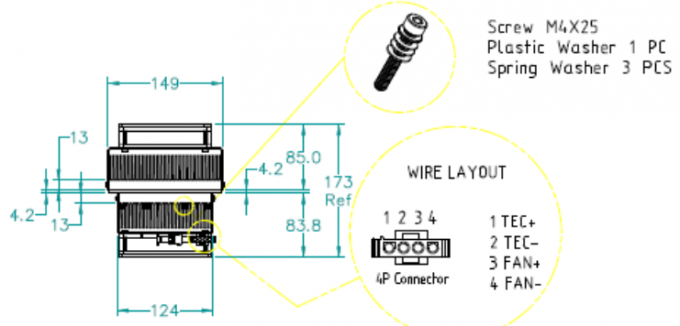

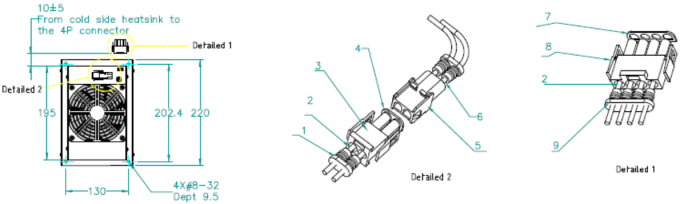

3 Drawing:

Base Station Thermoelectric Peltier Air Cooler TEC Conditioner

Base Station Thermoelectric Peltier Air Cooler TEC Conditioner

Base Station Thermoelectric Peltier Air Cooler TEC Conditioner

4 Installation Holes and cut Window:

Base Station Thermoelectric Peltier Air Cooler TEC Conditioner

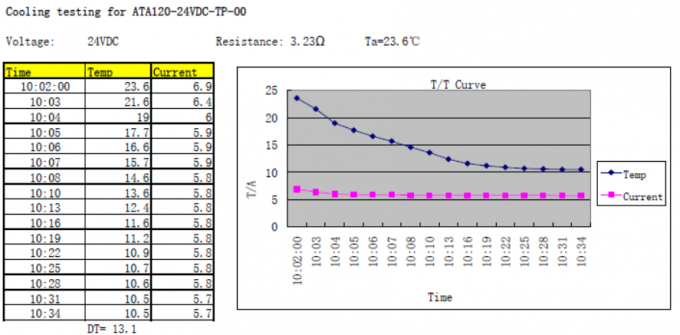

5 Performance Curve:

Base Station Thermoelectric Peltier Air Cooler TEC Conditioner
Base Station Thermoelectric Peltier Air Cooler TEC Conditioner
