160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
Specifications
temperature sensor :
PT100 3wire
Payment Terms :
T/T , Paypal
Life Time :
>=70.000 Hours
Supply Ability :
500pcs per month
Cooling Method :
Plate Cool
Model Number :
ATP160-24VDC
cooling power :
160W
Tolerance :
10%
MOQ :
1EA
Delivery Time :
3 - 4 weeks
input voltage: :
100-240VAC, 50/60HZ
Price :
Negotiation
Weight :
9.3KG
Packaging Details :
Solid carton packaging
Radiating method :
Force Air
Certification :
ISO9001 , CE
Ambient temperature/humidity :
-20 to 60°C
Place of Origin :
CHINA
P/N :
ATP160-24VDC
Brand Name :
Adcol
Description

ATP160-24VDC

Air to Plate thermoelectric Cooler Assembly

1.Product Description

ATP160‑24 Air‑to‑Plate Cooler provides reliable thermal control for sealed cabinets and precision
instruments. With cold‑plate contact cooling and PID regulation, it ensures stable temperature inside
dust‑tight enclosures. Universal 100‑240VAC input supports worldwide deployment.
This cooler is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any
orientation, offering design flexibility with solid-state reliability.

160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation

2.Features

  • 160W cooling capacity (@ΔT=0℃), 200W input power, 50/60 Hz
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
  • PID temperature control with 3‑wire PT100 sensor

3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling

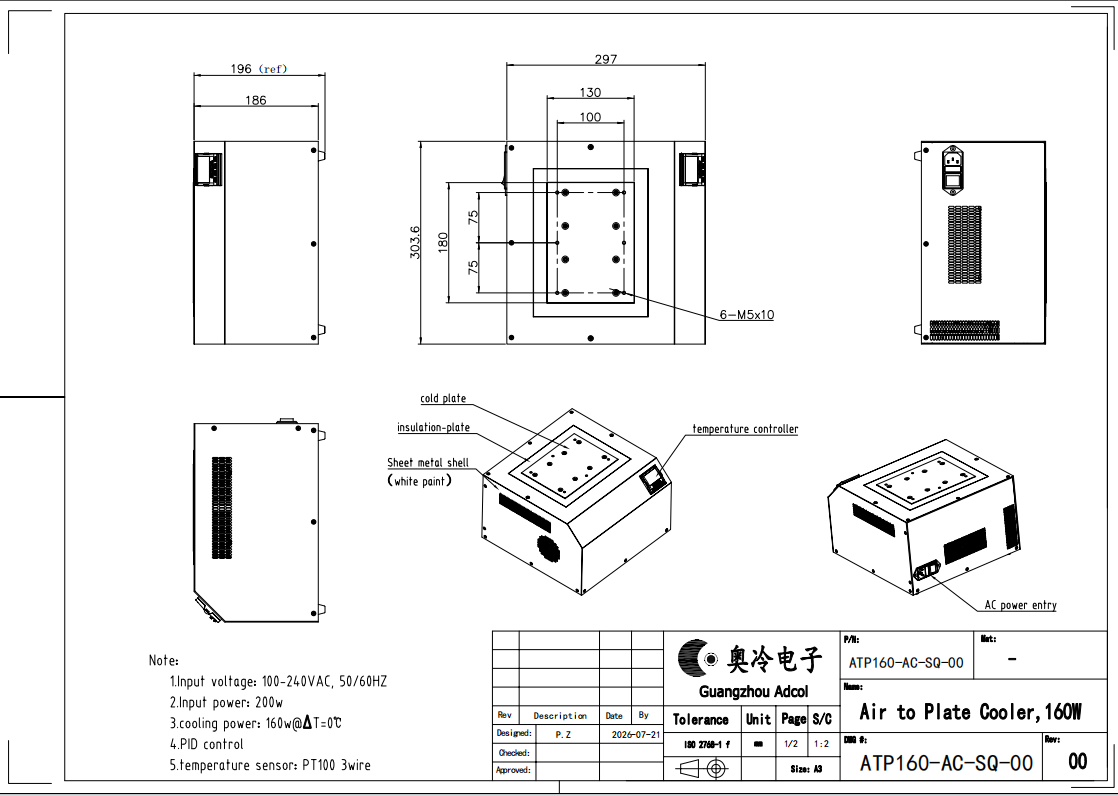

4. Drawing

160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation

160W air to plate cooler, 100‑240VAC PID Controlled , sealed instrument cooler, precision enclosure thermal control, with no filters ambient, it can be mounted in any orientation
