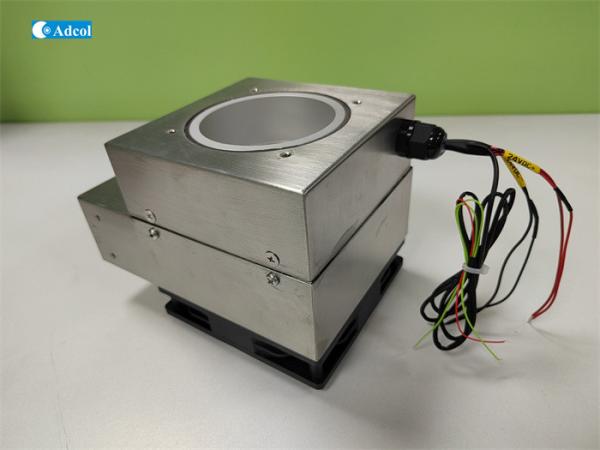

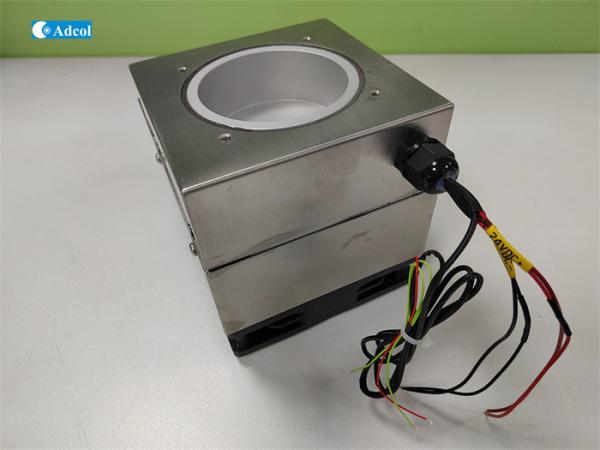

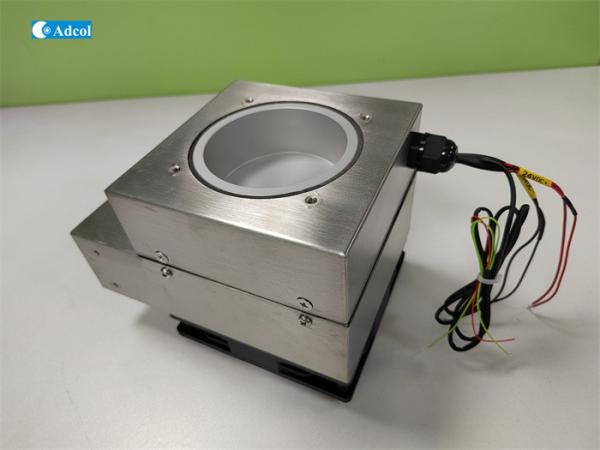

Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment

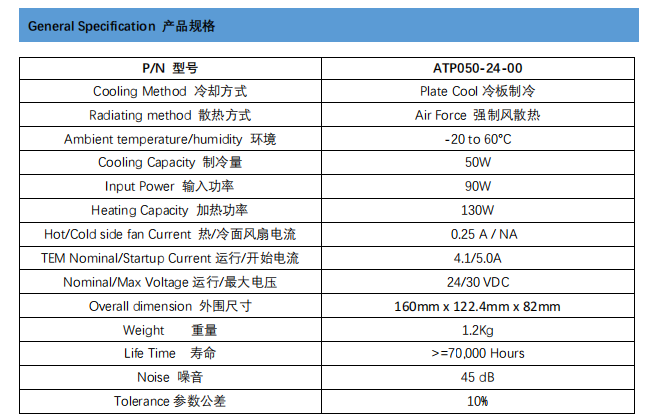

Specifications
Brand Name :
Adcol
Model Number :
ATP050-24-BL-00
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
TBA
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
2-3 weeks
Packaging Details :
Carton
Input power :
110W
Input Voltage :
24VDC , Vmax 30VDC
Max Cooling Power :
50W
Running Stable Current :
4.5A
Max Heating Power :
150W
Sensor Type :
NTC
Description

Peltier Cooler Thermoelectric Fermentation Tank Plate Cooler


Peltier effect, the cooling of one junction and the heating of the other when electric current is maintained in a circuit of material consisting of two dissimilar conductors; the effect is even stronger in circuits containing dissimilar semiconductors. In a circuit consisting of a battery joined by two pieces of copper wire to a length of bismuth wire, a temperature rise occurs at the junction where the current passes from copper to bismuth, and a temperature drop occurs at the junction where the current passes from bismuth to copper. This effect was discovered in 1834 by the French physicist Jean-Charles-Athanase Peltier.

Applications of Peltier Thermoelectric Cooler

Industrial electronics and telecommunications

Thermoelectric cooling assemblies and conditioners with different functions

Thermoelectric cooling devices for cupboards and electronic equipment blocks

Systems of temperature control of the critical parts and components of different lathes and machines

Heat flow probes

Production of semiconductor integrated micro chips

Laser equipment

Medical equipment

Transport

Special equipment

Features

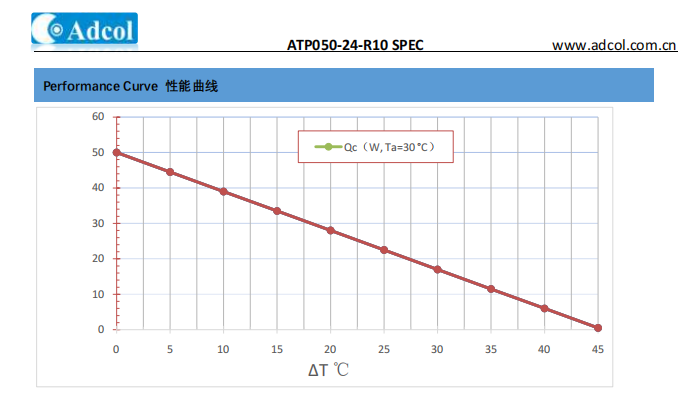

50W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts
Application
Analytical instrument
Medical diagnostics
Industrial device
Food and Beverage Cooling
Thermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical EquipmentThermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical EquipmentThermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical EquipmentThermoelectric Fermentation Tank Peltier Plate Cooler 24VDC For Medical Equipment
