300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
Specifications
Brand Name :
Adcol
Model Number :
ARC300
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
100Pcs/Month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging
Cooling capacity, Watt :
297
Heating Capacity，Watt :
300-600
Current, Amperes, 115VAC (230VAC) :
3.9(2.0)
Input power, Watts :
450
Fluid capacity, mL :
350
Weight, kg :
16
Maximum flow rate, LPM :
6
Input voltage, VAC :
100-240
Humidity，RH% :
≤85% RH
Frequency, Hz :
50/60
Compliance :
UL61010-1/IEC61010-1 EN 61326-1:2006 EN 61000-3-3:2008
Controller accuracy, °C :
± 0.10
Temp. stability, ℃ :
± 0.05
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

300W Thermoelectric Recirculating Liquid Chiller

1.Product Introduction

  • The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by controlling the temperature of a coolant in a liquid circuit.
  • The coolant is re-circulated using a pump with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density heat sinks equipped with brand name fans.
  • The thermoelectric modules are custom designed to achieve long life operation. The unit is regulated with an easy to use digital temperature controller and is housed inside an aesthetic sheet metal casing.
  • Also the chiller can providethe heating function to keep the circle system at some Constant temperature point in the range.
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
2.Standard Features
  • Fast cooling and heating
  • Easy to operate
  • Environmentally friendly and refrigerant-free
  • Quiet
  • Programmable Digital Temperature Controller/ Auto-tune of PID control terms
  • System Error Monitor and alarm
  • Fluid inlet and outlet quick disconnect
  • High reliability
3. Typical Application
  • Medical Imaging Systems
  • Medical Lasers
  • Photonics Laser Systems
  • Industrial Instrumentation
  • Laboratory Testing
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
4. Structural Schematic
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
5.Cooling Capacity
Delta T =T ambient – T liquid – Degree C;
Cooling Capacity Qc – W
Liquid: Pure Water with current rate of Alcohol
ST: Standard unit, cooling only
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs

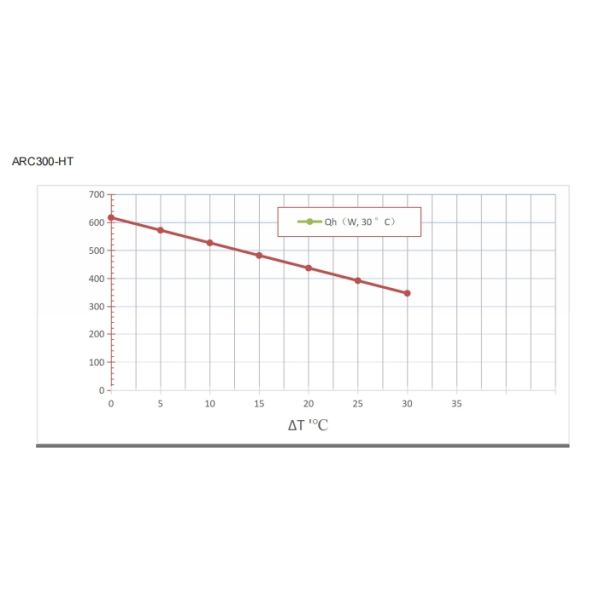

6.Heating Capacity
Delta T’=T liquid – T ambient – Degree C;
Heating Capacity Qh - W
Liquid: Pure Water
HT: with Heater by reverse TE module Connection
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
7.Dimension(mm)
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs
