Specifications
Brand Name :
Adcol
Model Number :
ATL400-24-00
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1EA
Price :
Negotiation
Supply Ability :
500Pcs/Month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid Carton Packaging
Payment Terms :
T/T , Paypal
P/N :
ATL400-24-00
Cooling Method :
Liquid Cool
Radiating method :
Air Force
Ambient temperature/humidity :
-20 to 60°C
Cooling Capacity :
370W
Input Power :
470W
Nominal/Max Voltage :
24/30 VDC
Overall dimension :
275mm x 158mm x 170mm
Weight :
6.8Kg
Life Time :
>=70,000 Hours
Description
ATL400-24 Thermoelectric Cooler: 370W Capacity, Refrigerant Free, Wide Temperature Range

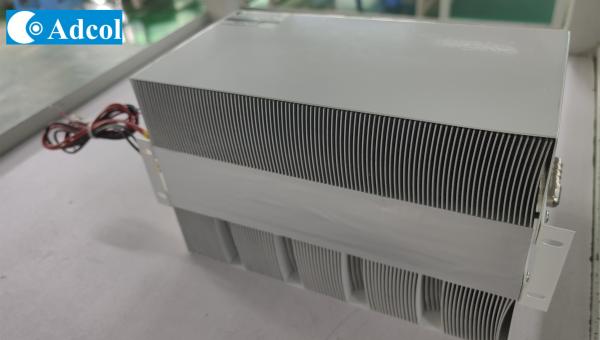

The ATL400-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat. Heat is absorbed through a liquid
exchanger and dissipated by high density heatsink with fan. It could remove up to 370W cooling, and is available in 24VDC
configurations. Also it is virtually maintenance-free, and can be mounted in any orientation, offering design flexibility with
solid-state reliability.
Features
  • 370W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts
Application
  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser
