Specifications
Brand Name :
Adcol
Model Number :
ARB320-02
Certification :
ISO9001 , CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T , Paypal
Supply Ability :
200pcs per month
Delivery Time :
3 - 4 weeks
Packaging Details :
Solid carton packaging, wooden case
P/N :
ARB320-02
Control Method :
Cooling/heating automatic PID contro
Heat Radiation :
Peltier element(Liquid-Cooled
Operating Temp :
0~60℃(for Water ≥4℃)
Temp. stability :
±0.04℃
Temp. distribution :
±0.04℃
Cooling Capacity :
320W @T-bath=25℃;T-facility=25℃
Heating Capacity :
700W @T-bath=25℃;T-facility=25℃
Bath Liquid :
Water : 4-60℃ Ethylene glycol-Water(≤50%) : 0-60℃
Drain Port size :
CPC Coupling PLCD 16004
Power supply :
94~265 VAC, Single phase, 50/60HZ, 600W
Over Current Protection :
Rated current, 10A
Serial COMM :
RS485( RS 232 Optio
Alarm Output :
High/Low temp alarm, Output cutoff alarm
Temp. Sensor :
PT100, 3 wire
Size bath :
W300xD350xH400mm Usable Dept: 370mm
Size overall :
W350xD510xH550mm
Weight :
Approx. 25KG
Description

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

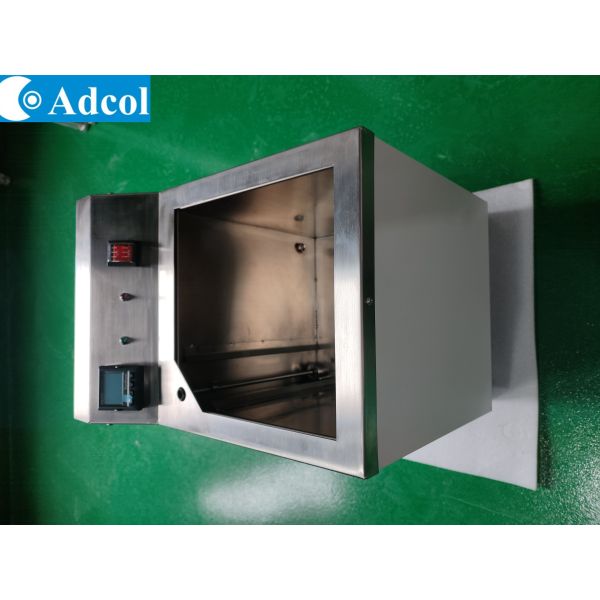

320W Thermoelectric Recirculating Liquid Bath

1.Introduction:


Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range

of liquid solutions, and can be used for cooling &heating in thermal test, Reactor Vessels,

Evaporators, Reaction Calorimetry, Physical and chemical analysis, Life science and other

relative applications.


320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

2.Technical Specifications:
Standard Features

  • Fast cooling and heating with precise temperature
  • Easy to operate
  • Quiet
  • Programmable Digital Temperature Controller
  • Auto-tune of PID control terms
  • System Error Monitor and alarm
  • Fluid inlet and outlet quick disconnect
  • High reliability

3.Application

  • Evaporation of chemicals for MOCVD
  • Temperature control of diffusion gas
  • Thermal test with immersion
  • Indirect temperature control of chemicals and liquid with high viscosity

4. Performance Chart

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

5.Design drawings

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions
