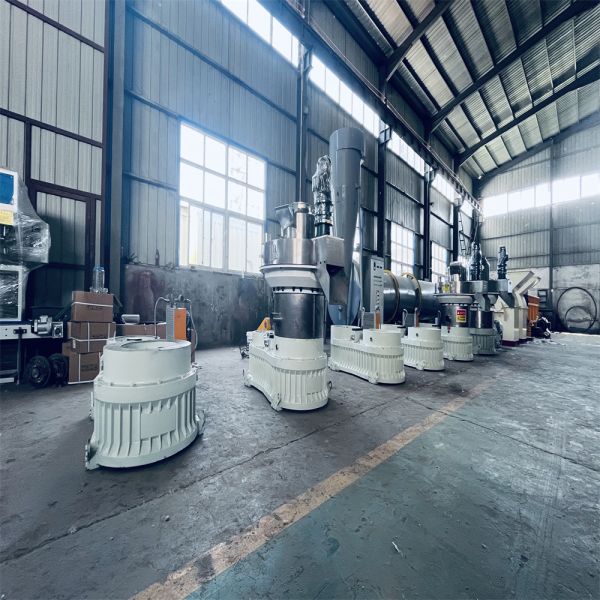

High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production
Specifications
Brand Name :
Eternalwin
Model Number :
EWVR600
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99set
Delivery Time :
7-15days
Packaging Details :
Wood Packing
Description

Ring Die Wood Pellet Machine - Professional Biomass Pelletizing Equipment

Our ring die wood pellet machine is a high-efficiency, stable and energy-saving pelletizing equipment designed for biomass raw materials. It realizes the recycling of agricultural and forestry wastes by compressing various woody and straw materials into high-density pellets, which are widely used as clean energy and feed. With advanced ring die technology and precise transmission system, the machine ensures high pellet forming rate and long service life, making it an ideal choice for your production line.

High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production

Core Features

  • Vertical Feeding & Uniform Distribution: Adopts vertical feeding design, materials directly enter the pelleting chamber, avoiding jamming. The rotating frame plate realizes centrifugal material distribution, ensuring even contact between materials and the die.
  • High-Quality Ring Die & Pressure Roller: The ring die is made of high-grade alloy steel with carburizing and quenching treatment, featuring high hardness and wear resistance. The pressure roller is optimized in structure, which can be repaired 2-3 times, reducing production costs.
  • Efficient Transmission System: Equipped with high-precision helical gear direct transmission, the transmission efficiency is over 98%. The main shaft is made of imported alloy steel, ensuring stable operation under high load.
  • Automatic Lubrication System: Independent automatic oil supply system regularly lubricates bearings and gearboxes, ensuring sufficient lubrication and extending the service life of key components.
  • Good Heat Dissipation: Vertical structure design is conducive to heat dissipation in the pelleting chamber. Equipped with dust removal fan to promote air circulation and prevent particle deformation caused by high temperature.

Application Scope

Suitable for various biomass raw materials with moisture content of 10-20%:
  • Woody materials: Sawdust, wood chips, bamboo chips, branches, bark, furniture factory scraps, construction waste wood, etc.
  • Straw materials: Rice husk, peanut shell, sunflower seed shell, corn stover, wheat straw, sugarcane bagasse, etc.
  • Other materials: Traditional Chinese medicine residue, coffee residue, palm shell, etc.
Widely used in: Biomass power plants, wood processing factories, feed factories, fertilizer factories, chemical plants, and rural straw energy recycling projects.

echnical Parameters

Model
Main Motor Power (KW)
Pellet Size (mm)
Production Capacity (t/h)
Overall Dimension (L×W×H, m)
Weight (T)
EWVR450
55
6-12
0.8-1
1.8×1.1×1.5
2.2
EWVR560
90
6-12
1.5-2
2.1×1.3×1.6
4.6
EWVR600
110
6-12
2-2.5
2.3×1.4×1.7
5.8
EWVR650
132
 6-12
2.5-3
2.5×1.5×1.8
7.2


Working Principle

The material enters the pelleting chamber vertically and is evenly distributed on the inner surface of the static ring die by the rotating frame plate. Under the rolling of the rotating pressure roller, the material is extruded through the die holes. During this process, the material undergoes physical changes under high pressure and high temperature, and the fibers are rearranged and bonded to form continuous cylindrical solids. The solids are cut into pellets of specified length by the cutter around the die, and then collected to the discharge port by the material shifting teeth.

Why Choose Us?

  • Professional R&D Team: Customize pelleting solutions according to your raw material characteristics and output requirements.
  • Strict Quality Control: Each machine undergoes rigorous testing before leaving the factory to ensure stable performance.
  • Perfect After-Sales Service: Provide installation guidance, operation training and lifelong technical support.
  • Energy-Saving & Environmental Protection: Help you realize resource recycling and meet environmental protection requirements.
For more information about the product, please contact our sales team. We will reply to you within 24 hours!
