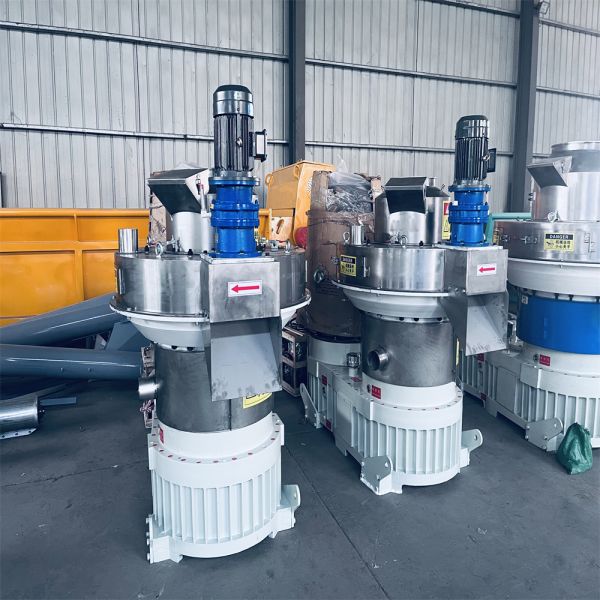

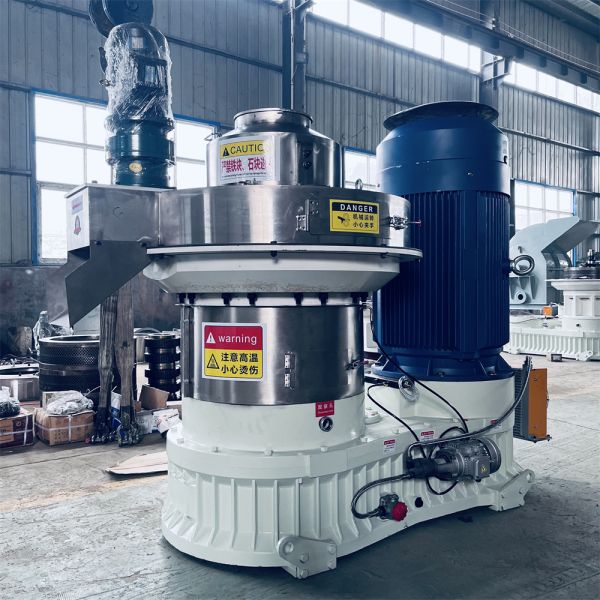

Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Vertical Structure High-Pressure Pelleting Energy Saving Ring Die Wood Pellet Mill for Biomass Fuel
Specifications
Brand Name :
Zhongdebao
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
12000USD --30000USD
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
199 sets per month
Delivery Time :
10-15 work days
Packaging Details :
wooden case package
Description

Brief Introduction:


The Vertical Ring Die Sawdust Pellet Mill is a high - efficiency biomass pellet - forming device, specially optimized for processing sawdust and various wood residues to produce solid fuel pellets.

It combines the advantages of traditional pellet mills, and has outstanding performance in handling low - adhesion, difficult - to - form materials, making it an ideal choice for medium and large - scale pellet production lines in the biomass energy and wood processing industries.

Core Working Principle:

· Raw materials (sawdust, wood shavings, wood chips, etc.) with a moisture content of 10% - 15% ,enter the pelleting chamber by gravity from the top feed inlet.

· The fixed ring die cooperates with the rotating pressure rollers. Under the strong extrusion force, the material is pressed into the die holes, and the lignin in the wood softens and acts as a natural binder to form dense cylindrical pellets.

· The adjustable cutting device cuts the extruded pellets to a preset length , and the finished pellets are discharged from the bottom for collection.


Key Features & Advantages:

Feature Details Benefits
Vertical Structure Vertical feeding, no material arching; fixed ring die + rotating rollers for uniform material distribution Smooth feeding, efficient heat dissipation, stable pelleting quality
High - Pressure Pelleting Double - layer alloy ring die and wear - resistant steel rollers; independent high - pressure lubrication system Suitable for low - adhesion materials (hardwood sawdust, rice husk, peanut shell); long service life of wearing parts
High Efficiency & Energy Saving Direct - drive gearbox transmission; frequency - conversion feeding control High transmission efficiency, low power consumption, 15% - 20% energy saving compared with traditional models
Easy Operation & Maintenance Modular design; quick - change ring die and rollers; automatic lubrication and cooling system Short downtime for maintenance; simple operation, reducing labor costs
CE - Certified Safety Equipped with overload protection, dust removal and noise reduction devices

Application Scenarios:


Biomass Energy: Production of wood pellets for power plants, industrial boilers, household heating, etc.

Wood Processing: Recycling of wood waste (sawdust, wood shavings, branches, bark) from furniture factories and woodworking plants.

Agriculture: Processing of crop straw, rice husk, peanut shell and other agricultural wastes into feed pellets or fuel pellets.


Main Data:

Model

Main Motor Power (KW)

Pellet Size (mm)

Production Capacity (t/h)

Overall Dimension (L*W*H, m)

Weight (T)

EWVR450

55

6-12

0.8-1

1.8*1.1*1.5

2.2

EWVR560

90

6-12

1.5-2

2.1*1.3*1.6

4.6

EWVR600

110

6-12

2-2.5

2.3*1.4*1.7

5.8

EWVR650

132

6-12

2.5-3

2.5*1.5*1.8

7.2

EWVR700

160

6-12

3-3.5

2.6*1.5*2.0

8.0


Customization & Service:

Customizable pellet diameter (6-10 mm) and ring die specification according to customer needs.

Provide complete production line design, including material crushing, drying, conveying, pelleting and packaging.

One - year warranty , lifelong technical support and spare parts supply.


Why Choose Our Ring Die Wood Pellet Machine?

· Professional R&D Team: Custom pelleting solutions tailored to your raw material characteristics and output requirements

· Strict Quality Control: Each machine undergoes rigorous testing before delivery to ensure stable performance

· Comprehensive After-Sales Service: Installation guidance, operation training, and lifelong technical support

· Energy-Saving & Environmental Protection: Helps achieve resource recycling and meet environmental requirements

For more information about this product, please contact our sales team. We will reply to you within 24 hours!
