Specifications
Brand Name :
SHANBAO
Model Number :
SZLH 42
Certification :
ISO 9000 : 2015
Place of Origin :
CHINA
MOQ :
1 piece
Price :
2000-3000USD/Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 PCS/Month
Delivery Time :
15-25 WORKING DAYS
Packaging Details :
Plywood case
Product name :
Pellet die or ring die
Internal size :
Above 250mm
Outer size :
No limit
Hole diameter :
1mm-12mm
Raw material :
Stainless steel
Application :
Pellet mill to extrude the feed
Hardness :
52-55 HRC
Special need :
Support to customize
Description

Introduction

Shanbao Machinery was established in 1989 and started to produce spare parts for feed mills.

As a proven specialist in high-precision and performance pellet dies, we're dedicated to helping you optimize your feed production and maximize efficiency. We deeply understand the die is the most crucial part of the pellet mill since it directly affects the feed’s PDI, size, durability, hardness, colors, and others, and will provide unique service for customers to fully use the pellet mill's throughout.

The advantage of Shanbao Machinery

1. Shanbao Machinery has started to produce spare parts for the feed mills since 1989. And have the most professional experience in the pellet mills. Known all kinds of issues when the pellet mill users may meet. We will help our customers all solve all kinds of issues.

2. We have the most skillful workers who have been producing the parts for over 30 years;

3. We can make special designs for each pellet die to help our customers get higher throughput and less energy cost.

4. We have our own forging plant which helps us develop new raw materials for the ring dies to extend the service lifespan.

5. We have some patent pellet die repair machines to help our customers fully use each pellet die.

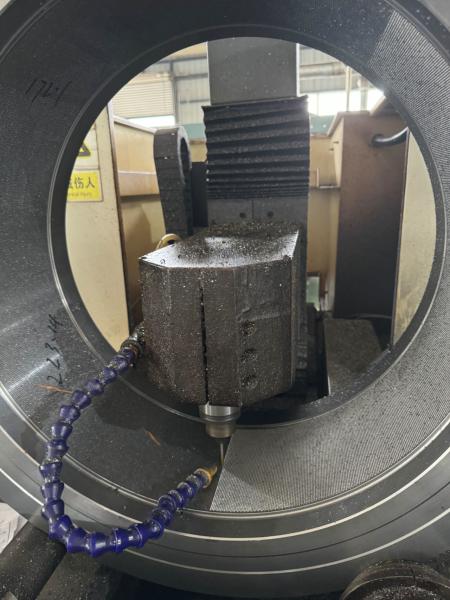

Automatic Chamfering Machine

The Ultimate Solution for Feed Production Pellet Mill SZLH 42 Dies by Shanbao Machinery

Automatic Grinding Machine

The Ultimate Solution for Feed Production Pellet Mill SZLH 42 Dies by Shanbao Machinery

Shanbao Machinery's Pellet Die Application

We have produced many pellet dies for some famous pellet mills, like: CPM, Buhler, Van Aarsen, Andritz, Idah, Matador, PTN, Muyang, SZLH, Famsun, HR,...

CPM CPM305 Buhler Buhler 35 MUZL MUZL 1200
CPM407 Buhler 40 MUZL 1210C
CPM3016-4 Buhler 42 MUZL 1610/C
CPM3016-5 Buhler 42B MUZL 35
CPM3020-6 Buhler 508 MUZL 42
CPM3020-6 Buhler 508E MUZL 42T
CPM3022-6 Buhler 52 MUZL 460
CPM3022-8 Buhler 530 MUZL 550
CPM7726-7 Buhler 660 MUZL 600
CPM7726-9 Buhler 900 MUZL 600TA
CPM7730-8 MUZL 610
CPM7730-10 MUZL 610TW
CPM7936-14

Application Hole Diameter Compression Ratio
Poultry & Livestock 2.5-4mm 1:4-1:16
Fish Feed 2.0-5.0mm 1:12-1:14
Shrimp Feed 0.8-2.0mm 1:18-1:30
Crab Feed 4.5-10.0mm 1:15-1:26
Biomass and Fertilizer 6.0-8.0mm 1:4.5-1:8

YOU WILL GET MORE TO COLLABORATE WITH SHANBAO MACHINERY!

Application

The Ultimate Solution for Feed Production Pellet Mill SZLH 42 Dies by Shanbao Machinery

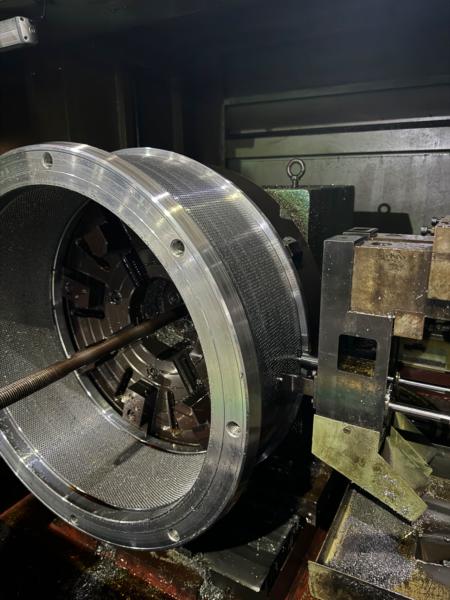

Production procedure

The Ultimate Solution for Feed Production Pellet Mill SZLH 42 Dies by Shanbao Machinery

Packing

The Ultimate Solution for Feed Production Pellet Mill SZLH 42 Dies by Shanbao Machinery

Exhibition

The Ultimate Solution for Feed Production Pellet Mill SZLH 42 Dies by Shanbao Machinery
