ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder
Specifications
Brand Name :
SANBI
Model Number :
SJ-45*55/1000
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
one set
Price :
USD 45000-50000 ONE SETS
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
30 sets one month
Delivery Time :
within 30 days received deposit
Packaging Details :
wooden packages
Description

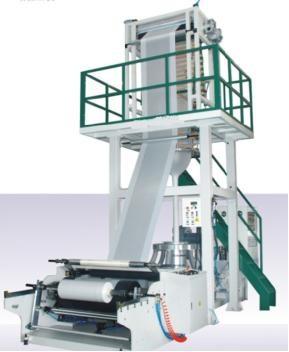

ABA Film Blowing Machine lager Capacity 50Kw Automatic double winder

Use:


The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.

Main Technical Variables :

Model

ABA 1000

Screw Diameter

Ф45×1 Ф55×1

Screw Ratio L/D

30:1

Screw Speed

15-120r/min

Main Motor Power

15Kw×2 18.5KW

Extrusion Output

100kg/h

Range of Die

Ф100

Single-sided Thickness of Film

0.01-0.10mm

Max. Folding Width of Film

800mm

Electric Total Capacity

50Kw

Overall Dimension

5000×3500×5000mm

Weight of Machine

4T

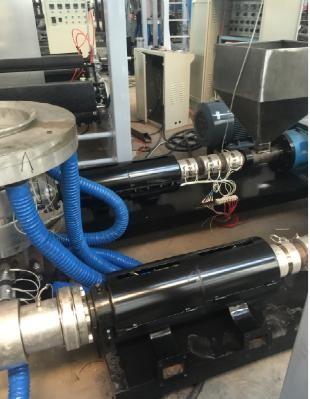

Extruder

Screw Dia. (mm): ф45×1 ф50×1

Screw & Barrel L/D Ratio: 30: 1

Barrel: 38 CRMOALA ALLOY

Barrel Heater Capacity (Kw): 10*3
Barrel Auto Thermo Control: 4 Points

Cooling Blower: 3kw

Driving Motor: 15Kw×2 (Siemens Motors with inverter type)

Screen Changer: manual type

Screen Changer Heater Capacity (Kw): 3

Dosing system

Gravimetric blender 2 (2 materials will or master batch will be mixed fixed % on each screw feeder),

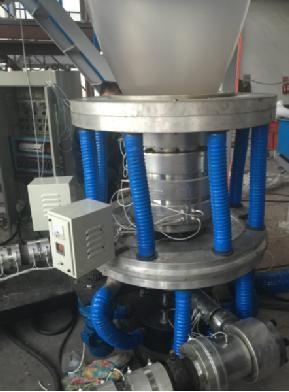

Die:

Rotary die device

Die Dia. (mm): φ120

Die Heater Capacity (Kw): 10

Die Auto Thermo Control: 1 Point

Air Ring: 1 Set

Bubble Basket: Hexagon Type

Take-up Unit:

To be possible to moving the tower 2.2m

Pinch Roller- Embossing Roller

Take-up Motor with Inverter Control: AC: 1.5kw

AUTO Winding Unit

EPC (Edge position control)

Hydraulic unloading device

Triangle folder

Slit and seal knife,

Automatic double winder,

Tension control system

Max. Width (mm): 1200

Max. Wind-up roll dia. (mm): φ 1000

Winding Motor: 2.2KW motor with inverter *2pc

with autotension control and inverter

Flat cutting knives and film opening knives

Air shfts= 4 pcs

Banana rollers = 2 pcs 2

Rewinding Speed: 10-80m/min

2.Film Blowing Machine spare part list

01

filter

1 M

08

electric –testing pen

1 pcs

02

magetic stone

1 pcs

09

hexageonic wrench

1 pcs

03

air pipe

1 pcs

10

glove

2 pairs

04

8-10 open and wrench

1 pcs

11

Steady Bar

1 pcs

05

12-14 open and wrench

1 pcs

12

Mould Pipe

1 pcs

06

14-17 open and wrench

1 pcs

13

electric-thermal couple (E)

2 pcs

07

17-19open and wrench

1 pcs

14

screw heater

1 pcs
