Specifications
Brand Name :
SANBI
Model Number :
SJ-B
Certification :
CE ISO9001
Place of Origin :
ZHEJIANG, CHINA
MOQ :
ONE SET
Price :
USD 8500-15000
Supply Ability :
30 SETS ONE MONTH
Delivery Time :
15 WORKDAYS
Packaging Details :
WOODEN PACKING
RAW MATERIAL :
PE
WIDTH :
According to the customer requirement
Thickness :
according to the customer requirement
output :
different model have different output
Description

50MM 11KW LDPE / HDPE Film Blowing Machine With Double Winder

1. Main technical variables:

Model

SJ-B50

Screw Diameter

50MM

Screw Ratio

L/D30:1

Screw Speed

10-100r/min

Power of Main Motor

11KW

Power of traction main motor

1.5kw

Heating power(kw)

10kw

Main Output

35kg/h

Max.Folding Width of Film

100-600mm

Single-sided Thickness of Film

0.008-0.1mm

Overall Dimensions

5500x2000x3800mm

Suitable Material: HDPE/LDPE

Max.Folding Width of Film (mm): 600

Thickness of Film (mm): HDPE:0.01-0.07/LDPE :0.015-0.1

Max. Output (Kg/Hr.): 35kg/h

Extruder

Screw Dia. (mm): φ 50

Screw & Barrel L/D Ratio: 30: 1

Screw & Barrel material: 38 CRMOALA

Barrel Auto Thermo Control: 3 Points

Cooling Blower : 1.5kw

Gear box: water cooling reducer, hard tooth surface use 133# type

Driving Motor: 11kw

Screen Changer: manual type

Screen Changer Heater Capacity (Kw): 1.5

Die:

Die Dia. (mm): HDPE φ50 and LDPE φ80

Rotation Die head

Die Heater Capacity (Kw): 3

Die Auto Thermo Control: 1 Points

Air Ring: 620mm

Bubble Basket: Hexagon Type

Folding devices ( from the double sides ) ,

max.folding : The 10cm

Take-up Unit:

To be possible to moving the tower 1.5m

Pinch Roller- Embrorosing Roller

Take-up Motor with Inverter Control: AC 1.5kw

Winding Unit

Double winder (with banana roller, cold knifes for cutting edges of the film and middle of film 3pcs )

Max. Width (mm): 600

Max. Wind-up roll dia. (mm): φ 800

Winding Motor: 10Kg/Nm with moment motor

Rewinding Speed: 5-50m/min

2. Optional equipment

1. pneumatic cylinder

USD 300

2. Air shafts

USD 300/2pcs

3. Auto loader

USD 500

4. Up and down

USD 500

5. 2 kw 600mm digital corona treater

USD 800

3.Film Blowing Machine spare part list

01

filter

1 M

08

electric –testing pen

1 pcs

02

magetic stone

1 pcs

09

hexageonic wrench

1 pcs

03

air pipe

1 pcs

10

glove

2 pairs

04

8-10 open and wrench

1 pcs

11

Steady Bar

1 pcs

05

12-14 open and wrench

1 pcs

12

Mould Pipe

1 pcs

06

14-17 open and wrench

1 pcs

13

electric-thermal couple (E)

2 pcs

07

17-19open and wrench

1 pcs

14

screw heater(stainless steel)

1 pcs

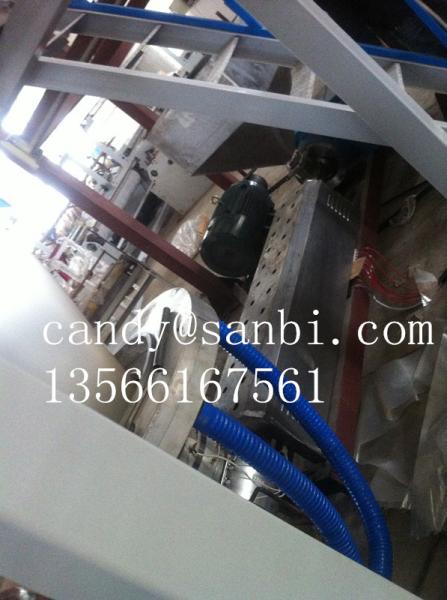

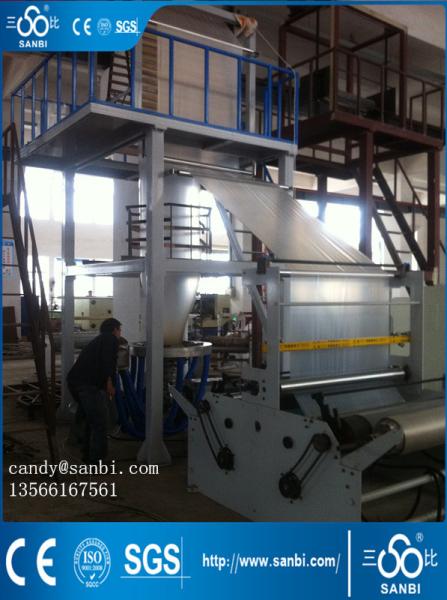

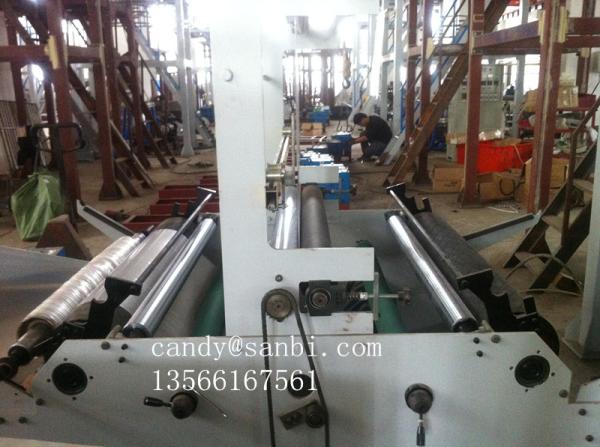

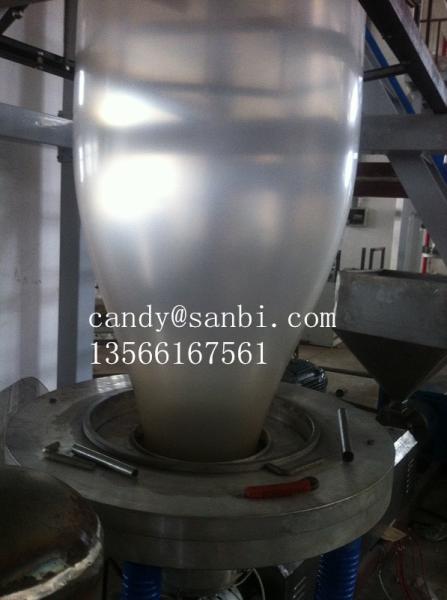

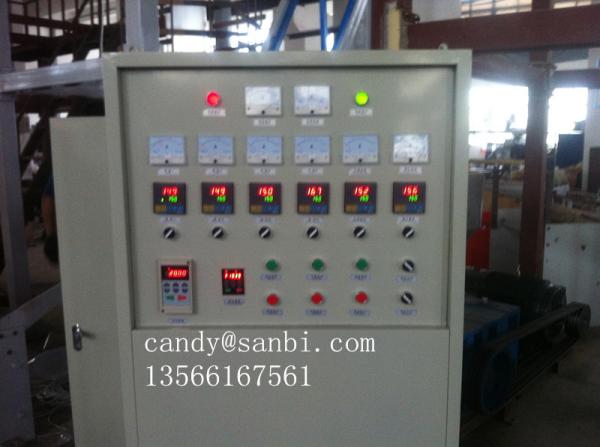

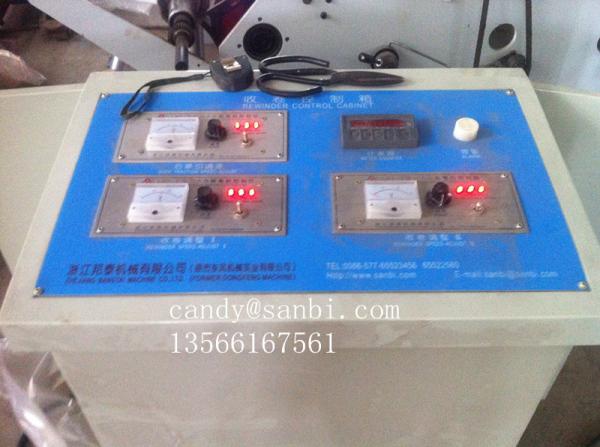

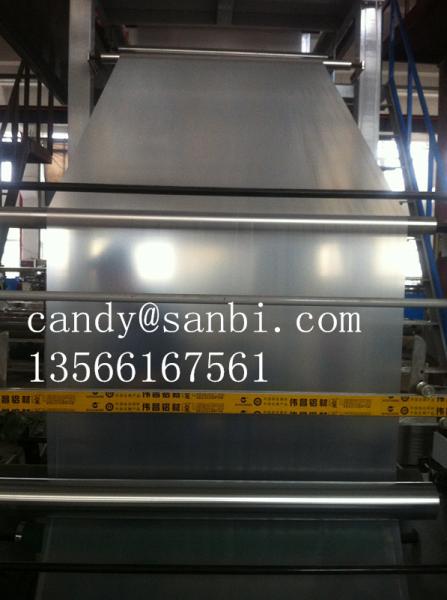

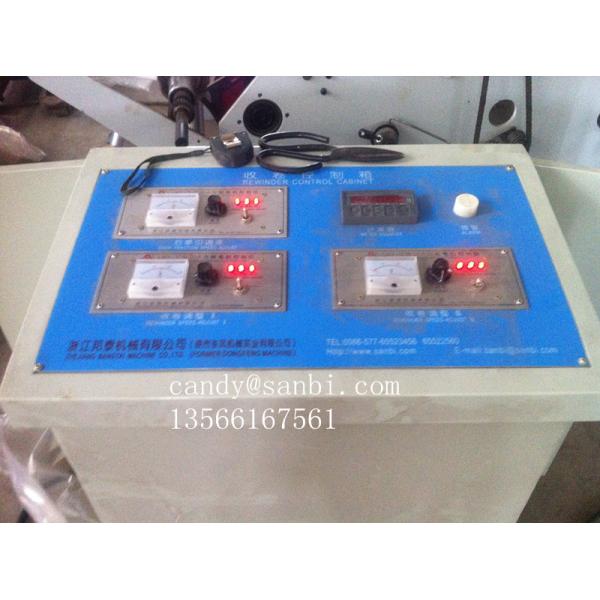

  • Detail picture of machine:

50MM 11KW LDPE / HDPE Film Blowing Machine With Double Winder

50MM 11KW LDPE / HDPE Film Blowing Machine With Double Winder50MM 11KW LDPE / HDPE Film Blowing Machine With Double Winder50MM 11KW LDPE / HDPE Film Blowing Machine With Double Winder
