Specifications
Brand Name :
SANBI
Model Number :
SJ-A70
Certification :
CE , ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25 sets / month
Delivery Time :
around 30 days
Packaging Details :
standard wooden package
Raw Material :
HDPE,LDPE,LLDPE
Max folding width :
1200mm
Machine type :
Extrusion Blowing Machine
Usage :
Packing bags
Description

Packing bags PE Film Blowing Machine Set With Side Folding Device

Description:

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

OPTIONAL EQUIPMENT:

1) AUTO LOADER
2) CAST ALUM HEATER
3) AIR SHAFT
4) DIE ROTARY DEVICE
5) BOUBLE SIDES WINDER
6) UP AND DOWN

7) PNEUMATIC DEVICE

Main Technical Parameter:

Model A50 A55 A65 A70
Diameter of screw φ50 φ55 φ65 φ70
Rcduced diameter of film(mm) 100-600 200-800 300-1000 400-1200
Single-face Thickness of film(mm) 0.01-0.10 0.01-0.10 0.01-0.10 0.01-0.10

Max.Extrusion(Kg/h)

35

50

65

80
L/D 28:1 28:1 28:1 28:1
Power of main moto(kw) 7.5-11 11-15 18.5-22 30
Power of Tracion main moto(kw) 1.1 1.1 1.5 1.5
Heating Power(kw) 11 13 19 21

Outline diameter(L x W x H) (mm)

 4800 x 1900 x 3500 5500 x 2100 x 3800 6500 x 2300 x 4200 6500 x 2500 x 5150
Weight(T) 1.5T 2T 2.3T 2.8T

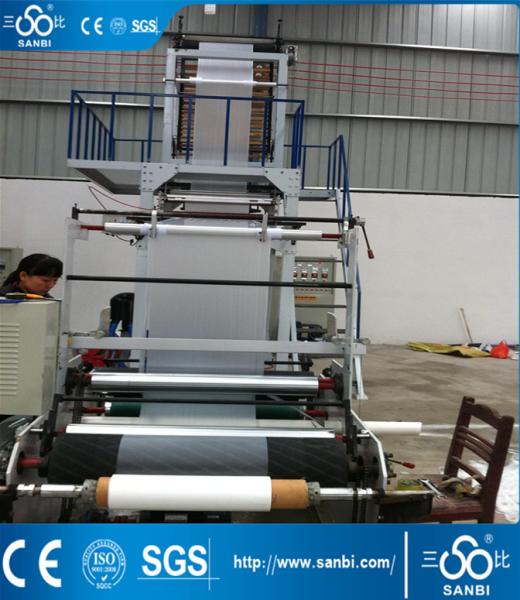

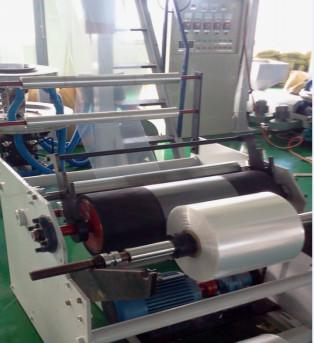

Picture :

Packing bags PE Film Blowing Machine Set With Side Folding Device

Packing bags PE Film Blowing Machine Set With Side Folding Device

Packing bags PE Film Blowing Machine Set With Side Folding DevicePacking bags PE Film Blowing Machine Set With Side Folding Device
