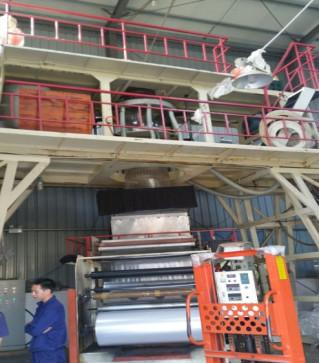

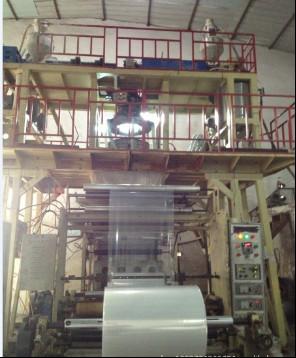

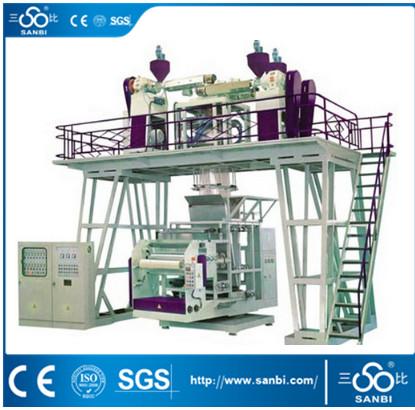

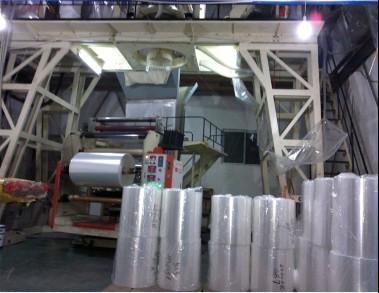

High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
Specifications
Brand Name :
SANBI
Model Number :
SJ-50*3/ 60*3
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 sets
Price :
30000-80000usd
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
30 sets one month
Delivery Time :
within 30 days
Packaging Details :
Wooden package
MATERIAL :
PP
Application :
Film
Blow Moulding Type :
Extrusion Blow Moulding
Automatic :
No
Description

Three Layers CPP Plastic Film Blowing Machine

Specifications:

Model

SJ-60*3

Screw Diameter

60MM

Screw Ratio

L/D30:1

Screw Speed

10-100r/min

Power of Main Motor

18.5KW*3

Power of traction main motor

2.2kw

Heating power(kw)

45kw

Main Output

150kg/h

Max.Folding Width of Film

400-1200mm

Single-sided Thickness of Film

0.3-0.1mm

Overall Dimensions

7200x3200x5500mm

Description:

  1. The machine is suitable for producing PP. It is widely used for packing food, garment, textile, daily necessaries and industrial product.
  2. die head can be turned in 360,it can strengthen the tension and evenness degree of film .
  3. screw and cylinder are all made of 38crmoal alloy, and treated by nitrogen. It has an advantage of great thickness, corrosion resistance and endurance.
  4. die head has been chromized, it’s advantage of screw core structure, melting material extruding evenly, and blowing film smoothing.
  5. cooling equipment is a labyrinth blow pump, which has good effect. Especially it adopts the recycling cooling water system to ensure the best transparent effect.
  6. discharging equipment adopts pressing braking winding equipment and central winding equipment, and it adopts torque motor to adjust, has the merits of smooth film, convenience operation.

Optional parts:

auto loader

rotary die head

double winders

air shaft

corona treatment

Applications:

The machine is suitable for producing PP. It is widely used for packing food, garment, textile, daily necessaries and industrial product.

High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)

High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)
