High Speed T-shirt Bag Making Machine Full Automatic with PLC control
High Speed T-shirt Bag Making Machine Full Automatic with PLC control
Specifications
Place of Origin :
ZHEJIANG OF CHINA
Brand Name :
SANBI
Certification :
CE,ISO9001:2000,SGS
Model Number :
DFHQ-400*2/450*2
MOQ :
1 SET
Packaging Details :
Standard export package (wooden pallet/ box/nude packing)
Delivery Time :
20-30 workingdays
Payment Terms :
T/T. L/C. WESTER UNION etc.
Supply Ability :
20SETS PER MONTH
Description

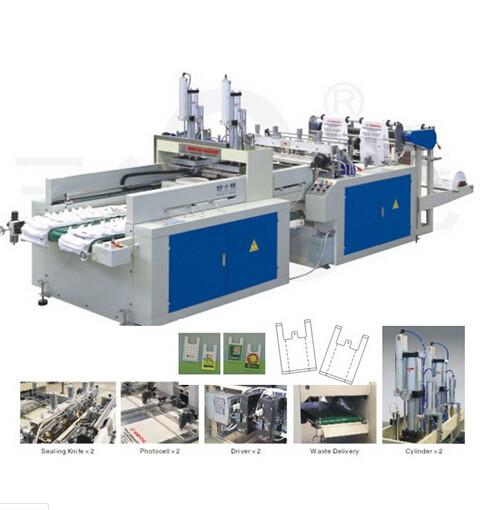

High Speed T-shirt Bag Making Machine Full Automatic with PLC control

Characteristics :

1.Full automatic

2.PLC control

3.Double servo ( step ) motor

4.With auto punching

Technical Parameter :

Model DFHQ-400X2 DFHQ-450X2
Max. Bag-making width 300mmX2 350mmX2
Max. Bag-making length 600mm 600mm
Bag-making thickness 0.015-0.035mm 0.015-0.035mm
Bag-making speed 140-200pcs/minX2 140-200pcs/minX2
Air pressure 5kg/cm2 5kg/cm2
Total Power 7kw 9kw
Weight of machine 1400kg 1600kg
Overall dimensions 6000X1400X1600mm(L X W X H) 6000X1400X1600mm(L X W X H)

Description :

This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.

High Speed T-shirt Bag Making Machine Full Automatic with PLC control

High Speed T-shirt Bag Making Machine Full Automatic with PLC control
