Wear Resistance Injection Molding Peek Balls
Wear Resistance Injection Molding Peek Balls
Wear Resistance Injection Molding Peek Balls
Wear Resistance Injection Molding Peek Balls
Specifications
Brand Name :
oem odm
Place of Origin :
China
MOQ :
Negotiated
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
10000PCS
Delivery Time :
20 days after 2D 3D confirmed
Packaging Details :
Woodencase for packaging mold & Carton Box for packaging products
product name :
PEEK Part
Plastic Material :
PEEK
Precision :
0.005mm
Production Capacity :
10000PCS
Specification :
Actual packaging
Transport Package :
CTN, Plt and Others
Description

Wear Resistance Injection Molding Peek Balls

Basic Info.

Model NO.
PEEK
Material
Peek
Color
Black, Nature
Continuous Use Temperature
260
Diameter
3mm, 8mm, 9mm or Customized
Plastic Modling Type
Injection
Trademark
Shenzhen
Transport Package
Standard Export Package
Origin
Shenzhen Guangdong

Product Description

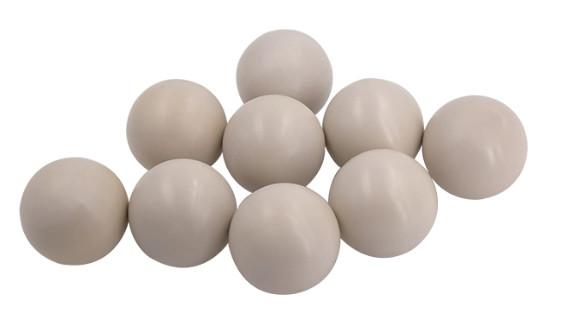

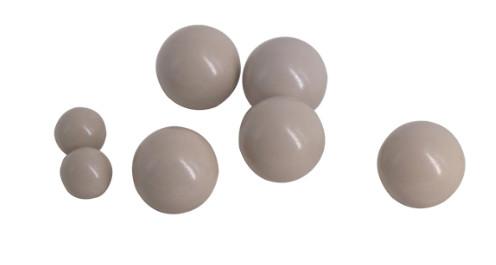

1. Product Name: PEEK balls
2. Material: PEEK
3. Diameter: 3mm, 8mm, 9mm or others
4. Color: Natural, black
5. Manufacturing technique: Injection Molding
6. Certification: ISO9001, SGS, FDA, ROHS
7. Samples: Available


PEEK Material Performance

PEEK is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures. PEEK is used to fabricate items used in demanding applications, including bearings, piston parts, pumps, HPLC columns, compressor plate valves, and cable insulation. It is one of the few plastics compatible with ultra-high vacuum applications.

PEEK5600G Series Data Sheet
Item Test Standard Unit PEEK5600G PEEK5600GF30 PEEK5600CF30 PEEK5600LF30
Color Natural or Black Natural or Black Black Black
Density ISO 1183 g/cm3 1.3±0.01 1.5±0.01 1.4±0.01 1.43±0.01
Water Abs. (25ºC.24Hrs) ISO 62 % 0.5 0.11 0.06 0.06


Mould shrinking percentage		 3mm,170ºC, Flow direction % 1.2 0.4 0.1 0.3
Perpendicular to flow direction % 1.5 0.8 0.5 0.5
Melting point DSC ºC 343 343 343 343
Distortion temperature ASTM D648 ºC 163 315 315 293
Continuous using temperature UL 74685 ºC 260 260 260 260
Coefficient of thermal expansion ASTM D696 10-5ºC 4.7 2.2 1.5 2.2
Tensile strength(23ºC) ISO527-2/1B/50 Mpa 100 155 220 134
Tensile elongation(23ºC) ISO527-2/1B/50 % 34 2 1.8 2.2
Bending strength(23ºC) ISO 178 Mpa 163 212 298 186
Compressive strength(23ºC) ASTM D695 Mpa 118 215 240 150
Lzod impact strength ( no gap) ISO 180/U KJm-2 No crack 51 46 32
Rockwell hardness ASTM D785 99 103 107 102
Flammable level UL 94 V-0 @mm 1.5 1.5 1.5 0.75
Dielectric strength IEC 248 KV/mm 1.8 1.9
Dielectric constant IEC 250 3.2 3.3
Surface resistivity Ω 1015Ω 1015Ω 3×106Ω 5×106Ω
Friction coefficient μ 0.30-0.38 0.38-0.46 0.28 0.18
If need other parameter, please contact us!
PEEK5600G: 100%PEEK
PEEK5600GF30: PEEK+30%Glass fiber

PEEK5600CF30: PEEK+30%Carbon fiber

PEEK5600LF30: PEEK+(10% Carbon fiber+10% Graphite+10% PTFE)

FAQ

Q: How long is your delivery time?

A: We evaluate the difficulty and quantity of the product and then give it to the customer.

Q: Do you accept customized order ?

A: Sure, satisfying your need is our goal, just sent inquiry details and we will try our best to assist you.
