High Precision Digital Multimeter With Auto Range And Temperature Measurement
High Precision Digital Multimeter With Auto Range And Temperature Measurement
Specifications
Brand Name :
PEAKMETER
Model Number :
PM8233D
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
150,000 Pcs Per Month
Delivery Time :
5-40 work days
Packaging Details :
Product Size 140mm×67mm×30mm Product Weight Approx. 110g
Function 1 :
Diode Test
Frequency Measurement :
0~20kHz
Function 2 :
Auto Range
Resistance Measurement :
200Ω~20MΩ
Function 3 :
Maxmum Value hold
Product Name :
Auto Range Digital Multimeter
Description

High Precision Digital Multimeter With Auto Range And Temperature Measurement

Features of Auto Range Digital Multimeter

  • Auto Ranging DMM, that full scale is 2000 counts
  • Max value hold function
  • Low Battery indication
  • Over Load protection
  • Data Hold function
  • Auto Power Off
  • Back Light

SPECIFICATIONSRANGEACCURACY
DC Voltage200mV/2V/20V/200V±(0.5%+2)
600V±(0.8%+2)
AC Voltage2V/20V/200V±(1.0%+3)
600V±(1.2%+3)
DC Current200μA/2mA/20mA/200mA±(1.5%+3)
AC Current200μA/2mA/20mA/200mA±(1.5%+4)
Resistance200Ω/2kΩ/20kΩ/200kΩ/2MΩ±(0.8%+2)
20MΩ±(1.0%+2)
Temperature-20℃～1000℃±(3.0%+3)
0℉～1800℉±(3.0%+3)
FEATURE
Display2000 Counts
Auto range√
Data Hold√
Back light√
Diode test√
Continuity√
Maxmum Value hold√
GENERAL
Power SupplyDC9V 6F22 Battery
Weightc110g
Size140mm×67mm×30mm
Safety Rating

EN61010-1,EN61010-2-033, EN61326,CAT.Ⅲ 600V

Description of Auto Range Digital Multimeter

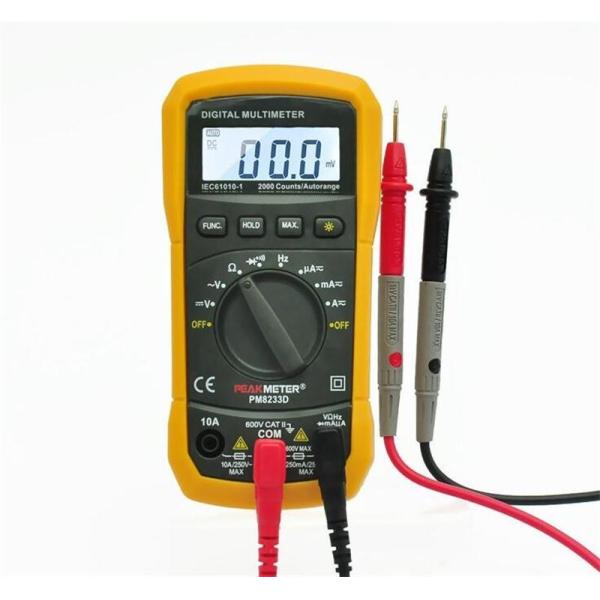

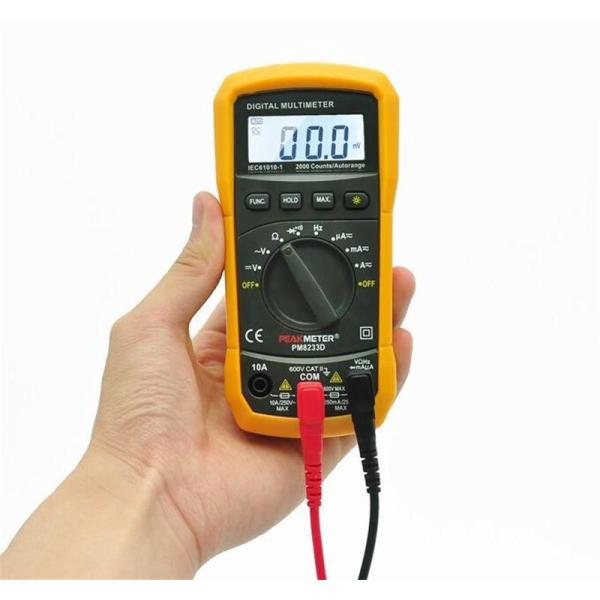

PM8233D is a handheld and battery operated Digital Multimeter with multi-function. This Meter is designed to meet IEC61010-1 & CAT Ⅲ 600V over voltage category and double insulation. It can be used to measure AC & DC voltage, AC & DC current, resistance, frequency and it also has MAX value hold function, data hold function.

  • Over load protection: Used the PTC protection circuit for resistance, frequency measurement
  • Auto Power Off: If the meter is idle for 15 minutes, the meter automatically turns the power off.
